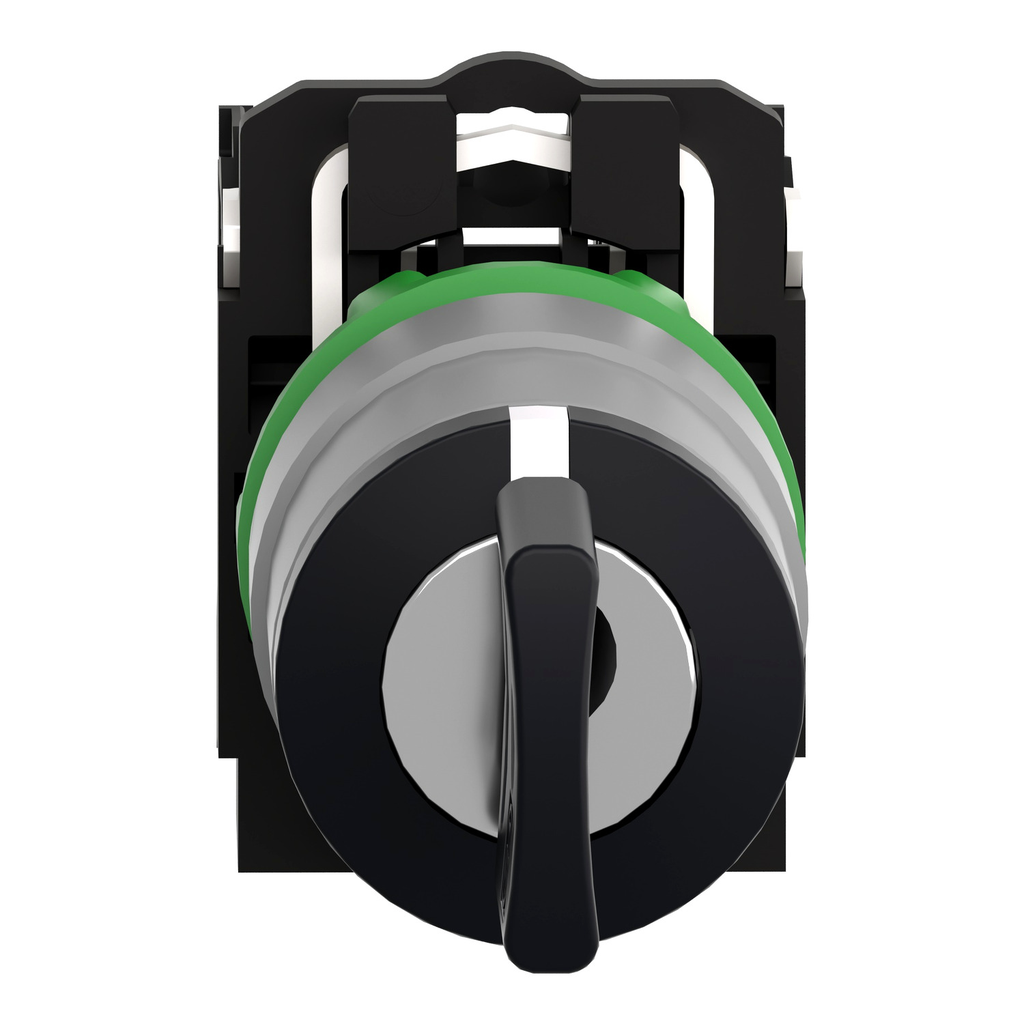

Selector switch, Harmony XB5, key 455, 3 positions, stay put, key release cp grey

SELECTOR SWITCH, HARMONY XB5,

SQDXB5AG33C0 XB5AG33C0 3606489758356
52.61 / EA
http://schema.org/OutOfStock
Mayer-DDS-Selector switch, Harmony XB5, key 455, 3 positions, stay put, key release cp grey-1
  • Bezel Material: Plastic Colour Plated Grey, Plastic Colour Plated Grey
  • Depth: 96 mm
  • Head Type: Standard
This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Features
  • Specifications
This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69, making it ideal for operation in harsh environments.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=XB5AG33_NEW_2024, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005128_3D-CAD&p_File_name=MCADID0005128_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005128_3D-CAD&p_File_name=MCADID0005128_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005128_3D-CAD&p_File_name=MCADID0005128_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005128_3D-CAD&p_File_name=MCADID0005128_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005128_3D-CAD&p_File_name=MCADID0005128_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005128_3D-CAD&p_File_name=MCADID0005128_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005128_3D-CAD&p_File_name=MCADID0005128_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005128_3D-CAD&p_File_name=MCADID0005128_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005128_3D-CAD&p_File_name=MCADID0005128_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005128_3D-CAD&p_File_name=MCADID0005128_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005128_3D-CAD&p_File_name=MCADID0005128_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005128_3D-CAD&p_File_name=MCADID0005128_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005128_3D-CAD&p_File_name=MCADID0005128_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005128_3D-CAD&p_File_name=MCADID0005128_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005128_3D-CAD&p_File_name=MCADID0005128_2D-top.dxf
  • Conformance Attributes
    • Product Certifications : BV, UL, CSA, DNV, LROS (Lloyds register of shipping)
    • Standards : JIS C8201-5-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-1, CSA C22.2 No 14, UL 508, JIS C8201-1
  • Complementary Attributes
    • Ie Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    • Ui Rated Insulation Voltage : 600 V 3)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Bezel Material : plastic colour plated grey, plastic colour plated grey
    • Customizable : 1, no
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • Electrical Reliability : λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
    • Shape Of Screw Head : cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Terminals Description Iso N 1 : (13-14)NO, (13-14)NO
    • Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    • Ie Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    • Medium Desc : Selector switch, Harmony XB5, key 455, 3 positions, stay put, key release cp grey
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : Y
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308009EN
    • Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Compatibility Code : XB5
    • Contact Operation : slow-break
    • Contacts Material : silver alloy (Ag/Ni)
    • Contacts Type And Composition : 2 NO
    • Contacts Usage : standard contacts
    • Device Short Name : XB5
    • Electrical Shock Protection Class : class II conforming to IEC 60536
    • Gcr Bridge : XB5AGCUST01
    • Head Type : standard
    • Key Withdrawal Position : center
    • Mechanical Durability : 1000000 cycles
    • Mounting Diameter : 22.5 mm
    • Operator Position Information : 3 positions +/- 45°
    • Operator Profile : key switch
    • Positive Opening : without
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : selector switch
    • Product Repair Index : A
    • Protective Treatment : TH
    • Range Of Product : Harmony XB5
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Returnability : Yes
    • Shape Of Signaling Unit Head : round
    • Short Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
    • Sustainable Packaging : Yes
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Torque Value : 0.14 N.m NO changing electrical state
    • Type Of Keylock : key 455
    • Type Of Operator : stay put
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
    • Ith Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
    • Contacts Composition : 2 NO
    • Type Of Operator 3 Type Of Operator : stay put
    • Pep Code : ENVPEP2308009EN
    • Height Nominal : 42 mm
    • Width Nominal : 30 mm
  • Environment Attributes Main
    • Ip Degree Of Protection : IP66 IEC 60529, IP67
    • Nema Degree Of Protection : UL type 4X/13, NEMA 13, NEMA 4X
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2308009EN
    • Environmental Disclosure : ENVPEP2308009EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2308009EN
