Complete body/contact assembly, Harmony XB4, single contact block with body/fixing collar 1NC plug in connector

COMPLETE BODY/CONTACT ASSEMBLY

SQDZB4BZ1024 ZB4BZ1024 3389110889444
22.75 / EA
http://schema.org/OutOfStock

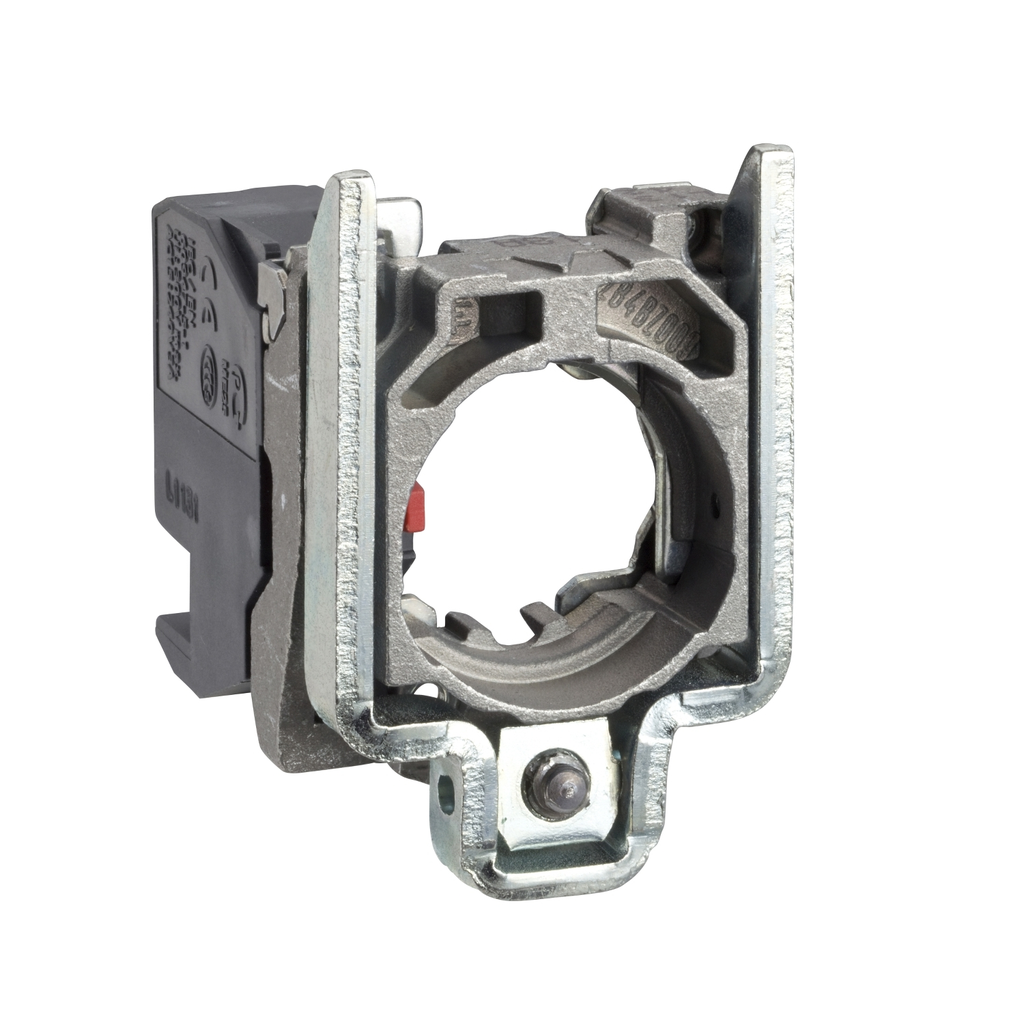

Mayer-DDS-Complete body/contact assembly, Harmony XB4, single contact block with body/fixing collar 1NC plug in connector-1
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL
  • Contact Material: Silver Alloy
  • Net Weight: 0.05 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
QTY
  • Specifications
  • Environment
    • Product Certifications : CSA || BV || DNV || UL || LROS (Lloyds register of shipping) || GL
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || UL 508 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP20 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1808008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Contacts Usage : standard contacts
    • Terminals Description Iso N°1 : (11-12)NC
    • Operating Force : 2 N NC changing electrical state
    • Short-Circuit Protection : 4 A cartridge fuse gG EN/IEC 60947-5-1
    • Operating Travel : 1.5 mm NC changing electrical state) || 4.3 mm total travel)
    • Contacts Material : silver alloy (Ag/Ni)
    • Positive Opening : with EN/IEC 60947-5-1 appendix K
    • [Ith] Conventional Free Air Thermal Current : 10 A EN/IEC 60947-5-1
    • Net Weight : 0.05 kg
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV EN 60947-1
    • Cad Overall Height : 47 mm
    • Electrical Durability : 10000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
    • [Ui] Rated Insulation Voltage : 250 V 3)EN 60947-1
    • [Ie] Rated Operational Current : 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
    • Mechanical Durability : 5000000 cycles
    • Electrical Reliability : λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
    • Cad Overall Width : 30 mm
    • Cad Overall Depth : 37 mm
  • Specifications
    • Range Of Product : Harmony XB4
    • Contact Block Type : single
    • Product Or Component Type : complete body/contact assembly
    • Fixing Collar Material : zamak
    • Head Type : standard
    • Connections - Terminals : plug-in connector
    • Contacts Type And Composition : 1 NC
    • Sale Per Indivisible Quantity : 1
    • Contact Operation : slow-break
    • Device Composition : body || fixing collar
    • Device Short Name : ZB4
