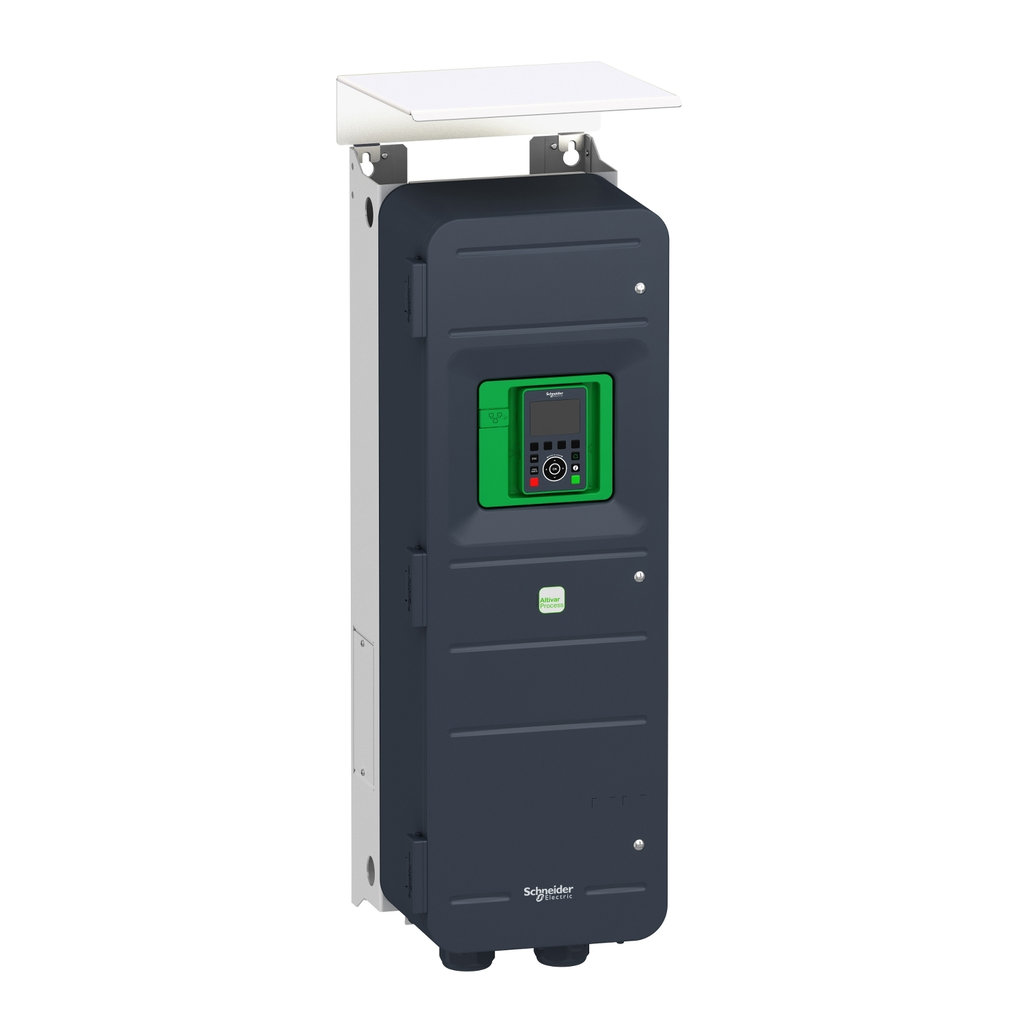

variable speed drive, Altivar Process ATV600, ATV650, 45kW, 400...480V, IP55

DRIVE INVERTER VFD 3PH.48-63HZ

SQDATV650D45N4U ATV650D45N4U 3606480906909
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-variable speed drive, Altivar Process ATV600, ATV650, 45kW, 400...480V, IP55-1
  • Connection Type: RJ45 On The Remote Graphic Terminal)Modbus Serial, RJ45 On The Remote Graphic Terminal)Ethernet/Modbus TCP
  • Depth: 340 mm
  • IsSustainable: Yes
  • Operating Position: Vertical +/- 10 Degree
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Port Protocol : Modbus TCP, Modbus serial, Ethernet
  • Conformance Attributes
    • Product Certifications : ATEX INERIS, Bureau Veritas, ABS, DNV-GL, UL, TÜV
    • Standards : IEC 61800-3 environment 1 category C2, EN/IEC 61800-3 environment 2 category C3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1, environment 1 category C2 IEC 61800-3, environment 2 category C3 IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1, UL 508C
  • Complementary Attributes
    • Maximum Horse Power Rating : 50 hp heavy duty, 60 hp normal duty
    • Maximum Switching Current : relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC
    • Maximum Thdi : <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12
    • Maximum Transient Current : 111.8 A 60 s heavy duty), 96.8 A 60 s normal duty)
    • Brake Chopper Integrated : false
    • Maximum Associated Fuse Rating : 160.0 A
    • Maximum Input Current Per Phase : 79.8 A
    • Maximum Output Frequency : 500 kHz
    • Maximum Output Voltage : 480.0 V
    • Minimum Switching Current : relay output R1, R2, R3 5 mA 24 V DC
  • Important Information Attributes
    • Product Contributes To Saved And Avoided Emissions : YES_SSI2, Yes
    • Persona Type Ids : EU, OM, OM8, SI
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    • Apparent Power : 49.1 kVA 480 V heavy duty), 57.4 kVA 480 V normal duty)
    • Asynchronous Motor Control Profile : constant torque standard, optimized torque mode, variable torque standard
    • Connector Type : RJ45 on the remote graphic terminal)Modbus serial, RJ45 on the remote graphic terminal)Ethernet/Modbus TCP
    • Electrical Connection : line side screw terminal 35...50 mm², motor screw terminal 35...50 mm², control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16
    • Electromagnetic Compatibility : radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    • EMC Filter : integrated 50 m IEC 61800-3 category C2, integrated 150 m IEC 61800-3 category C3
    • Frequency Resolution : analog input 0.012/50 Hz, display unit 0.1 Hz
    • Insulation Resistance : > 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth
    • Line Current : 69.1 A 480 V normal duty), 67.1 A 380 V heavy duty), 59 A 480 V heavy duty), 79.8 A 380 V normal duty)
    • Linearity Error : AO1, AO2 +/- 0.2 % analog output, AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
    • Local Signalling : 3 LEDs (dual colour) for embedded communication status, 4 LEDs (dual colour) for communication module status, 1 LED (red) for presence of voltage, 3 LEDs for local diagnostic
    • Motor Power KW : 37 kW heavy duty), 45 kW normal duty)
    • Motor Slip Compensation : adjustable, can be suppressed, not available in permanent magnet motor law, automatic whatever the load
    • Noise Level : 69.7 dB 86/188/EEC, 69.7 dB
    • Option Card : slot A communication module, PROFINET, slot A communication module, DeviceNet, slot A communication module, Modbus TCP/EtherNet/IP, slot A communication module, CANopen daisy chain RJ45, slot A communication module, CANopen SUB-D 9, slot A communication module, CANopen screw terminals, slot A/slot B digital and analog I/O extension module, slot A/slot B output relay extension module, slot A communication module, Ethernet IP/Modbus TCP/MD-Link, communication module, BACnet MS/TP, communication module, Ethernet Powerlink, slot A communication module, Profibus DP V1
    • Permissible Temporary Current Boost : 1.5 x In 60 s heavy duty), 1.1 x In 60 s normal duty)
    • Product Destination : asynchronous motors, synchronous motors
    • Protection Type : safe torque off drive, motor phase break drive, thermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive
    • Sampling Duration : 5 ms +/- 1 ms DI5, DI6) - discrete input, 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input, 10 ms +/- 1 ms AO1) - analog output, 2 ms +/- 0.5 ms DI1...DI4) - discrete input
    • Supply : internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection, internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection, external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection
    • Switching Frequency : 4...12 kHz with derating factor, 2...12 kHz adjustable
    • Synchronous Motor Control Profile : synchronous reluctance motor, permanent magnet motor
    • Transmission Rate : 10, 100 Mbits, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
    • Vibration Resistance : 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6
    • Ue Rated Operational Voltage2 : 380...480 V 45 kW 60 hp normal duty, 380...480 V 37 kW 50 hp heavy duty
    • Us Rated Supply Voltage2 : 380...480 V, 380...480 V - 15...10 %
    • Environmental Class During Operation2 : class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
    • Environmental Class During Storage2 : class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
    • Environmental Class During Transport2 : class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
    • Carbon Footprint Of The Distribution Phase A4 : 8.8509590909, 9 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 10.7296636364, 11 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 11 kg CO2 eq., 11.164130303
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 566 kg CO2 eq., 566.0851212121
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 35 776 kg CO2 eq., 35775.6951984711
    • Environmental Class During Operation3 : class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
    • Environmental Class During Storage3 : class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
    • Environmental Class During Transport3 : class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
    • Ue Rated Operational Voltage5 : 380...480 V 45 kW 60 hp normal duty, 380...480 V 37 kW 50 hp heavy duty
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Device Type : Variable speed drive - VSD Compacts
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 10 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1506001EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Return Indicator : Y
    • Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • 1 Phase Low Current Possible : false
    • 4 Quadrant Operation Possible : false
    • Application In Domestic And Commercial Area Permitted : false
    • Base Load Current At High Overload : 74.5 A
    • Base Load Current At Low Overload : 88.0 A
    • Braking To Standstill : by DC injection
    • Capacity Of Dc Link : 3000.0 µF
    • Computer Port : true
    • Data Format : 8 bits, configurable odd, even or no parity
    • Design Of Frequency Changer : U converter
    • Device Short Name : ATV650
    • Enclosure Mounting : wall mounted
    • Exchange Mode : half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
    • Housing Material : sheet steel
    • Isolation : between power and control terminals
    • Marking : CE
    • Maximum Associated Fuse Rating : 160.0 A
    • Maximum Input Current Per Phase : 79.8 A
    • Method Of Access : slave Modbus TCP
    • Mounting Mode : wall mount
    • Network Frequency : 50-60 Hz
    • Nominal Switching Frequency : 4 kHz
    • Number Of Addresses : 1-247 Modbus serial
    • Operating Element Present : true
    • Operating Position : vertical +/- 10 degree
    • Optical Interface Present : false
    • Overvoltage Category : III
    • Package Weight Lbs : 66.0 kg
    • Phase : 3 phase
    • Power Loss Per Device Current Dependent : 1210.0 W
    • Power Loss Static Current Independent : 31.0 W
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : variable speed drive
    • Product Specific Application : process and utilities
    • Prospective Line Isc : 50 kA
    • Range Of Product : Altivar Process ATV600
    • Refresh Time : relay output R1, R2, R3)5 ms +/- 0.5 ms)
    • Regulation Loop : adjustable PID regulator
    • Relative Symmetric Mains Voltage Tolerance : 10 %
    • Relative Symmetric Network Frequency Tolerance : 5 %
    • Returnability : Yes
    • Safety Function : STO (safe torque off) SIL 3
    • Shock Resistance : 15 gn 11 ms IEC 60068-2-27
    • Supply Frequency : 50...60 Hz - 5...5 %
    • Supporting Protocol For As Interface Safety At Work : false
    • Supporting Protocol For Asi : false
    • Supporting Protocol For Bacnet : false
    • Supporting Protocol For Can : true
    • Supporting Protocol For Data Highway : false
    • Supporting Protocol For Devicenet : false
    • Supporting Protocol For Devicenet Safety : false
    • Supporting Protocol For Ethernet Ip : true
    • Supporting Protocol For Foundation Fieldbus : false
    • Supporting Protocol For Interbus : false
    • Supporting Protocol For Knx : false
    • Supporting Protocol For Lon : false
    • Supporting Protocol For Modbus : true
    • Supporting Protocol For Other Bus Systems : false
    • Supporting Protocol For Profibus : true
    • Supporting Protocol For Profinet Cba : true
    • Supporting Protocol For Profinet Io : true
    • Supporting Protocol For Profisafe : false
    • Supporting Protocol For Safetybus P : false
    • Supporting Protocol For Sercos : false
    • Supporting Protocol For Suconet : false
    • Supporting Protocol For TCP IP : true
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 36 373 kg CO2 eq.
    • Transmission Frame : RTU
    • Type Of Cooling : forced convection
    • Type Of Polarization : no impedance
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • With Safety Function Safe Programmable Logic : false
    • Emc Limit Value Complied2 : true
    • Maximum Acceleration Under Shock Impact During Operation2 : 150 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Storage2 : 150 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Transport2 : 150 m/s² at 11 ms
    • Maximum Acceleration Under Vibrational Stress During Operation2 : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Storage2 : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Transport2 : 10 m/s² at 13...200 Hz
    • Maximum Deflection Under Vibratory Load During Operation2 : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Storage2 : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Transport2 : 1.5 mm at 2...13 Hz
    • Permitted Relative Humidity During Operation2 : class 3K5 according to EN 60721-3
    • Permitted Relative Humidity During Storage2 : class 1K5 according to EN 60721-3
    • Permitted Relative Humidity During Transport2 : class 2K5 according to EN 60721-3
    • With Safety Function Safe Brake Management Sbc Sbt2 : false
    • With Safety Function Safe Direction Sdi2 : false
    • With Safety Function Safe Operating Stop Sos2 : false
    • With Safety Function Safe Position Sp2 : false
    • With Safety Function Safe Speed Monitor Ssm2 : false
    • With Safety Function Safe Stop 1 SS1 : false
    • With Safety Function Safe Torque Off Sto2 : true
    • With Safety Function Safely Limited Position Slp2 : false
    • With Safety Function Safely Limited Speed Sls2 : false
    • With Sft Fct Safe Stop 2 Ss : false
    • Application In Industrial Area Permitted : true
    • Supporting Protocol For Interbus Safety : false
    • Medium Desc : variable speed drive, Altivar Process ATV600, ATV650, 45kW, 400...480V, IP55
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Emc Limit Value Complied3 : true
    • Maximum Acceleration Under Shock Impact During Operation3 : 150 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Storage3 : 150 m/s² at 11 ms
    • Maximum Acceleration Under Shock Load During Transport3 : 150 m/s² at 11 ms
    • Maximum Acceleration Under Vibrational Stress During Operation3 : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Storage3 : 10 m/s² at 13...200 Hz
    • Maximum Acceleration Under Vibratory Load During Transport3 : 10 m/s² at 13...200 Hz
    • Maximum Deflection Under Vibratory Load During Operation3 : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Storage3 : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Transport3 : 1.5 mm at 2...13 Hz
    • Permitted Relative Humidity During Operation3 : class 3K5 according to EN 60721-3
    • Permitted Relative Humidity During Storage3 : class 1K5 according to EN 60721-3
    • Permitted Relative Humidity During Transport3 : class 2K5 according to EN 60721-3
    • With Safety Function Safe Brake Management Sbc Sbt3 : false
    • With Safety Function Safe Direction Sdi3 : false
    • With Safety Function Safe Operating Stop Sos3 : false
    • With Safety Function Safe Position Sp3 : false
    • With Safety Function Safe Speed Monitor Ssm3 : false
    • With Safety Function Safe Torque Off Sto3 : true
    • With Safety Function Safely Limited Position Slp3 : false
    • With Safety Function Safely Limited Speed Sls3 : false
    • With Sft Fct Safe Stop 2 Ss4 : false
    • Pep Code : ENVPEP1506001EN
    • Database Version : 2016-11
    • Pep Verification Date : 2021-11-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional Unit Description : To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine s operating point for 45 kW electric motors for fluid management and industrial applications in IP55 conditions, at 380V to 480V rated 3-phase voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: China
    • Energy Model Installation A5 2 : Electricity Mix; AC; < 1kV; EU-27
    • Energy Model Use B6 2 : Electricity Mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; AC; < 1kV; EU-27
    • Global Commercial Status : Commercialised
    • Us Rated Supply Voltage5 : 380...480 V - 15...10 %
    • With Safety Function Safe Stop 1 Ss1 5 : false
  • Environment Attributes Main
    • Take Back : Nej, No
    • Ambient Air Temperature For Operation : -15-40 °C (without derating), -15-40 °C (without derating), -15-50 °C, 40-50 °C (with derating factor), -15-40 °C (without derating), -15-40 °C (without derating)
    • Ambient Air Transport Temperature : -40-70 °C, -40-70 °C
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP55, IP55IEC 60529, IP55IEC 61800-5-1
    • Operating Altitude : <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, 1000...4800 m with current derating 1 % per 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 36372.5250727136
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI1506001EN
    • Environmental Disclosure : ENVPEP1506001EN
    • Nema Degree Of Protection : NEMA 12
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % without condensation IEC 60068-2-3
    • Pep Code : ENVPEP1506001EN
    • Pep Verification Date : 2021-11-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : variable speed drive
    • Range Of Product : Altivar Process ATV600
  • Output Attributes
    • Analogue Output Type : software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable current AQ1, AQ2 0...20 mA 10 bits, software-configurable current DQ-, DQ+ 30 V DC, software-configurable current DQ-, DQ+ 100 mA
    • Continuous Output Current : 72 A 4 kHz heavy duty, 87 A 4 kHz normal duty
    • Discrete Output Type : relay outputs R2A, R2C 30 V DC 5000 mA, relay outputs R3A, R3C 30 V DC 5000 mA, relay outputs R1A, R1B, R1C 250 V AC 3000 mA, relay outputs R1A, R1B, R1C 30 V DC 3000 mA, relay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA
    • Relay Output Type : configurable relay logic R2 sequence relay NO 100000 cycles, configurable relay logic R3 sequence relay NO 100000 cycles, configurable relay logic R1 fault relay NO/NC 100000 cycles
    • Analogue Output Number : 2
    • Discrete Output Number : 0
    • Maximum Output Frequency : 500 kHz
    • Maximum Output Voltage : 480.0 V
    • Nominal Output Current : 88.0 A
    • Nominal Output Power : 45.0 kW
    • Output Voltage : <= power supply voltage
    • Relay Output Number : 3
    • Speed Drive Output Frequency : 0.1-500 Hz
  • Surge Protection And Filtering Attributes
    • EMC Filter : integrated 50 m IEC 61800-3 category C2, integrated 150 m IEC 61800-3 category C3
  • Input Attributes
    • Analogue Input Type : AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
    • Discrete Input Logic : positive logic (source) DI1...DI8), < 5 V, > 11 V, negative logic (sink) DI1...DI8), > 16 V, < 10 V, 16 preset speeds
    • Input Compatibility : DI5, DI6 discrete input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2, DI1...DI6 discrete input level 1 PLC IEC 61131-2
    • Analogue Input Number : 3
    • Discrete Input Number : 8
    • Discrete Input Type : DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
    • Number Of Input Phases : 3
  • Specifications
    • Depth : 340 mm
  • Batteries & Runtime Attributes
    • Removable Battery : Yes
