WIREMOLD

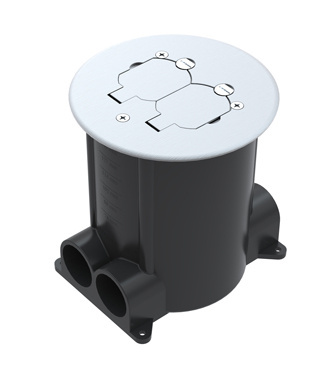

Rachet-ProTM Series Round Nonmetallic Floor Box

ROUND PVC FL BOX

WRM881 881 786564524267
27.37 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Rachet-ProTM Series Round Nonmetallic Floor Box-1
  • Country of Origin: USA
  • Depth: 5.63 in
  • Height: 6.25 in
  • Weight: 1.7 lb
  • Width: 4.25 in
Wiremold® Ratchet-Pro™ Series Floor Boxes provide single- and dual-service capability in a variety of easy-to-install round floor boxes. These designs allow the flexibility for providing power, A/V or communication services to open-space areas in an aesthetic solution. Applications include malls, shopping centers, department stores, airports, hospitals, and office buildings. Ratchet-Pro™ Series Floor Boxes are cULus Listed for use in both on grade and above grade concrete construction.
QTY
  • Product Description
  • Features
  • Specifications
Wiremold® Ratchet-Pro™ Series Floor Boxes provide single- and dual-service capability in a variety of easy-to-install round floor boxes. These designs allow the flexibility for providing power, A/V or communication services to open-space areas in an aesthetic solution. Applications include malls, shopping centers, department stores, airports, hospitals, and office buildings. Ratchet-Pro™ Series Floor Boxes are cULus Listed for use in both on grade and above grade concrete construction.
  • Certifications
    • cULus Listed
    • RoHS Compliant
    • NAFTA Compliant
  • Features
    • The Wiremold Ratchet-Pro™ PVC Floor Box provides dual-service capability in a single, easy-to-install round floor box. Supplied with reusable concrete cap, adapter ring, conduit reducers, and conduit hub plugs. Available for both single and dual service. Graduated cubic inch markings inside the box indicate volume capacity at any depth. Box has parallel conduit hubs eliminating the need for 90 degree sweeps in installation. One-piece reduction from 1 inch to 1/2 inch (25mm to 12.7mm) conduit. Reducers and plugs located on a mounting bar for easier selection. For concrete pours of 2 1/4 inch to 6 inch (57mm to 152mm).
  • Specifications
    • Depth : 5.63 in
    • Color : Black
    • Height : 6.25 in
    • Product Line : Wiremold
    • Weight : 1.7 lb
    • Width : 4.25 in
    • Product Volume : 149.41
    • Country of Origin : United States
