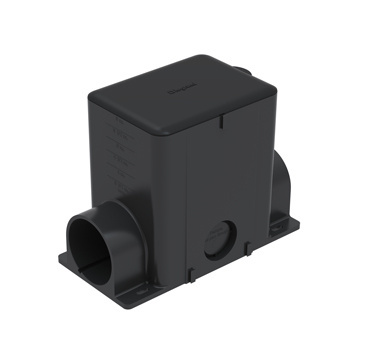

The Modulink™ nonmetallic floor box with 2 inch conduit feed provides power and communication services directly to the workstation or to any open space location. The Modulink™ Floor Box is a gangable box that allows a one-gang floor box to easily be turned into a two- or three-gang box simply by ganging together individual boxes. This floor box has many applications, some of which are commercial offices, retail stores, malls, financial and government institutions.

• Certifications
• NAFTA Compliant
• cULus Listed
• RoHS Compliant
• Features
• 2'' [51mm] conduit openings. Provides the largest conduit feed in the industry. Meets customer requirements for greater communication cable capacity.
• Conduit reducers and plugs provided. Allows direct reduction from 2'' to 1 1/2'' or 1 1/4'' [51mm to 38mm or 32mm]. Reduces installation time by providing direct reduction and separate plugs by eliminating the need to cut out plugs to form reducers.
• Ratchet adjusting ring. Allows connection of cover flange without glue or mechanical fasteners. Reduces installation time and cost by providing 10° of post-pour adjustment of the cover flange.
• Modular design and gangability. One SKU to order boxes, with the ability to configure boxes as needed on the job site.
• Pass-through capability. Can feed multiple gangs from a single cable feed location. Reduces total installation time.
• Depth markings on exterior of the box. Makes floor box depth calculations quick and easy. Reduces installation time and labor costs.

• Specifications
• Depth : 8.25 in
• Height : 6.25 in
• Color : Black
• Product Line : Wiremold
• Weight : 3.3 lb
• Product Volume : 212.95
• Width : 4.13 in
• Country of Origin : United States
