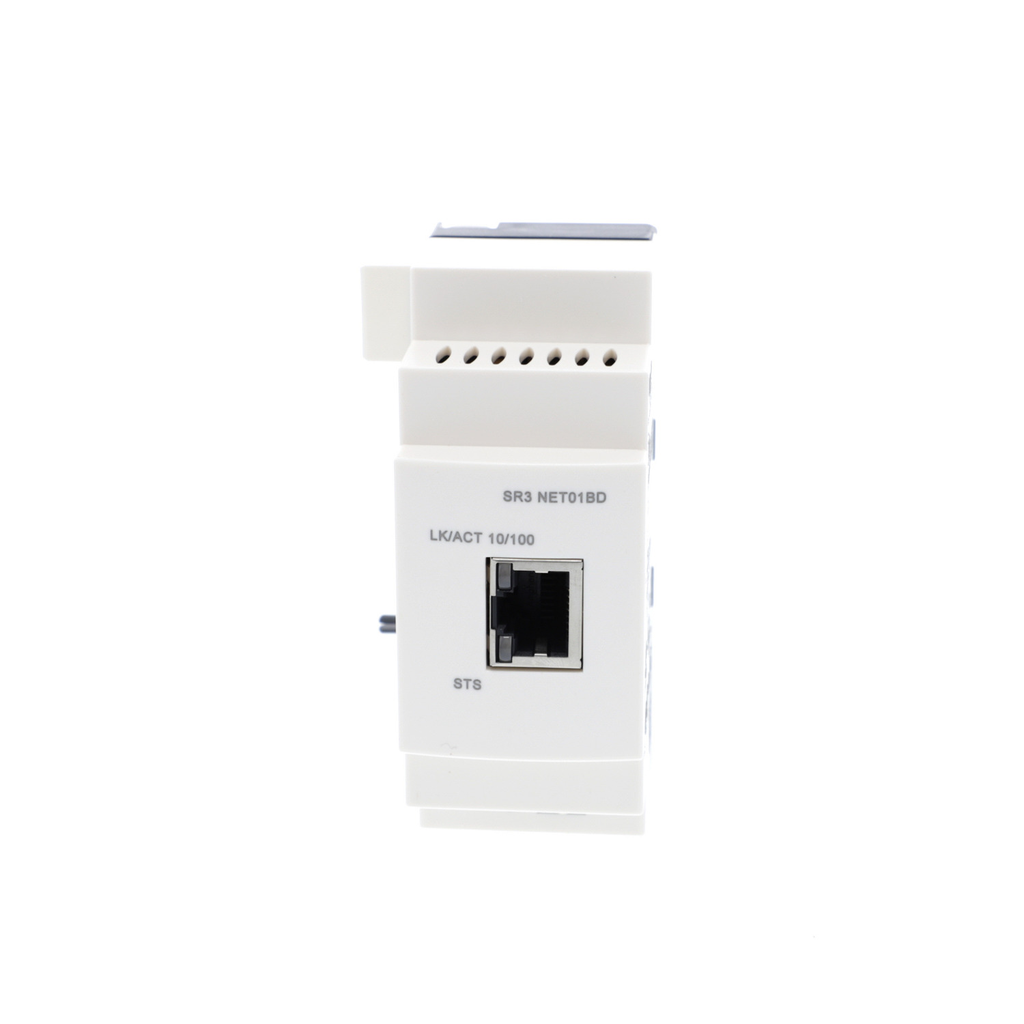

This Schneider Electric Zelio Logic SR3 Ethernet Communication Interface uses a supply voltage of 24 volts direct current. It is compatible with Ethernet. This Ethernet Communication Interface adds Ethernet communication functionality to a Zelio Logic re

• Connections Terminals
• screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) semi-solid
• screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...A
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.020484049479738815
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.3 kg CO2 eq.
• 0.2729731163828099
• Standards
• IEC 61000-4-4 level 3
• IEC 61000-4-5
• IEC 61000-4-2 level 3
• IEC 61000-4-3
• IEC 60068-2-6 Fc
• IEC 60068-2-27 Ea
• Disturbance Radiated Conducted
• class B EN 55022-11 group 1
• Ip Degree Of Protection
• IP20 IEC 60529 terminal block)
• IP40 IEC 60529 front panel)
• Electrical Connection
• 1 connector RJ45
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 13 kg CO2 eq.
• 13.353223732530523
• Environmental Characteristic
• EMC directive conforming to IEC 61000-6-2
• EMC directive conforming to IEC 61000-6-3
• EMC directive conforming to IEC 61000-6-4
• EM
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 39 kg CO2 eq.
• 39.04842877176597
• Relative Humidity
• 95-95 % without condensation or dripping water
• Carbon Footprint Of The Distribution Phase A4
• 0.21640017251386132
• 0.2 kg CO2 eq.
• Local Signalling
• 1 LED for communication (LK/ACT 10/100)
• 1 LED for status (STS)
• Ambient Air Temperature For Operation
• -20-40 °C IEC 60068-2-1 and IEC 60068-2-2
• -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
• Product Certifications
• CSA
• C-tick
• GOST
• UL

• Communications & Management Attributes
• Communication Port Protocol : Ethernet
• Communication Port Support : 10/100BASE-T
• Complementary Attributes
• Maximum Altitude Transport : 3048 m
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2024-01-24
• Etim 10 : EC001417
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Manufacturing Carbon Footprint : 13.3532237325305
• Distribution Carbon Footprint : 0.216400172513861
• Installation Carbon Footprint : 2.04840494797388e-02
• Use Carbon Footprint : 39.048428771766
• End Of Life Carbon Footprint : 0.27297311638281
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI0604006EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant with Exemptions
• Rohs Eur Conformity Date : 1846
• Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• China Rohs In Scope : Yes
• China Rohs Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 1 - GSC certified
• Package Weight Lbs : 109.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Ethernet communication module
• Programming Language : FBD
• Range Of Product : Zelio Logic
• Returnability : Yes
• Sustainable Packaging : Yes
• Tightening Torque : 0.5 N.m
• Total Lifecycle Carbon Footprint : 53 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 52.9115098426729
• Relationshiptype : cross-selling relationship
• General Attributes
• Product Or Component Type : Ethernet communication module
• Range Of Product : Zelio Logic
• ETIM
• ETIM 8 : EC001417
• ETIM 9 : EC001417
• Environment Attributes
• Take Back : No
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 52.9115098426729
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI0604006EN
• Environmental Disclosure : ENVPEP060406EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Operating Altitude : 6561.68 ft (2000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Product Compatibility : all modules with 24 V supply SR3 B...BD
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
