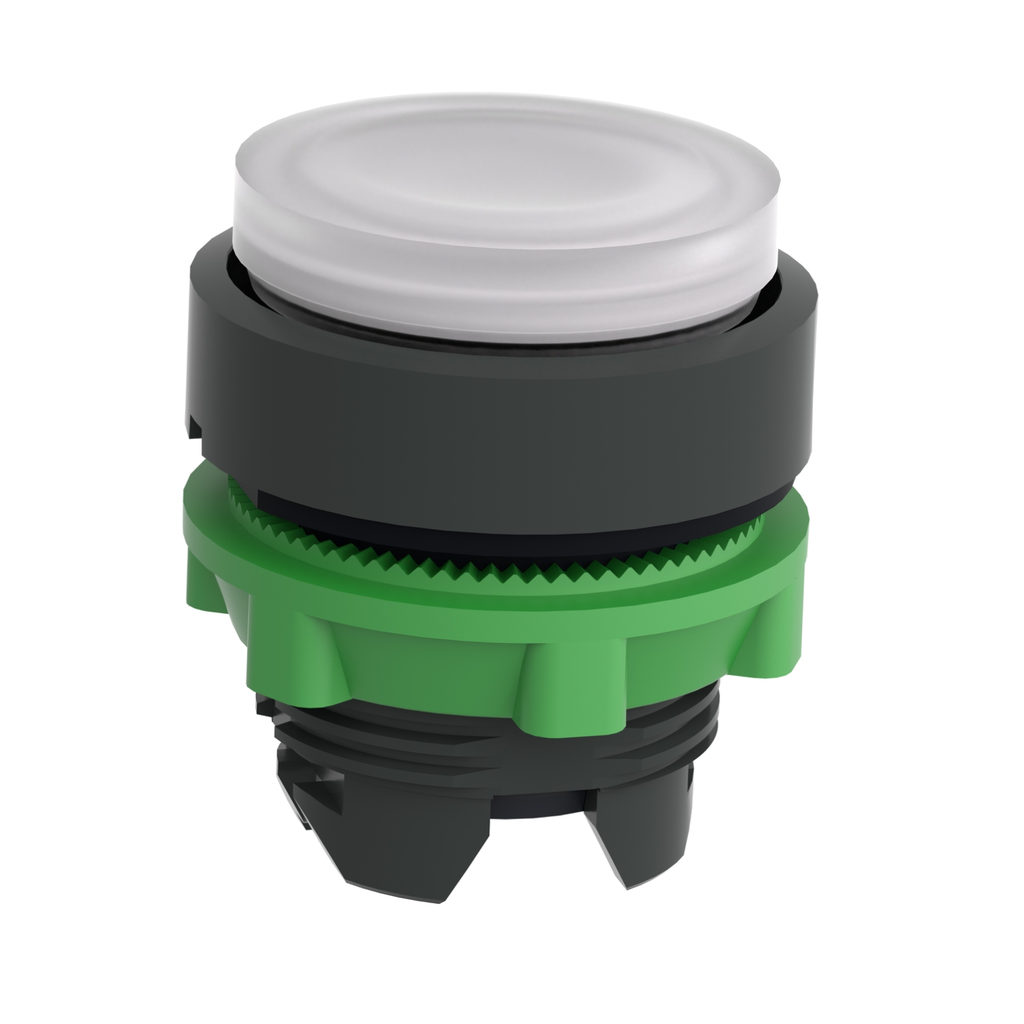

Head for illuminated push button, Harmony XB5, XB4, white projecting pushbutton Ø22 mm spring return integral LED

Head for illuminated push button, Harmony XB5, XB4, white projecting pushbutton Ø22 mm spring return integral LED

SQDZB5AW113 ZB5AW113 785901388142
12.33 / EACH
  • Bezel Material: Dark Grey Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Color: White
  • Net Weight: 0.018 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This white projecting illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is also distinguishable by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Product Description
  • Specifications
This white projecting illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is also distinguishable by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Operator Profile : white projecting, unmarked
  • Shape Of Signaling Unit Head : round
  • Sale Per Indivisible Quantity : 1
  • Product Or Component Type : head for illuminated push-button
  • Product Compatibility : integral LED
  • Type Of Operator : spring return
  • Operator Additional Information : with plain lens
  • Range Of Product : Harmony XB5
  • Bezel Material : dark grey plastic
  • Device Short Name : ZB5
  • Head Type : standard
  • Mounting Diameter : 22 mm
  • Complementary
    • Cap/Operator Or Lens Colour : white
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
    • Cad Overall Depth : 33 mm
    • Cad Overall Height : 29 mm
    • Net Weight : 0.018 kg
    • Mechanical Durability : 10000000 cycles
    • Marking : unmarked
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Cad Overall Width : 29 mm
    • Group Of Product : proj push integral LED
    • Device Presentation : basic sub-assemblies
    • Main Group : illum push-button
  • Offer Sustainability
    • Reach Free Of Svhc : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1710010EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Rohs Exemption Information : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Contractual warranty
    • Warranty : 18 months
  • Environment
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Product Certifications : DNV || CSA || UL Listed || GL || BV || LROS (Lloyds register of shipping)
    • Protective Treatment : TC
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Overvoltage Category : class II IEC 60536
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ik Degree Of Protection : IK05 EN 50102
    • Ip Degree Of Protection : IP66 IEC 60529 || IP69 || IP69K
    • Ambient Air Temperature For Operation : -40-70 °C
