SQUARE D

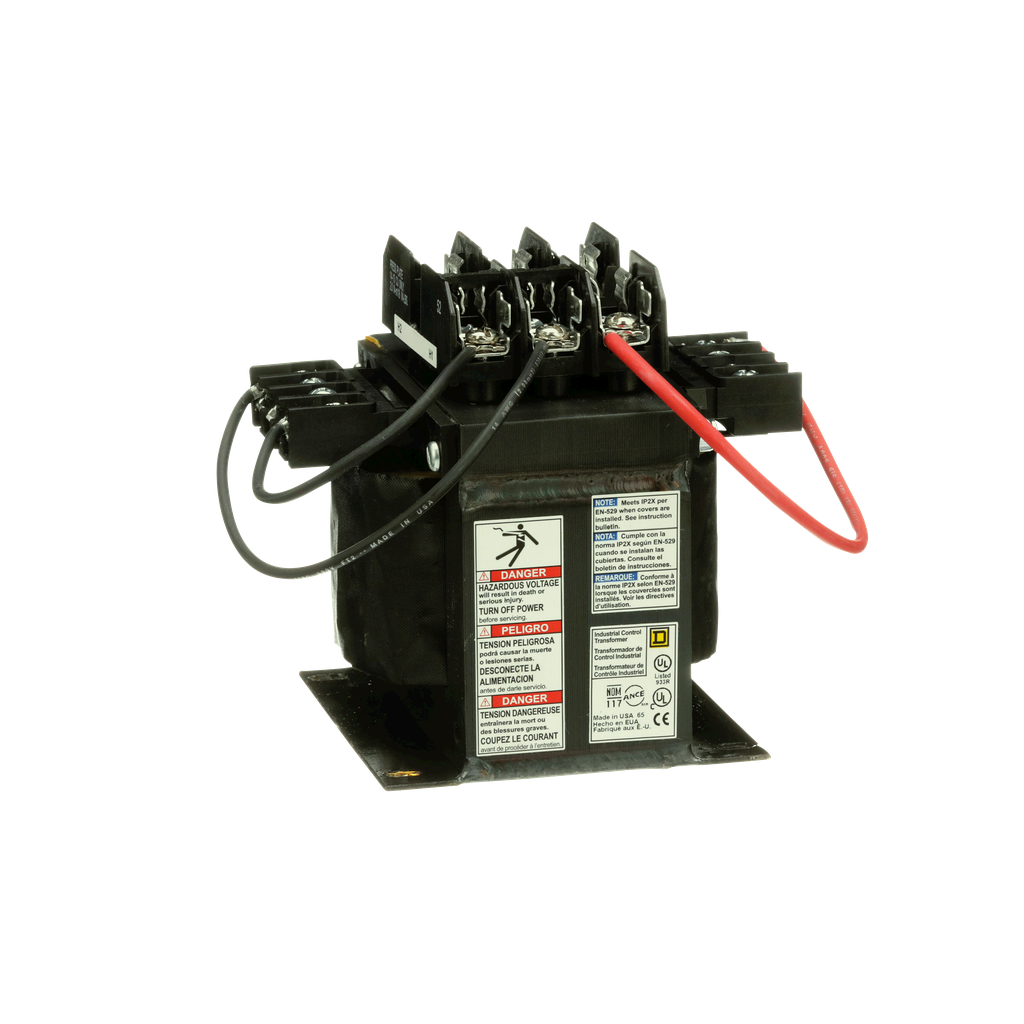

Industrial control transformer, Type TF, 1 phase, 500VA, 400V primary, 120V secondary, 50/60Hz

TRANSFORMER CONTROL 500VA 400V

SQD9070TF500D103 9070TF500D103 785901842798
2485.79 / EACH
http://schema.org/OutOfStock
Mayer-Industrial control transformer, Type TF, 1 phase, 500VA, 400V primary, 120V secondary, 50/60Hz-1
  • Warranty Length: 18 mth
The Square D™ by Schneider Electric Type TF Industrial Control Transformers provide factory installed overcurrent protection fuse blocks (two primary and one secondary). The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. This Type TF is a single phase 500VA transformer designed for 400VAC primary with a 120VAC secondary. It is compliant with UL and CSA standards verified by third party UL carrying the cUL and UL labels.
QTY
  • Product Description
  • Specifications
The Square D™ by Schneider Electric Type TF Industrial Control Transformers provide factory installed overcurrent protection fuse blocks (two primary and one secondary). The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. This Type TF is a single phase 500VA transformer designed for 400VAC primary with a 120VAC secondary. It is compliant with UL and CSA standards verified by third party UL carrying the cUL and UL labels.
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308008EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Phenyl Glycidyl Ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
