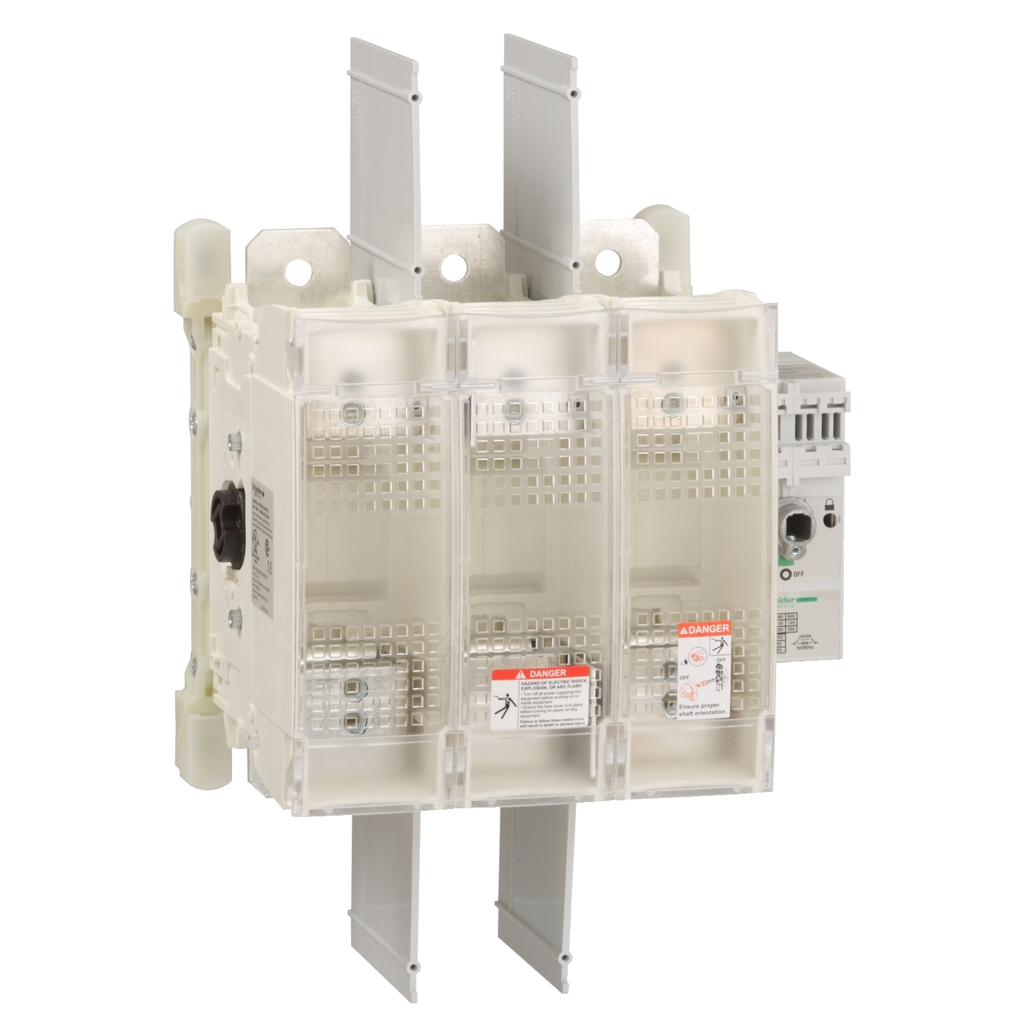

TeSys GS fuse switch-disconnector, 3 poles (3P), 400A/800V, to be used with class J fuse links up to 400A, for motor applications up to 220kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available

• Connections Terminals
• power circuit lugs-ring terminals 13.3-304 mm²
• Prop 65
• WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Standards
• CSA C22.2 No 4
• UL98
• Ip Degree Of Protection
• IP20 IEC 60529 with terminal cover)
• Rated Operational Power In W
• 220 kW 690 V
• 220 kW 500 V
• 220 kW 400 V
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• Tightening Torque
• power circuit 56.5-56.5 N.m
• Ith Conventional Free Air Thermal Current
• 400 A (at 40 °C)
• Network Type
• AC
• DC
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL

• Physical Attributes
• Fuse Size : J
• Complementary Attributes
• Short Circuit Withstand : 200 kA
• Ie Rated Operational Current : 400 A
• Ui Rated Insulation Voltage : 800 V
• Uimp Rated Impulse Withstand Voltage : 8 kV
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-05
• Etim 10 : EC001040
• Html Descr : TeSys GS - switch-disconnector-fuse - 3 P - UL - 400 A- fuse size J
• Manufacturer : Square D
• Baan Price : 6306.44
• Baan Currency : USD
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Weee Applicability : Finished product
• Weee Scope : In
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2003009EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1911
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Contacts Type And Composition : 3 NO
• Device Application : protection
• Device Short Name : GS2QU
• Electrical Durability : 6000 cycles
• Energy Efficiency Optimized : False
• Fuse Type : UL
• Mechanical Durability : 10000 cycles
• Mounting Support : plate
• Network Frequency : 50/60 Hz
• Package Weight Lbs : 6.864 kg
• Poles Description : 3P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : switch-disconnector-fuse
• Protected Poles Description : 3t
• Range : TeSys
• Returnability : Yes
• Short Circuit Withstand : 200 kA
• Sustainable Packaging : No
• Type Of Operating Handle : external frontal
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Ie Rated Operational Current : 400 A
• General Attributes
• Product Or Component Type : switch-disconnector-fuse
• ETIM
• ETIM 8 : EC001040
• ETIM 9 : EC001040
• Environment Attributes
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -20-70 °C
• Ambient Air Temperature For Storage : -40-80 °C
• Circularity Profile : ENVEOLI2003009EN
• Environmental Disclosure : ENVPEP2003009EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : France
• Height : 9.45 in
• Width : 10.2 in
• Depth : 7.09 in
