SQUARE D

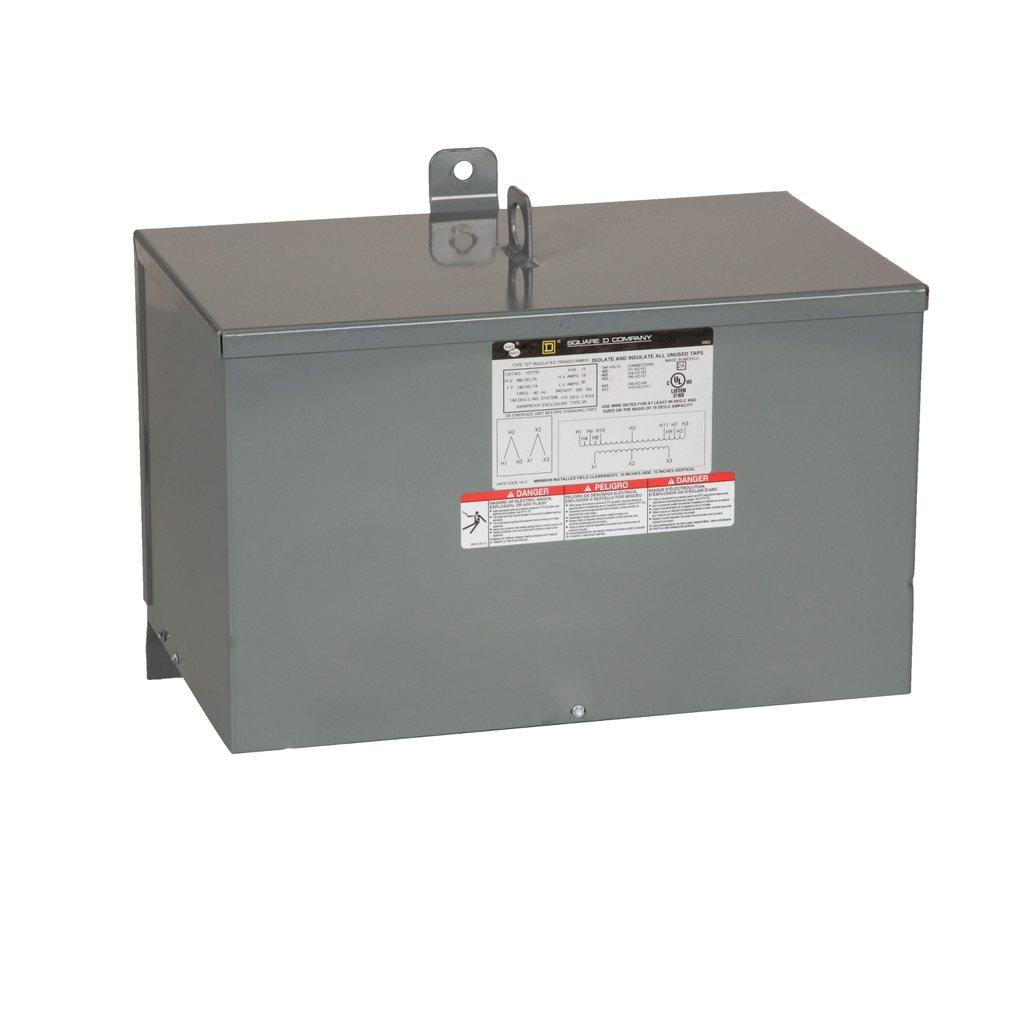

Transformer, dry type, encapsulated, 9kVA, 3 phase, 480V primary, 240V secondary, 14C, 115C rise [TAA]

TRANSFORMER DRY 3PH 9KVA 480V-

SQD9T75F 9T75F 785901358046
5943.40 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Transformer, dry type, encapsulated, 9kVA, 3 phase, 480V primary, 240V secondary, 14C, 115C rise [TAA]-1
  • Depth: 12.25 in
  • Enclosure Material: Painted Sheet Steel
  • Height: 14.75 in
  • Primary Voltage: 240 V, 480 V
  • Temperature Rise: 115 °C
  • Warranty Length: 18 mth
  • Width: 19.1 in
Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 3 phase, and has a rated power of 9 KVA. This transformer has a primary voltage of 480 V delta, and a secondary voltage of 240 V delta. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 14.75 in (H), 19.1 in (W), 12.25 in (D). This product complys to UL & CSA standards.
QTY
  • Product Description
  • Features
  • Specifications
Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 3 phase, and has a rated power of 9 KVA. This transformer has a primary voltage of 480 V delta, and a secondary voltage of 240 V delta. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 14.75 in (H), 19.1 in (W), 12.25 in (D). This product complys to UL & CSA standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : cULus || CSA || UL Listed
    • Nema Degree Of Protection : NEMA 3R
    • Insulation Temperature : 180 °C
  • Contractual warranty
    • Warranty : 18 months
  • Compliance
    • Compliance : TAA
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407010
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant
  • Complementary
    • Height : 14.75 in
    • Temperature Rise : 115 °C
    • Phase : 3 phase
    • Rated Power In Va : 9 kVA
    • Enclosure Mounting : wall mounted
    • Enclosure Material : painted sheet steel
    • Width : 19.1 in
    • Depth : 12.25 in
    • Box Number : 14C
  • Specifications
    • Country of Origin : Mexico
    • Width : 19.1 in
    • Height : 14.75 in
    • Number Of Tap-Offs : 4 2.5 % FCBN
    • Product Or Component Type : Dry Sealed Transformer
    • Primary Voltage : 480 V delta 240 V delta
