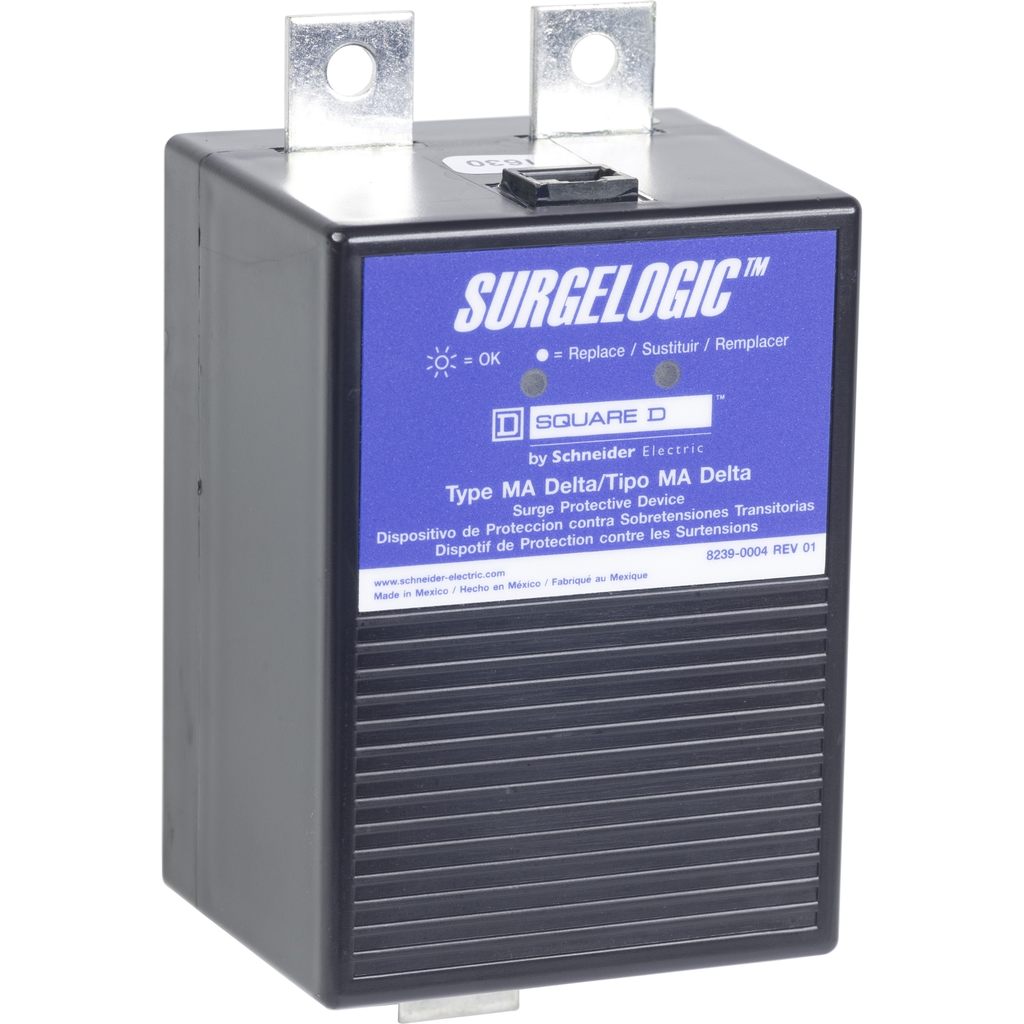

Surgelogic™ EMA and EBA series SPDs, MA5IMA16, offer a full range of externally mounted surge suppression solutions. These units are designed to provide surge suppression from service entrance panels to point-of-use equipment. US and Canadian UL® Listed

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Provided Equipment
• alarm enable/disable switch
• Standards
• UL 1449:ed. 4
• UL 1283:ed. 5
• CSA C22.2 No 8:1986
• ANSI/IEEE C62.41
• ANSI/IEEE C62.45
• NEC 285
• Ue Rated Operational Voltage
• 480 V delta AC
• Local Signalling
• status LED green normal operation
• Enclosure Material
• Black Plastic
• Surge Current
• 160 kA per phase

• Complementary Attributes
• Uc Maximum Continuous Operating Voltage : 550 V
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Device Type : Surge Protection and Power Conditioning - Surge Protection Devices
• Serviceability : No
• Traceability : No
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2002011EN
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant with Exemptions
• Rohs Eur Conformity Date : 2531
• Rohs Eur Full Compliance Status : Compliant with Exemptions
• China Rohs In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• H And D Domain : Safety
• H And D Subrange : SPD NEMA
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : SPD
• H And D Enrichment Class 3 : Surge protection devices
• H And D Enrichment Class 4 : SPD Type 3
• Device Short Name : IMA
• Energy Efficiency Optimized : False
• Mounting Support : panel mounting
• Nominal Discharge Current : 20 kA
• Package Weight Lbs : 1.107 kg
• Phase : 3 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : surge protection module
• Range Of Product : Surgelogic
• Returnability : Yes
• Short Circuit Protection : 200 kA
• Sustainable Packaging : No
• Wiring Configuration : 3-wire
• Accessory Separate Part Category : replacement part
• Connections Terminals : terminals
• General Attributes
• Phase : 3 phase
• Product Or Component Type : surge protection module
• Range Of Product : Surgelogic
• Environment Attributes
• Take Back : No
• China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Ambient Air Temperature For Operation : 65-65 °C
• Circularity Profile : ENVEOLI2002011EN
• Environmental Disclosure : ENVPEP2002011EN
• Eu Rohs Directive : Compliant with Exemptions
• Nema Degree Of Protection : NEMA 2
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Height : 6.25 in
• Width : 3.26 in
• Depth : 2.69 in
