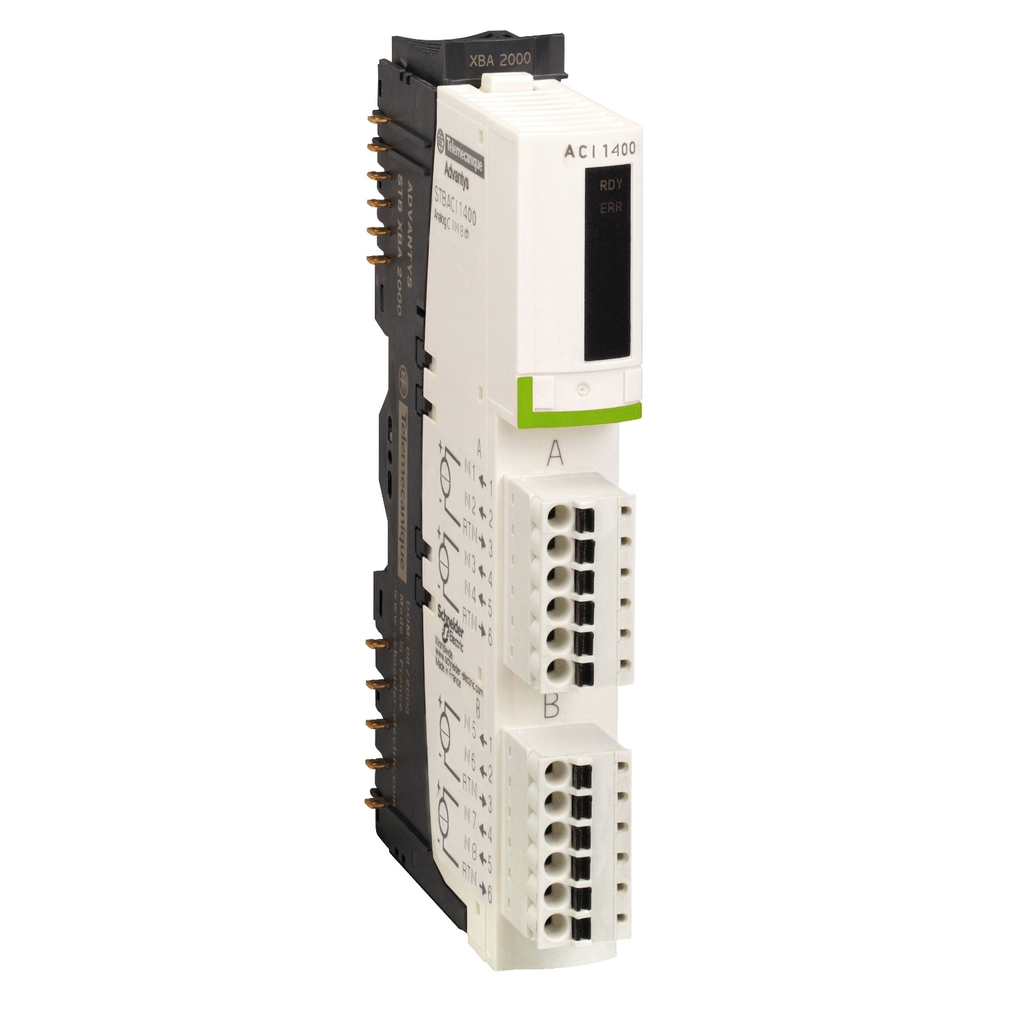

This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard analogue input kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 8 analogue inputs (curr

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Accessories
• STBXBA2000
• STBXTS1100
• STBXTS2100
• Relative Humidity
• 95-95 % 60-60 °C without condensation
• Kit Composition
• STBXTS1100, 6-terminal screw type connector
• STBXTS2100, 6-terminal spring clamp connector
• STBACI1400 module
• STBXBA2000 base
• Product Compatibility
• power distribution module STBPDT3100/3105
• mounting base STBXBA2000
• Product Certifications
• FM Class 1 Division 2
• CSA
• UL
• ATEX Cat 3G
• C-tick

• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2024-01-27
• ETIM 10 : EC001596
• Device Type : Automation - Distributed inputs/ouputs
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1920
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Hot Swapping Fallback : yes for standard NIMs
• Marking : CE
• Package Weight Lbs : 147.0 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : standard analog input kit
• Range Of Product : Modicon STB distributed I/O solution
• Returnability : Yes
• Sustainable Packaging : No
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : standard analog input kit
• Range Of Product : Modicon STB distributed I/O solution
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=697326&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Analogue Input Number : 8
• Analogue Input Resolution : 15 bits + sign
• Specifications
• Country of Origin : Indonesia
• Height : 0.72 in
• Width : 5.05 in
• Depth : 2.76 in
