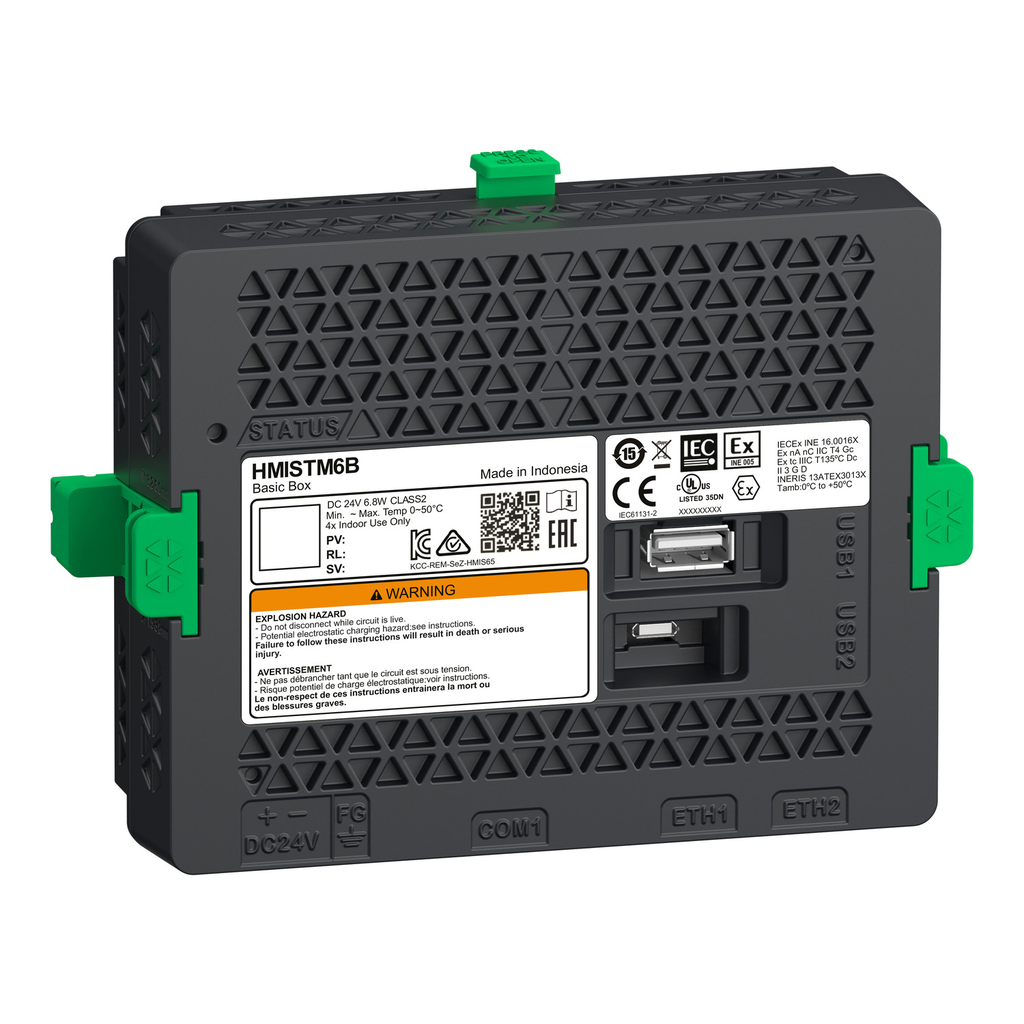

This product is part of Schneider Electric's Harmony ST6 range, a spare part of the HMIST6. This is a rear module for the touch panel screens of the Harmony ST6 range. It runs on 800MHz ARM Cortex-A8 CPU Harmony operating system with an input supply voltage of 24Vdc. It comes with a 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. It also has 2x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 145mm (width) x 108mm (height) x 41mm (depth) and weighs 0.27Kg. This is intended for industries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH, ATEX Zone2/22, Marine. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The HMISTM6 Faceless HMI can be used for applications that doesn't need an operator screen full time.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2007003EN
• Packaging Without Single Use Plastic : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Scip Number : 715da6e9-302b-4bd3-a8b4-7f8cdd474a0e
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Removable Battery : User replaceable
• Circularity Profile : ENVEOLI2007003EN
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 187.6336538462
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 53.7645820806
• Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
• Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
• Sustainable Packaging : Yes
• F-Gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Total Lifecycle Carbon Footprint : 242 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.0744353578
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 241.5110019219
• Complementary
• Product Brand : Schneider Electric Modicon || Mitsubishi Melsec || Omron Sysmac || Rockwell Automation Allen-Bradley || Siemens Simatic
• [Us] Rated Supply Voltage : 24 V DC +/- 20 %)
• Number Of Pages : 200 application pages
• Height : 108.2 mm
• Inrush Current : 30 A
• Power Consumption In W : 6.8 W
• Cut-Out Dimensions : Ø 22.5 mm
• Supply : external supply
• Marking : CE
• Net Weight : 0.27 kg
• Fixing Mode : Ø 22 mm hole 1.5 to 6 mm thick panel UL 61010-2-201 || Ø 22 mm hole IEC 61131-2 || Ø 22 mm hole IEC 61000-6-2
• Local Signalling : status LED green, steady offline || status LED green, steady operating || status LED green, flashing operating || status LED green, faded stand-by || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED red, flashing operating || status LED red, off power supply (OFF)
• Integrated Connection Type : 1 COM1 serial link - female RJ45 - RS232C/RS485 2400...115200 bps)bottom || 1 USB 2.0 type Aback || 1 USB 2.0 type micro Bback || 2 Ethernet - female RJ45bottom
• Downloadable Protocols : Modbus || Uni-TE || third party protocols
• Enclosure Material : PC
• Port Ethernet : 10/100BASE
• Width : 145.6 mm
• Realtime Clock : built-in 0...50 °C || built-in 10...90 % RH
• Depth : 41.4 mm
• Environment
• Product Certifications : CE || UKCA || cULus || RCM || KC || cULus Class 1 Division 2 || DNV || ABS || RINA || BV
• Ambient Air Temperature For Operation : 0-50 °C
• Standards : IEC 61000-6-4 || IEC 61000-6-2 || IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || CSA C22.2 No 213
• Immunity To Microbreaks : 2 ms
• Electromagnetic Compatibility : electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 1 kV (signal ports) || electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3 || electrostatic discharge immunity test - test level: 8 kV (air discharge)
• Shock Resistance : 147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2
• Vibration Resistance : +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2 || 9.8 m/s² 9-150 Hz)
• Ip Degree Of Protection : IP20 IEC 61131-2 rear panel)
• Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Ambient Air Temperature For Storage : -20-60 °C
• Relative Humidity : 10-90 % non-condensing
• Operating Altitude : 6561.68 ft (2000 m)
• Specifications
• Country of Origin : Indonesia
• Width : 145.6 mm
• Height : 108.2 mm
• Weight : 0.27 kg
• Range Of Product : Harmony ST6
• Software Package : EcoStruxure Operator Terminal Expert
• Product Or Component Type : touch panel screen
• Processor Frequency : 800 MHz
• Processor Name : ARM Cortex-A8
• Memory Description : 1 GB device memory || 128 MB user data memory || 512 KB backup memory
