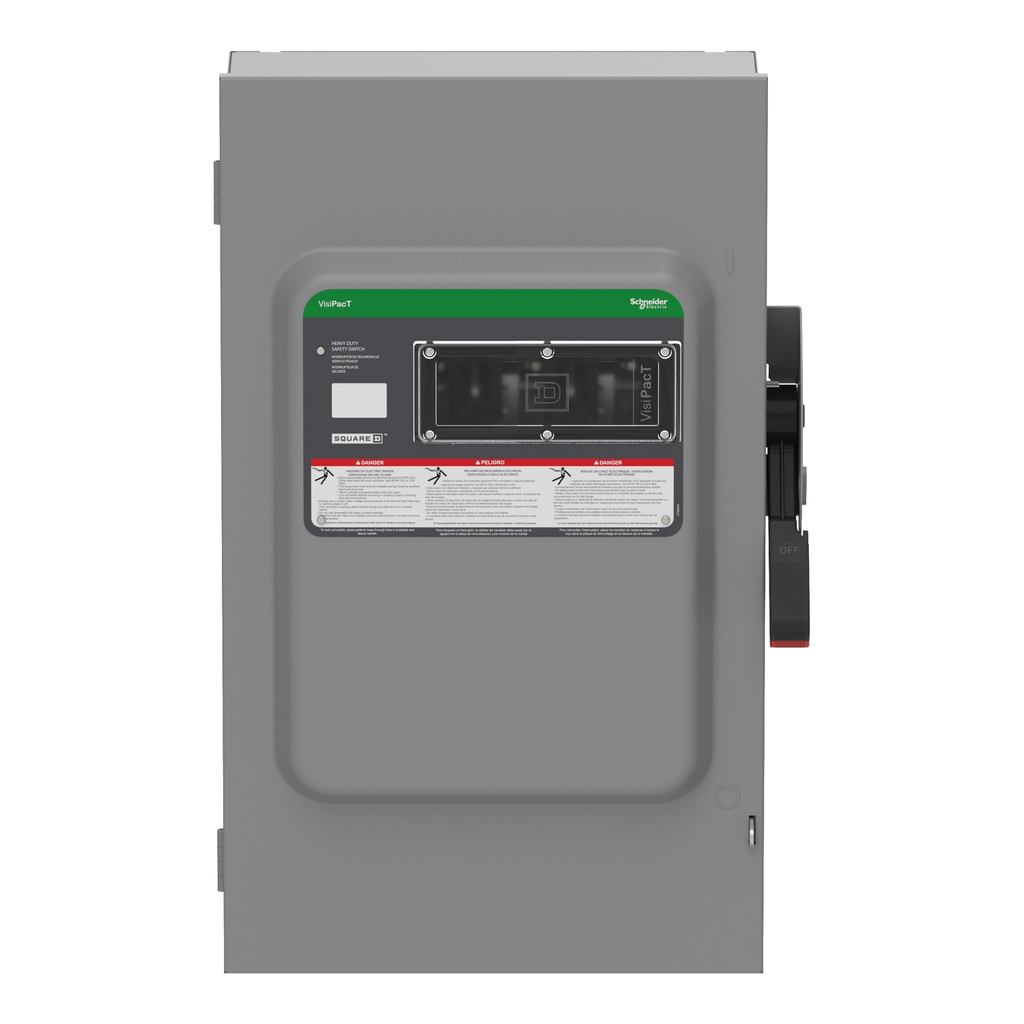

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This two blade fusible heavy duty safety switch that is rated at 200A with a voltage 240 VAC and 250 VDC. This fusible disconnect has a short circuit rating of 200 kA. This switch is Type 1 rated with a steel enclosure and comes with factory installed viewing window. The device accepts J fuse types as shipped and can be field modified for H, K, or R fuses, unit is surface mounted. The safety switch has a 3-wire configuration with 2 poles and one solid neutral that is factory installed as well as bonded to the enclosure to meet service equipment requirements. The disconnect comes with factory installed equipment ground lugs. The wire range for this switch is AWG 6…250 kcmil aluminium and copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Specifications
• Country of Origin : United States
• Width : 16.61 in
• Height : 28.93 in
• Weight : 24.27 kg
• Disconnector Device Type : fusible disconnect
• Product Or Component Type : Single Throw Safety Switch
• Series Name : heavy duty
• Nema Degree Of Protection : NEMA 1 steel
• Line Rated Current : 200 A
• Motor Power Hp : 15 hp at 240 V AC 50-60 Hz for 1 phase motors || 25 hp at 240 V AC 50-60 Hz for 3 phase motors || 60 hp at 240 V AC 50-60 Hz for 3 phase motors || 40 hp at 250 V DC
• Device Composition : neutral (factory bonded)
• Device Application : heavy application
• Number Of Poles : 2
• [Ue] Rated Operational Voltage : 250 V DC || 240 V AC
• Complementary
• Height : 28.93 in
• Device Mounting : surface
• Tightening Torque : 275-275 lbf.in 13.3-127 mm² (AWG 6...250 kcmil)
• Suitable Service Entrance For Canada : suitable service entrance for Canada
• Services : factory installation
• Net Weight : 24.27 kg
• Short-Circuit Current : 200 kA for J
• Fuse Type : J
• Electrical Connection : lugs
• Awg Gauge : AWG 6...250 kcmil copper or aluminium
• Wiring Configuration : 3-wire (2P + N)
• Width : 16.61 in
• Depth : 8.6 in
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP2303037EN
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc : Yes
• Circularity Profile : N/A
• Take-Back : No
• Sustainable Packaging : Yes
• Global Warming ; Total Life Cycle​ : 252 kg CO2 eq.
• Eu Rohs Directive : Compliant
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 251.87550286025512
• Environment
• Product Certifications : UL listed file E2875
• Standards : UL98 || CSA C22.2 No 4 || NOM-003-SCFI-2000
