SQUARE D

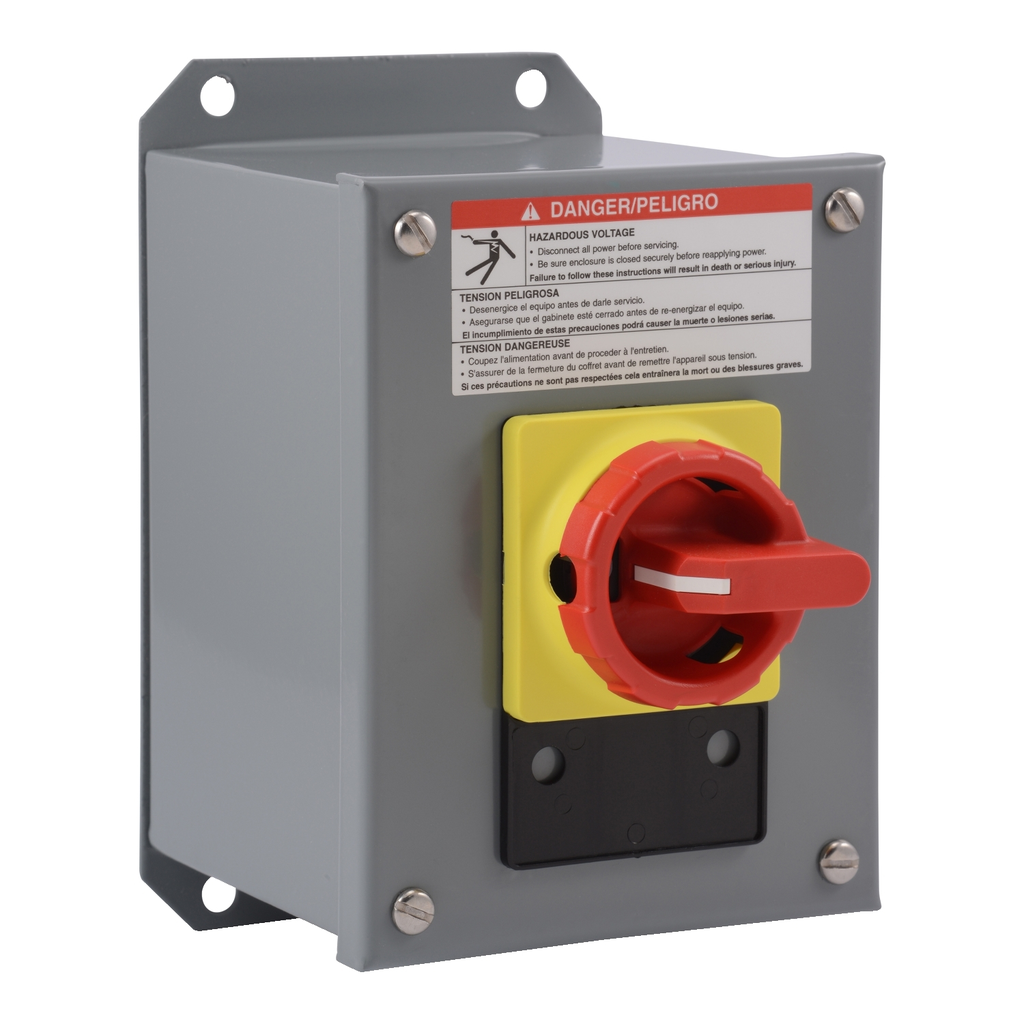

Manual Motor Switch, TeSys Vario, rotary handle, 20A, 3 pole, 10HP at 480V, metallic enclosure, UL Type 12

LOADBREAK SWITCH 600VAC 20A IE

SQD9421V1A30 9421V1A30 785901058908
160.43 / EA
http://schema.org/OutOfStock
Mayer-DDS-Manual Motor Switch, TeSys Vario, rotary handle, 20A, 3 pole, 10HP at 480V, metallic enclosure, UL Type 12-1
  • Depth: 6.25 in
  • Enclosure Material: Metallic Metal
  • Enclosure Type: Dust And Damp Proof Enclosure Indoor
  • Height: 7.38 in
  • Lock Type: Padlockable
  • Warranty Length: 18 mth
  • Width: 5.5 in
Vario manual motor control switches meet UL508 requirements as both enclosed and open manual motor controllers. They are also marked “Suitable as Motor Disconnect” allowing installation on the load side of the motor branch circuit short circuit and ground fault protection. These manual motor control switches include switches mounted in enclosure with a handle. The switch has a 20A current rating and a 5 HP at 240 V, 10 HP at 480V and a 10 HP at 600V ratings per UL508. The switch has a 32A current rating and a 5.5 kW at 230V and 240 V, 11 kW at 400V 415V and 500V and a 15 kW at 690V ratings per IEC. A KCD1YZ low profile handle is used for this device. This 60 mm by 60 mm single hole handle assembly has a red handle and yellow bezel. This switch is mounted in a metallic NEMA Type 12 enclosure. This manual motor control switch is 7.38 inches tall, 5.50 inches wide and 6.25 inches deep. This switch has no auxiliary contacts. This manual motor control switch is UL Listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Vario manual motor control switches meet UL508 requirements as both enclosed and open manual motor controllers. They are also marked “Suitable as Motor Disconnect” allowing installation on the load side of the motor branch circuit short circuit and ground fault protection. These manual motor control switches include switches mounted in enclosure with a handle. The switch has a 20A current rating and a 5 HP at 240 V, 10 HP at 480V and a 10 HP at 600V ratings per UL508. The switch has a 32A current rating and a 5.5 kW at 230V and 240 V, 11 kW at 400V 415V and 500V and a 15 kW at 690V ratings per IEC. A KCD1YZ low profile handle is used for this device. This 60 mm by 60 mm single hole handle assembly has a red handle and yellow bezel. This switch is mounted in a metallic NEMA Type 12 enclosure. This manual motor control switch is 7.38 inches tall, 5.50 inches wide and 6.25 inches deep. This switch has no auxiliary contacts. This manual motor control switch is UL Listed and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL listed file E164864 CCN NLRV || CSA LR81630 class 3211 05
    • Nema Degree Of Protection : NEMA 12
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Under investigation
  • Complementary
    • Height : 7.38 in
    • Auxiliary Contact Composition : without
    • Device Mounting : surface
    • Maximum Horse Power Rating : 5-5 hp 240 V AC || 10-10 hp 480/600 V AC
    • Depth : 6.25 in
    • Permissible Voltage : 600 V AC
    • Enclosure Material : metallic metal
    • Line Rated Current : 20 A
    • Width : 5.5 in
  • Specifications
    • Country of Origin : Mexico
    • Width : 5.5 in
    • Height : 7.38 in
    • Range Of Product : VARIO
    • Enclosure Type : dust and damp proof enclosure indoor
    • Lock Type : padlockable
    • Color : red/yellow
