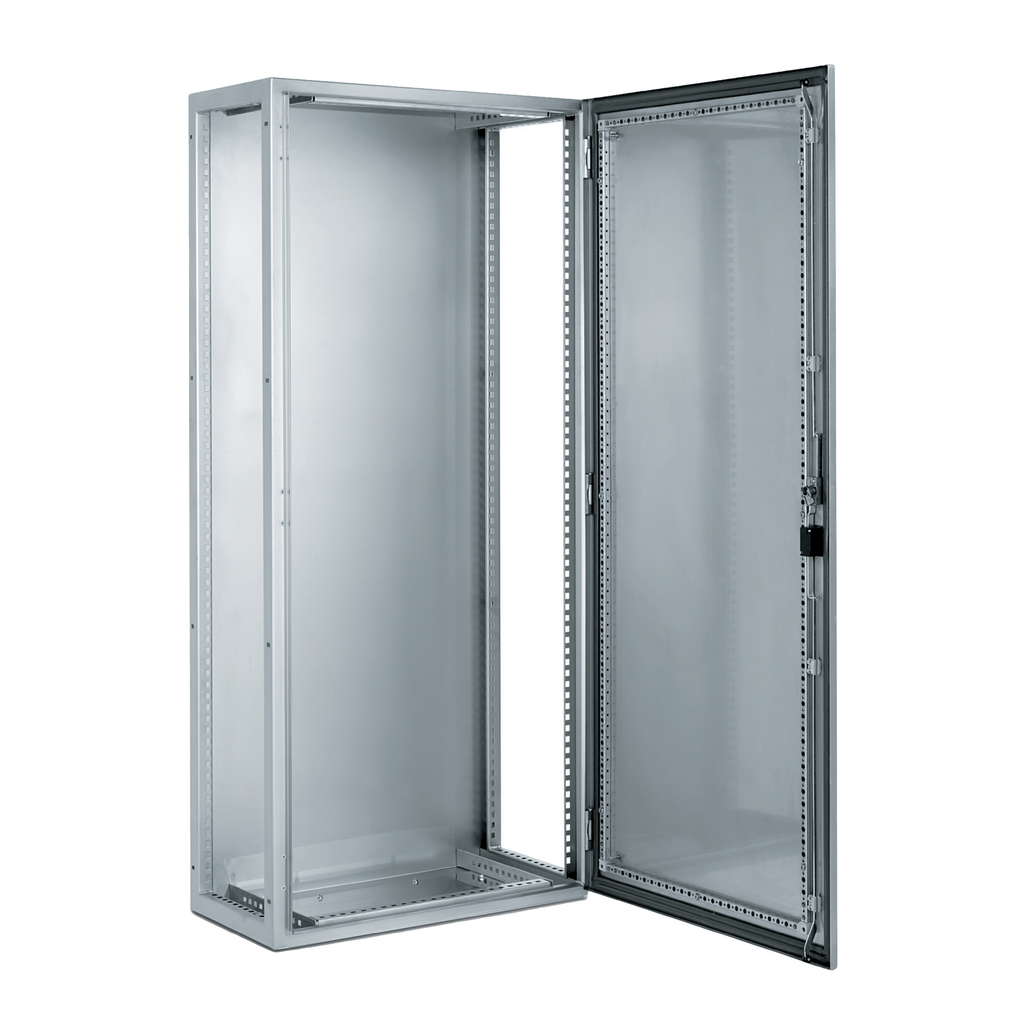

SFX 304L stainless suitable enclosure, H1800xW600xD400mm, Scotch Brite® finish.

SFX 304L STAINLESS SUITABLE EN

SQDNSYSFX18640 NSYSFX18640 3606480155635
3869.66 / EA
http://schema.org/OutOfStock
Mayer-DDS-SFX 304L stainless suitable enclosure, H1800xW600xD400mm, Scotch Brite® finish.-1
  • Body Type: Rear Panel Integrated, Single Piece Structure Folded And Welded
  • Country of Origin: Bulgaria
  • Door Type: Solid
  • Enclosure Depth: 400 mm
  • Enclosure Height: 1800 mm
  • Enclosure Width: 600 mm
  • Height: 1800 mm
  • Lock Type: 5 mm
  • Net Weight: 80 kg
  • Number of Doors: Front Face 1
  • Surface Finish: Enclosure Scotch-Brite® Brushed || Handle Painted
  • Warranty Length: 18 mth
  • Weight: 80 kg
  • Width: 600 mm
QTY
  • Specifications
  • Environment
    • Product Certifications : UL
    • Ik Degree Of Protection : IK10 IEC 62262
    • Standards : IEC 62208 || NEMA 4X
    • Environmental Characteristic : specific hygiene || corrosive
    • Ip Degree Of Protection : IP66 IEC 60529
  • Contractual warranty
    • Coverage : Core product
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2107011EN
    • Packaging Without Single Use Plastic : No
    • Scip Number : 52da316e-d4e1-4114-85c0-32a03b2934fd
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 0
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 943.2578889516849
    • Carbon Footprint Of The Distribution Phase [A4] : 139 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 20 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 1 248 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 146.2309811070345
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1248.1340998270641
  • Complementary
    • Accessibility For Operation : side || front
    • Removable Parts : door by hinges || mounting plate bracket by screws || cable gland plate by clips
    • Type Of Gland Plate : plain
    • Lock Type : 3 points lock, handle with 5 mm double-bar insert
    • Net Weight : 80 kg
    • Door Opening Side : reversible 120 °)
    • Number Of Doors : front face 1
    • Body Type : single piece structure folded and welded || rear panel integrated
    • Material : structure and door stainless steel 304L || handle zamak || hinge stainless steel
    • Surface Finish : enclosure Scotch-Brite® brushed || handle painted
    • Door Type : Solid
    • Mounting Plate Description : without mounting plate
  • Specifications
    • Country of Origin : Bulgaria
    • Width : 600 mm
    • Height : 1800 mm
    • Weight : 80 kg
    • Installation Accessory Type : floor-standing
    • Product Or Component Type : suitable enclosure
    • Product Name : PanelSeT SFX
    • Device Composition : 1 structure || 1 locking system with handle door || 4 mounting plate bracket || 1 cable gland plate || 1 door with reinforcement frame
    • Enclosure Nominal Height : 1800 mm
    • Range : PanelSeT
    • Enclosure Nominal Depth : 400 mm
    • Device Application : multi-purpose
    • Enclosure Nominal Width : 600 mm
