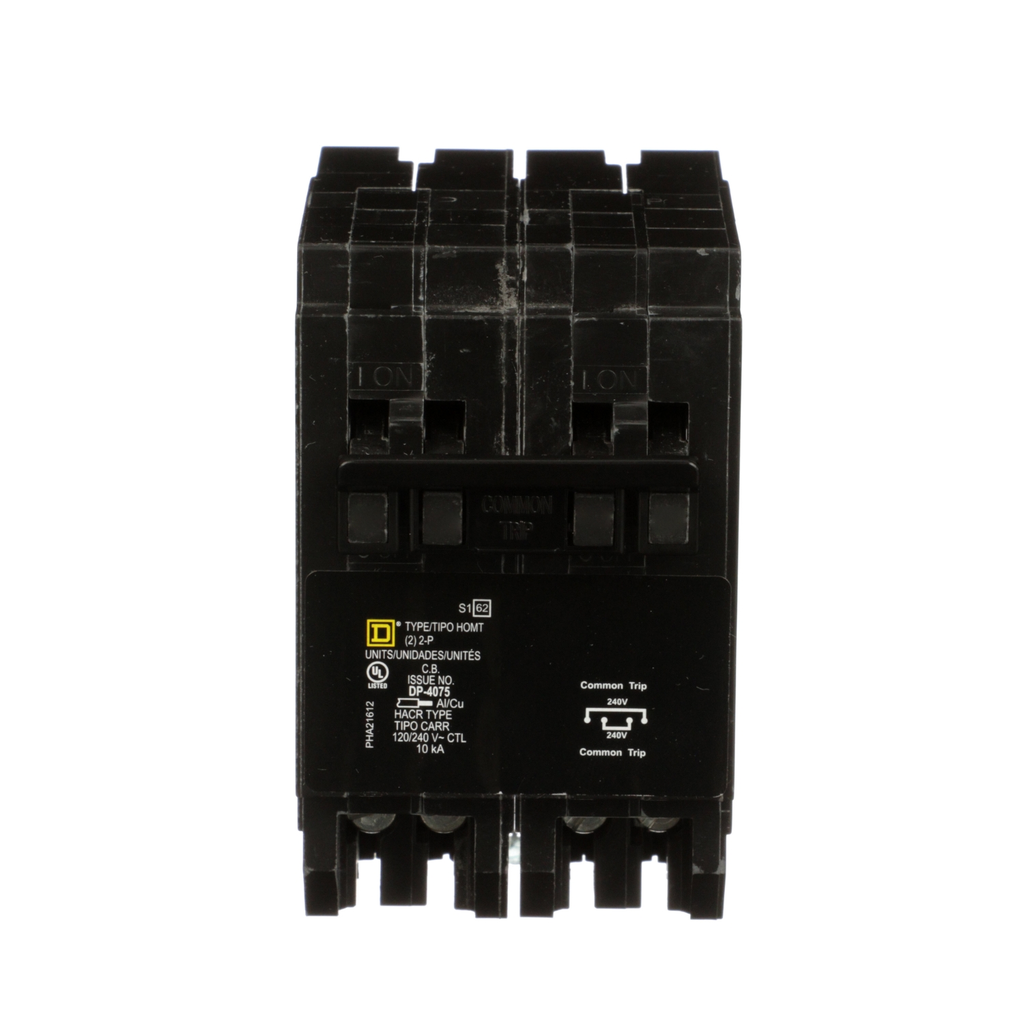

Quad tandem circuit breaker, Homeline, 1 x 2 pole at 30A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL

MINIATURE CKT BRKR 120/240V 23

SQDHOMT230250 HOMT230250 785901970484
130.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Quad tandem circuit breaker, Homeline, 1 x 2 pole at 30A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL-2
  • Country of Origin: Mexico
  • Depth: 3.29 in
  • Height: 3.13 in
  • Width: 1.97 in
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is tw
QTY
  • Product Description
  • Features
  • Specifications
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is tw
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0004591647
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.1 kg CO2 eq.
    • 0.0943536159
  • Ue Rated Operational Voltage
    • 120/240 V AC
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 2 kg CO2 eq.
    • 1.8916406371
  • Accessories
    • HOMTHT
    • HOMQPA
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 22 kg CO2 eq.
    • 21.872
  • Line Rated Current
    • 30 A
    • 50 A
  • Carbon Footprint Of The Distribution Phase A4
    • 0.1155072028
    • 0.1 kg CO2 eq.
  • Tightening Torque
    • 4.0-4.6 N.m 2.5-10 mm² (AWG 14...AWG 6)
    • 4.0-4.6 N.m 2.5-20 mm² (AWG 12...AWG 6)
  • Awg Gauge
    • 1 x AWG 14...AWG 8 ( aluminium/copper )
    • 1 x AWG 14...AWG 6 ( aluminium/copper )
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-18
    • Html Descr : Miniature Breaker, Homeline, Quad, 120/240V, 10kA, 30/50A, UL Listed
    • Manufacturer : Schneider Electric
    • Baan Price : 149.5
    • Baan Currency : USD
    • Device Type : LV equipment - Low voltage circuit breaker
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Manufacturing Carbon Footprint : 1.8916406371
    • Distribution Carbon Footprint : 0.1155072028
    • Installation Carbon Footprint : 0.0004591647
    • Use Carbon Footprint : 21.872
    • End Of Life Carbon Footprint : 0.0943536159
    • Legacy Weee Scope : In
    • Weee Product Category : 4
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 2534
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Wd Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : MCB
    • H And D Enrichment Class 3 : Circuit Breakers
    • H And D Enrichment Class 4 : MCB UL 2P
    • Circuit Breaker Application : HACR rated
    • Circuit Breaker Type : quad tandem
    • Electrical Connection : box lugs
    • Energy Efficiency Optimized : False
    • Mounting Mode : plug-in
    • Number Of Spaces Required : 2
    • Package Weight Lbs : 453.592 g
    • Poles Description : 2P
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : Homeline
    • Returnability : Yes
    • Short Circuit Current : 10 kA
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 24 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 23.9739606205
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : Homeline
  • Environment Attributes
    • Take Back : No
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 23.9739606205
    • Ambient Air Temperature For Operation : 40 °C
    • Environmental Disclosure : ENVPEP1308001EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Specifications
    • Country of Origin : Mexico
    • Height : 3.13 in
    • Width : 1.97 in
    • Depth : 3.29 in
