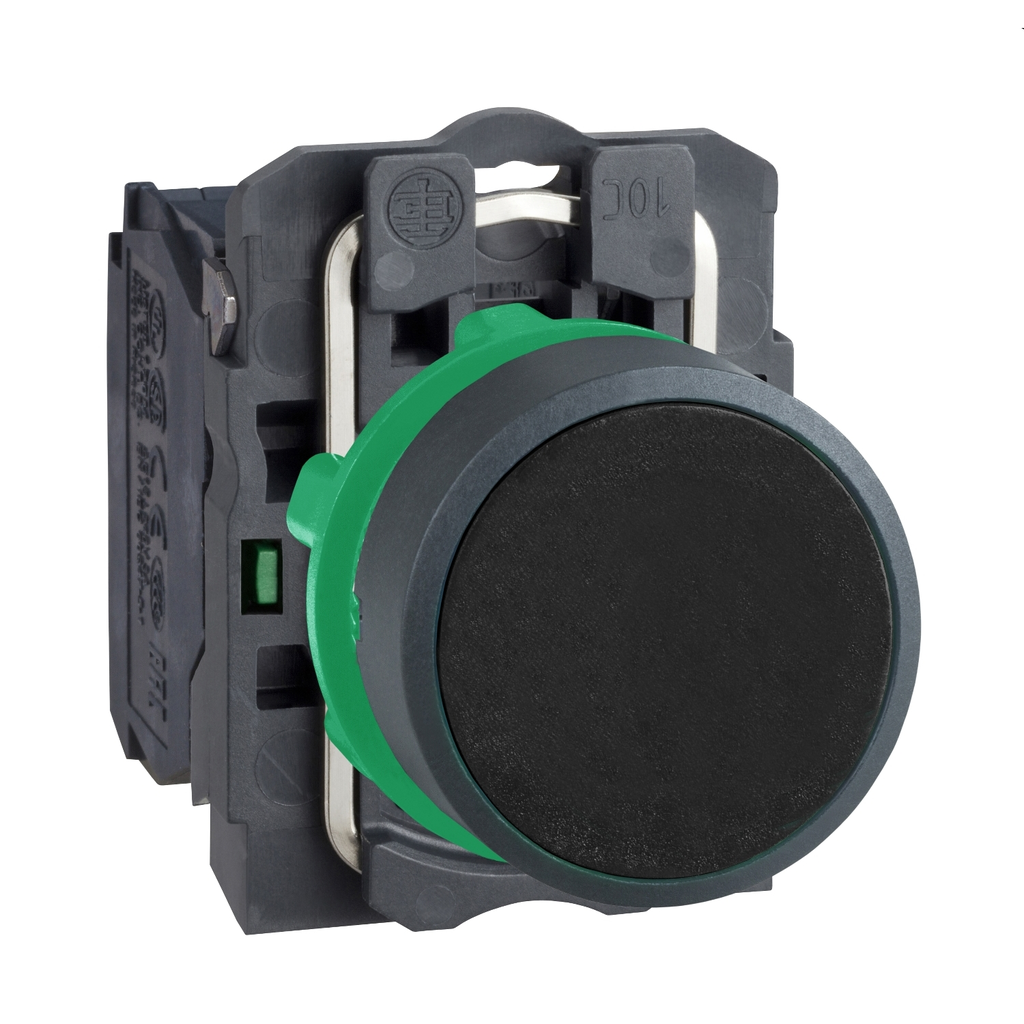

Harmony XB5, Push button, plastic, flush, black, Ø22, spring return, unmarked, 1 NO

PUSHBUTTON 22MM 230VAC 2A XB5

SQDXB5AA21 XB5AA21 3389110903386
37.42 / EA
http://schema.org/OutOfStock
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), RINA, UL Listed
  • Contact Material: Silver Alloy
  • Depth: 52 mm
  • Height: 42 mm
  • Net Weight: 0.037 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
  • Width: 30 mm
This Harmony XB5, modular black push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
QTY
  • Product Description
  • Specifications
This Harmony XB5, modular black push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
  • Specifications
    • Range Of Product : Harmony XB5
    • Mounting Diameter : 22 mm
    • Type Of Operator : spring return
    • Product Or Component Type : push-button
    • Shape Of Signaling Unit Head : round
    • Fixing Collar Material : plastic
    • Head Type : standard
    • Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
    • Contacts Type And Composition : 1 NO
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : plastic || dark grey plastic
    • Contact Operation : slow-break
    • Operator Profile : black flush, unmarked
    • Device Short Name : XB5
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Contacts Usage : standard contacts
    • Height : 42 mm
    • Terminals Description Iso N°1 : (13-14)NO
    • Short-Circuit Protection : 10 A cartridge fuse gG EN/IEC 60947-5-1
    • Operating Force : 3.8 N NO changing electrical state
    • Operating Travel : 2.6 mm NO changing electrical state) || 4.3 mm total travel)
    • Contacts Material : silver alloy (Ag/Ni)
    • Positive Opening : without
    • [Ith] Conventional Free Air Thermal Current : 10 A EN/IEC 60947-5-1
    • Customizable : 1
    • Net Weight : 0.037 kg
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV EN/IEC 60947-1
    • Device Presentation : complete product
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Gcr Bridge : XB5AACUST01
    • [Ui] Rated Insulation Voltage : 600 V 3)EN/IEC 60947-1
    • [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
    • Electrical Durability : 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
    • Mechanical Durability : 10000000 cycles
    • Compatibility Code : XB5
    • Customizable : no
    • Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
    • Width : 30 mm
    • Depth : 52 mm
    • Tightening Torque : 0.8-1.2 N.m EN 60947-1
    • Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1710010EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Environment
    • Product Certifications : UL Listed || CSA || RINA || BV || DNV || LROS (Lloyds register of shipping) || GL
    • Ik Degree Of Protection : IK03 IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : EN/IEC 60947-1 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Protective Treatment : TH
