This Harmony XB4 modular blue push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

• Features
• Quick and easy assembly and disassembly
• Robustness to withstand harsh environments
• Various types of connection: screw clamp, connector, Faston connector or spring terminal
• Excellent mechanical connection with operator head
• A wide choice of contact blocks for general purposes or specific applications (low current, standard)
• Large set of accessories to customize your panels
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cap Operator Or Lens Color : blue
• Conformance Attributes
• Product Certifications : CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
• Standards : JIS C8201-5-1, IEC 60947-5-1, IEC 60947-1, UL 508, IEC 60947-5-4, IEC 60947-5-5, CSA C22.2 No 14, JIS C8201-1
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Customizable : no, 1
• Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
• Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
• Operating Travel : 2.6 mm NO changing electrical state), 4.3 mm total travel)
• Shape Of Screw Head : cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Terminals Description ISO N 1 : (13-14)NO, (13-14)NO
• Ie Rated Operational Current2 : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
• Carbon Footprint Of The Distribution Phase A4 : 0.0104616845, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1011909846, 0.1 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0160455516
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.6 kg CO2 eq., 0.5670415184
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0.0034791549
• Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
• Connections Terminals3 : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
• Ie Rated Operational Current5 : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Manufacturer : Square D
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308035EN
• Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Average Percentage Of Recycled Metal Content : 18 %
• Average Percentage Of Recycled Plastic Content : 19 %
• Bezel Material : chromium plated metal
• Cap Operator Or Lens Color : blue
• Compatibility Code : XB4
• Contact Operation : slow-break
• Contacts Material : silver alloy (Ag/Ni)
• Contacts Type And Composition : 1 NO
• Contacts Usage : standard contacts
• Device Short Name : XB4
• Fixing Collar Material : zamak
• GCR Bridge : XB4BACUST01
• Head Type : standard
• Mechanical Durability : 10000000 cycles
• Mounting Diameter : 22.5 mm
• Operating Force : 3.8 N NO changing electrical state
• Operator Profile : blue flush, unmarked
• Overvoltage Category : class I conforming to IEC 60536
• Package Weight Lbs : 79.000 g
• Positive Opening : without
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : push-button
• Product Repair Index : A
• Protective Treatment : TH
• Range Of Product : Harmony XB4
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Shape Of Signaling Unit Head : round
• Short Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
• Sustainable Packaging : Yes
• Tightening Torque : 0.8-1.2 N.m IEC 60947-1
• Total Lifecycle Carbon Footprint : 0.7 kg CO2 eq.
• Type Of Operator : spring return
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Ith Conventional Free Air Thermal Current2 : 10 A IEC 60947-5-1
• Ui Rated Insulation Voltage2 : 600 V 3)IEC 60947-1
• Uimp Rated Impulse Withstand Voltage2 : 6 kV IEC 60947-1
• Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN

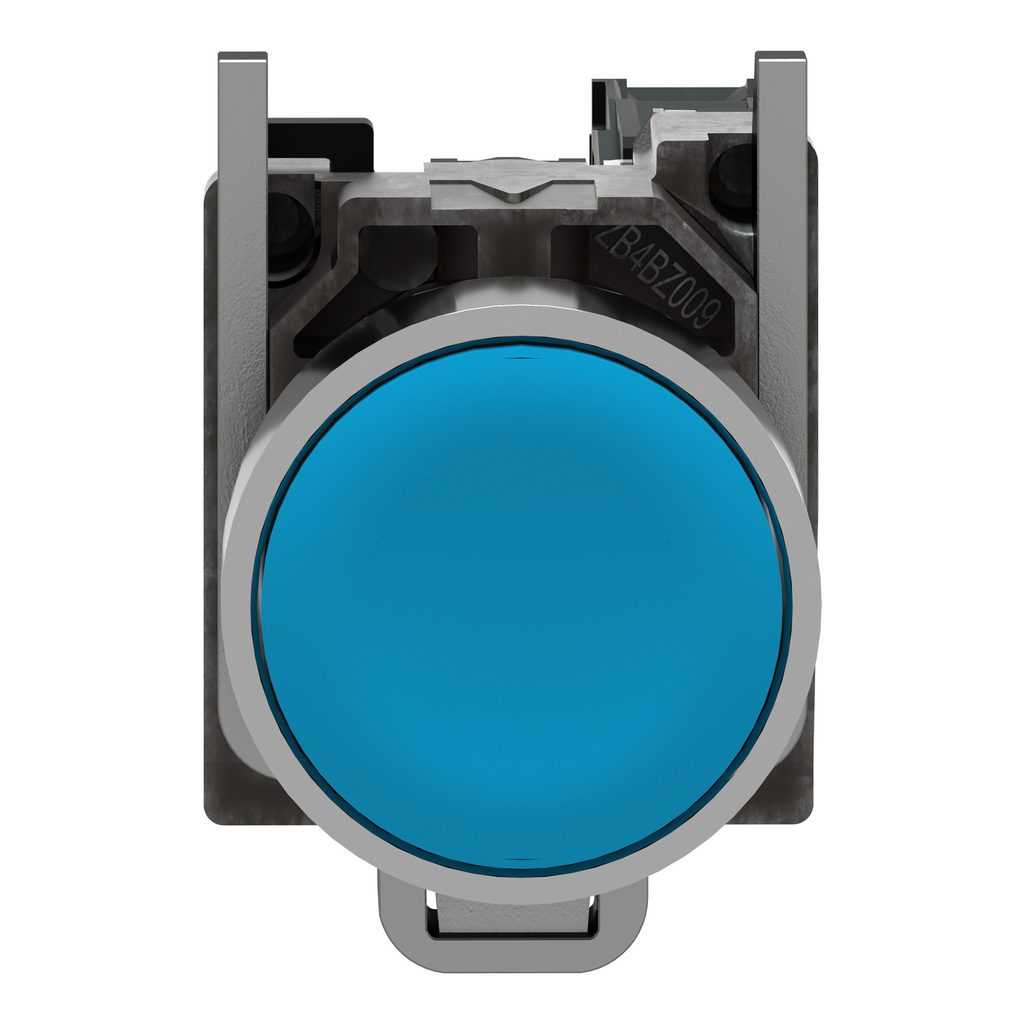

• Medium Desc : Push button, Harmony XB4, metal, flush, blue, 22mm, spring return, unmarked, 1NO
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP2308035_V1-EN
• Database Version : 2022-01
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
• Global Commercial Status : Commercialised
• Ith Conventional Free Air Thermal Current5 : 10 A IEC 60947-5-1
• Ui Rated Insulation Voltage5 : 600 V 3)IEC 60947-1
• Uimp Rated Impulse Withstand Voltage5 : 6 kV IEC 60947-1
• Environment Attributes Main
• Take Back : Nej, No
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP66 IEC 60529, IP67, IP69, IP69K
• Nema Degree Of Protection : NEMA 13, NEMA 4X
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 18 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.698218894
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2308035EN
• Environmental Disclosure : ENVPEP2308035_V1-EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308035_V1-EN
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : push-button
• Range Of Product : Harmony XB4
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Depth : 52 mm
• Overview Attributes
• Device Presentation : complete product
