Head for non illuminated push button, Harmony XB5, plastic, projecting, green, 22mm, spring return, booted, unmarked

NON-ILLUM BOOTED GREEN EXTENDE

SQDZB5AP3 ZB5AP3 3389110906653
25.07 / EA
http://schema.org/OutOfStock

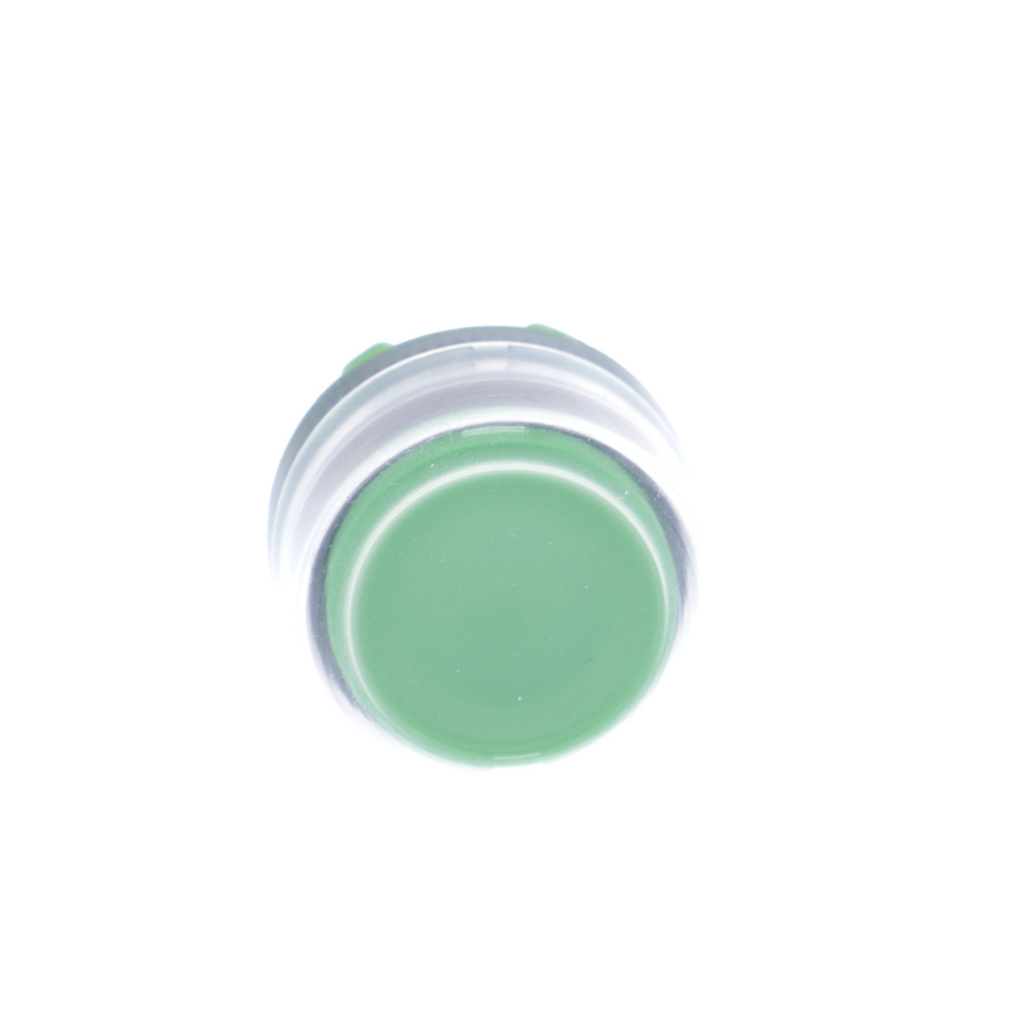

Mayer-DDS-Head for non illuminated push button, Harmony XB5, plastic, projecting, green, 22mm, spring return, booted, unmarked-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.014 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony XB5, clear silicone booted green button head operates with a spring return mechanism. This silicone booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
QTY
  • Product Description
  • Specifications
This Harmony XB5, clear silicone booted green button head operates with a spring return mechanism. This silicone booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Environment
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Standards : JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || UL 508 || JIS C8201-1
    • Ik Degree Of Protection : IK03 IEC 50102
    • Protective Treatment : TH
    • Product Certifications : CSA || LROS (Lloyds register of shipping) || DNV || UL Listed || GL || BV
    • Overvoltage Category : class II IEC 60536
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
    • Ambient Air Temperature For Operation : -40-70 °C
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ambient Air Temperature For Storage : -40-70 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI1710010EN
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Sustainable Offer Status : Green Premium product
    • Rohs Exemption Information : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Complementary
    • Cad Overall Height : 30 mm
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
    • Cad Overall Depth : 35 mm
    • Mechanical Durability : 10000000 cycles
    • Cad Overall Width : 30 mm
    • Net Weight : 0.014 kg
    • Device Presentation : basic element
  • Specifications
    • Bezel Material : dark grey plastic
    • Shape Of Signaling Unit Head : round
    • Operator Profile : green projecting, unmarked
    • Range Of Product : Harmony XB5
    • Product Or Component Type : head for non-illuminated push-button
    • Operator Additional Information : clear boot
    • Sale Per Indivisible Quantity : 1
    • Product Compatibility : not compatible with legend holder
    • Device Short Name : ZB5
    • Head Type : standard
    • Mounting Diameter : 22 mm
    • Type Of Operator : spring return
