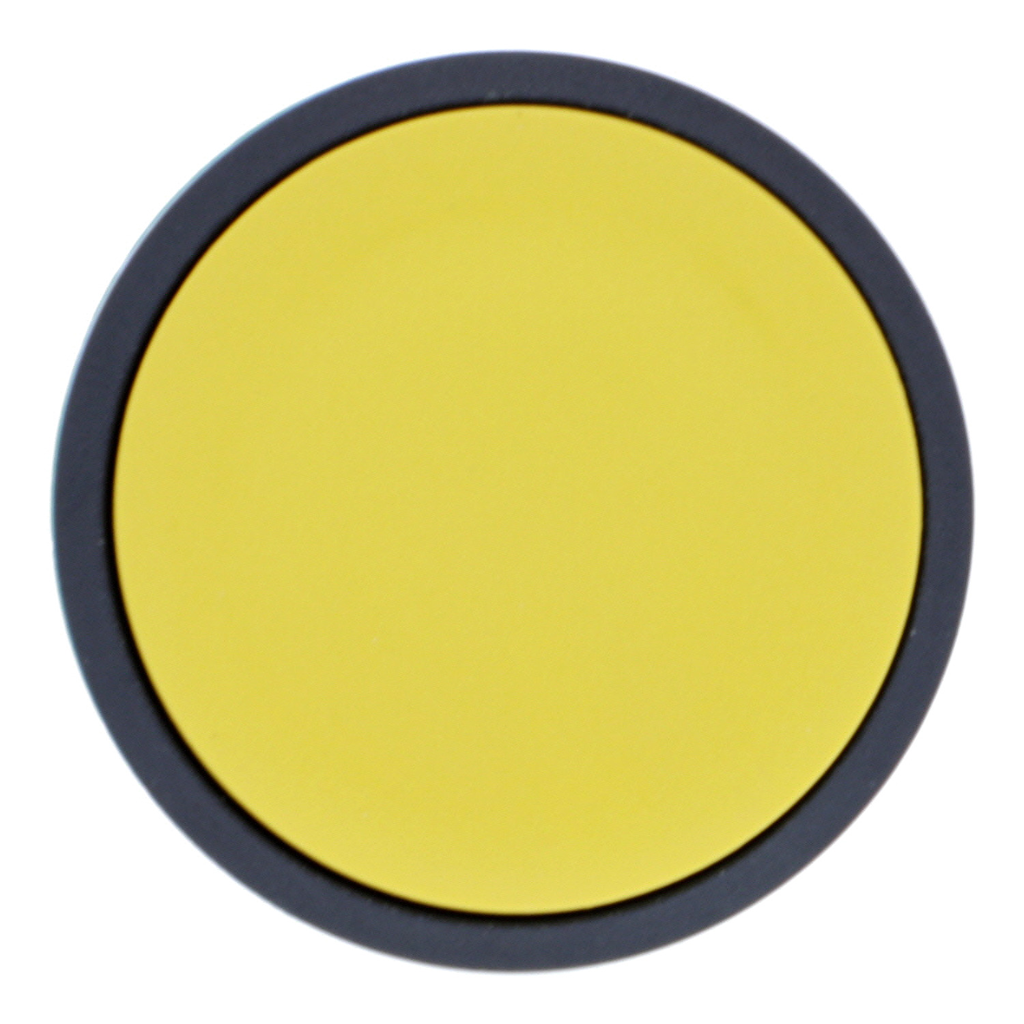

Harmony XB5, Push button head, plastic, flush, yellow, Ø22, spring return, unmarked

Harmony XB5, Push button head, plastic, flush, yellow, Ø22, spring return, unmarked

SQDZB5AA5 ZB5AA5 785901373162
12.33 / EACH
  • Bezel Material: Dark Grey Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Net Weight: 0.018 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony XB5, flush yellow button head operates with a spring return mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Product Description
  • Specifications
This Harmony XB5, flush yellow button head operates with a spring return mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Complementary
    • Mechanical Durability : 10000000 cycles
    • Cad Overall Depth : 28 mm
    • Cad Overall Width : 29 mm
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
    • Cad Overall Height : 29 mm
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Net Weight : 0.018 kg
    • Device Presentation : basic element
  • Type Of Operator : spring return
  • Operator Profile : yellow flush, unmarked
  • Range Of Product : Harmony XB5
  • Head Type : standard
  • Sale Per Indivisible Quantity : 1
  • Product Or Component Type : head for non-illuminated push-button
  • Mounting Diameter : 22 mm
  • Bezel Material : dark grey plastic
  • Shape Of Signaling Unit Head : round
  • Device Short Name : ZB5
  • Offer Sustainability
    • China Rohs Regulation : X
    • Reach Free Of Svhc : Yes
    • Circularity Profile : ENVEOLI1710010EN
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Environmental Disclosure : ENVPEP1710010EN
    • Rohs Exemption Information : Yes
    • Sustainable Offer Status : Green Premium product
  • Environment
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Protective Treatment : TH
    • Ambient Air Temperature For Storage : -40-70 °C
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Overvoltage Category : class II IEC 60536
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ik Degree Of Protection : IK03 IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Product Certifications : UL Listed || GL || DNV || LROS (Lloyds register of shipping) || BV || CSA
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
  • Contractual warranty
    • Warranty : 18 months
