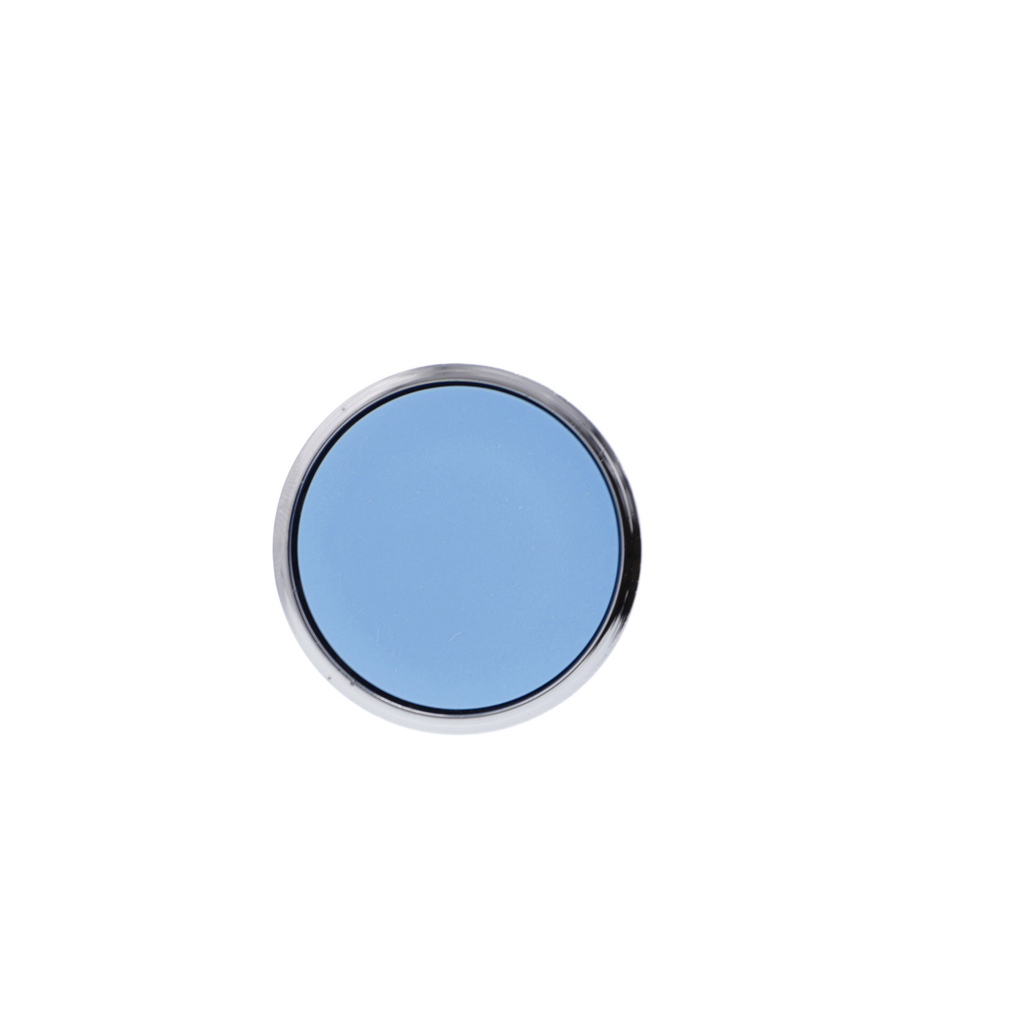

Harmony XB4, Push button head, metal, flush, blue, Ø22, spring return, unmarked

Harmony XB4, Push button head, metal, flush, blue, Ø22, spring return, unmarked

SQDZB4BA6 ZB4BA6 785901371212
8.00 / EACH
  • Bezel Material: Chromium Plated Metal
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony XB4, blue button head operates with a spring return mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Product Description
  • Specifications
This Harmony XB4, blue button head operates with a spring return mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Specifications
    • Range Of Product : Harmony XB4
    • Mounting Diameter : 22 mm
    • Type Of Operator : spring return
    • Product Or Component Type : head for non-illuminated push-button
    • Shape Of Signaling Unit Head : round
    • Head Type : standard
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : chromium plated metal
    • Operator Profile : blue flush, unmarked
    • Device Short Name : ZB4
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
    • Cad Overall Height : 29 mm
    • Device Presentation : basic element
    • Mechanical Durability : 10000000 cycles
    • Cad Overall Width : 29 mm
    • Cad Overall Depth : 28 mm
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1808008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Environment
    • Product Certifications : GL || BV || DNV || LROS (Lloyds register of shipping) || CSA || UL Listed
    • Ik Degree Of Protection : IK06 IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class I IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Protective Treatment : TH
