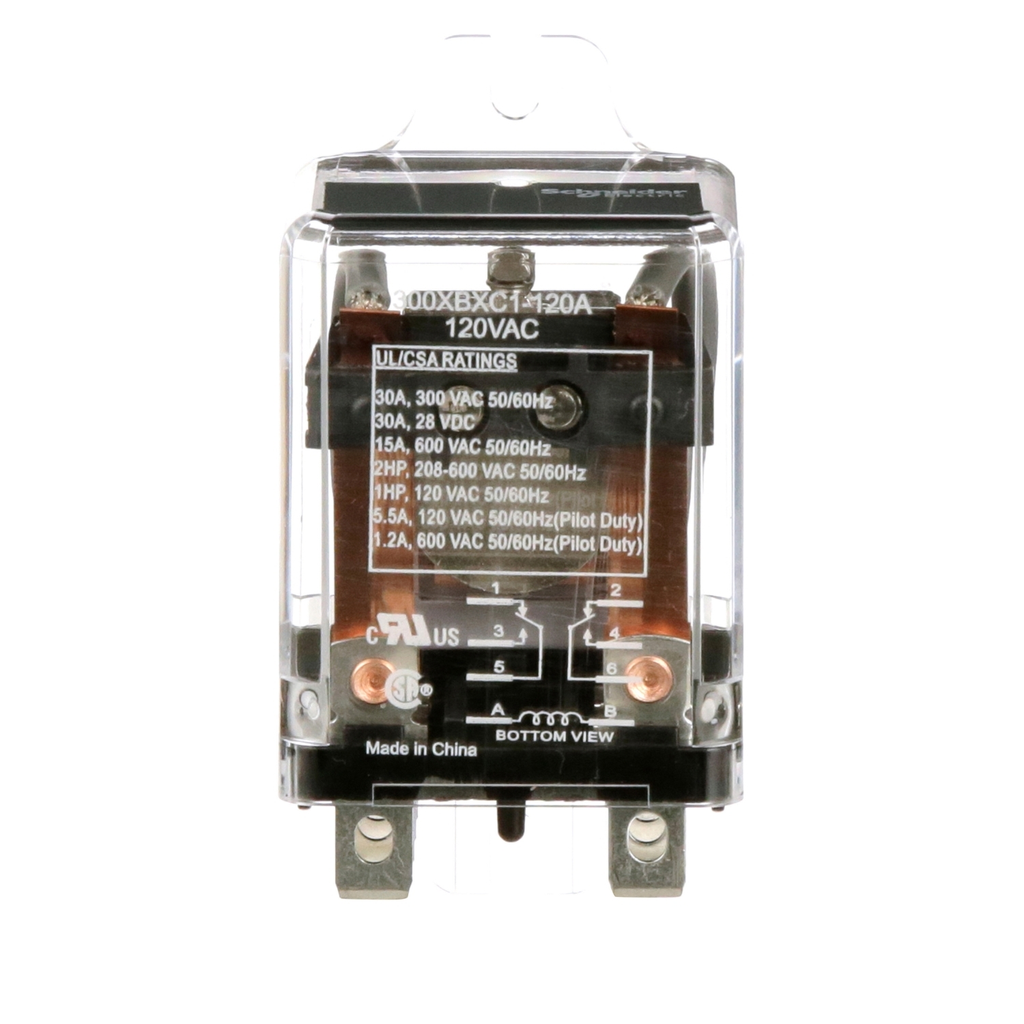

This product belongs to Schneider Electric, an offer of 300 series power relay range. It offers a high contact rating with a magnetic blowout of 30A at 300V AC. This product can hold motor loads up to 2HP at 208V to 600V AC with a nominal coil voltage of 120V AC. Its maximum switching voltage of 600V and improved dielectric strength of 4000V(rms) between mutually isolated conductive elements and frame make it suitable for high-power switching applications. It offers a DPDT (double pole double throw) contact configuration with increased space between stationary contact terminals. This makes it an ideal solution for various application requirements and also enables the use of fully booted Quick Connect terminals. Its dimensions are 37.8mm (width) x 73.6mm (height) x 34.5mm (depth), and it weighs 85g. It has a 2mm contact gap, 8mm creepage, and clearance for mounting that meets international requirements. Its wide range of accessories and the side flange mounting option help increase design and installation flexibility. It complies with directives such as RoHS, WEEE, and REACh relating to environmental protection.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Specifications
• Country of Origin : China
• Width : 37.8 mm
• Height : 73.6 mm
• Weight : 85 g
• Product Or Component Type : power relay
• Contacts Type And Composition : 2 NO + 2 NC
• Switch Function : DPDT
• Environmental data
• Rohs Exemption Information : Yes
• Environmental Disclosure : ENVPEP2312024EN
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc : Yes
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : ENVEOLI2312024EN
• Take-Back : No
• Global Warming ; Total Life Cycle​ : 54 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 53.7911408249
• Complementary
• Voltage Range : 0.85...1.1 Un AC
• Minimum Switching Current : 500 mA 5 V DC
• Height : 73.6 mm
• Connections - Terminals : Quick
• Mounting Support : flange
• Power Consumption In W : 2.3-2.3 W DC
• Contacts Material : silver alloy contacts
• Power Consumption In Va : 3.4-3.4 VA AC
• Input Current : 30 A
• Net Weight : 85 g
• Maximum Switching Voltage : 600 V AC
• Input Voltage : 120 V AC
• [Ie] Rated Operational Current : 30 A at 300 V AC (at nominal load) conforming to UL || 15 A at 600 V AC (at nominal load) conforming to UL || 30 A at 28 V DC (on resistive load) conforming to UL || 5.5 A at 120 V AC (on pilot duty) conforming to UL || 1.2 A at 600 V AC (on pilot duty) conforming to UL
• Input Resistance : 1270 Ohm
• Width : 37.8 mm
• Drop-Out Voltage Threshold : >= 0.1 Uc DC || >= 0.15 Uc AC
• Depth : 34.5 mm
• Maximum Horse Power Rating : 1 hp 120 V AC 50/60 Hz || 2 hp 208/240 V AC 50/60 Hz || 2 hp 480/600 V AC 50/60 Hz
• Environment
• Product Certifications : UL || CSA
• Ambient Air Temperature For Operation : -40-55 °C
• Electrical Durability : 100000 cycles
• Dielectric Strength : 4000 V AC between coil and contact || 2500 V AC between poles || 2500 V AC between contacts
• Ambient Air Temperature For Storage : -40-85 °C
• Mechanical Durability : 5000000 cycles
