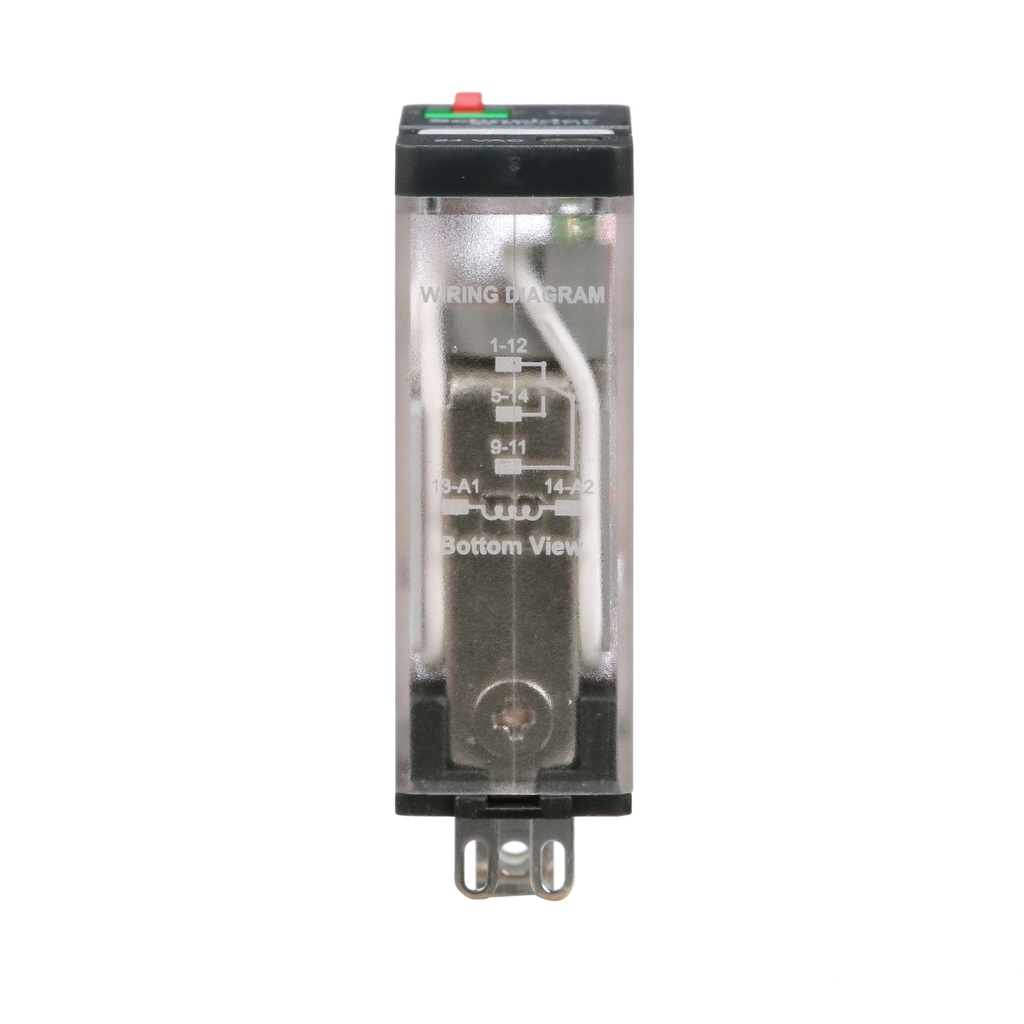

The SE Relays 781R series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Contacts rated as 10A resistive at 277VAC, motor 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VAC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact SPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Slim design of 14 mm width saves valuable space. Mechanical standard flag indicator displays the relay status during testing or operation.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Specifications
• Country of Origin : China
• Width : 21 mm
• Height : 39.8 mm
• Weight : 29 g
• Range Of Product : Legacy
• Product Or Component Type : power relay
• Contacts Type And Composition : 1 NC + 1 NO
• Switch Function : SPDT
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP2403024EN
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc : Yes
• Circularity Profile : ENVEOLI2403024EN
• Take-Back : No
• Sustainable Packaging : Yes
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Environment
• Product Certifications : UL || CE || CSA
• Ambient Air Temperature For Operation : -40-55 °C
• Electrical Durability : 100000 cycles resistive
• Shock Resistance : 15 gn in operation
• Vibration Resistance : +/-1 mm 10-35 Hz) || 3 gn 35-150 Hz)
• Dielectric Strength : 2000 V AC between coil and contact || 2000 V AC between poles || 1500 V AC between contacts
• Ambient Air Temperature For Storage : -40-85 °C
• Mechanical Durability : 10000000 cycles
• Complementary
• Voltage Range : 0.8...1.1 Un AC/DC
• Minimum Switching Current : 10 mA 17 V
• Height : 39.8 mm
• Connections - Terminals : Faston terminals
• Mounting Support : socket
• Power Consumption In W : 1.4-1.4 W DC
• Contacts Material : silver alloy, gold flashed
• Power Consumption In Va : 1.9-1.9 VA AC
• Input Current : 15 A
• Net Weight : 29 g
• Maximum Switching Voltage : 300 V AC UL || 300 V AC CSA || 250 V AC IEC
• Control Type : lockable test button
• Input Voltage : 24 V AC
• [Ie] Rated Operational Current : 15 A at 120...277 V AC conforming to UL || 15 A at 28 V DC conforming to UL || 15 A at 120/150 V AC conforming to CSA || 10 A at 151/277 V AC conforming to CSA || 15 A at 28 V DC conforming to CSA || 15 A at 250 V AC (NO) conforming to IEC || 15 A at 28 V DC (NO) conforming to IEC || 7.55 A at 250 V AC (NC) conforming to IEC || 7.55 A at 28 V DC (NC) conforming to IEC
• Input Resistance : 177 Ohm
• Operating Time : 20 ms operating || 20 ms tripping
• Local Signalling : LED || flag
• Width : 21 mm
• Drop-Out Voltage Threshold : >= 0.15 Uc AC || >= 0.1 Uc DC
• Depth : 27.3 mm
• Maximum Horse Power Rating : 0.5 hp 120 V AC 50-60 Hz || 1 hp 277 V AC 50-60 Hz
