Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one 14 t

• Connections Terminals
• line lug 50 lbf.in AWG 3...AWG 2 copper or aluminium
• line lug 50 lbf.in AWG 3...AWG 2 copper or
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Ue Rated Operational Voltage
• 600 V AC/DC
• Electrical Connection
• tin plated aluminium lugs
• Material
• thermoplastic: block
• Number Of Cables
• line 1 , AWG 14...AWG 2, copper or aluminium
• load 1 , AWG 14...AWG 2, copper or aluminium
• load 1 , AWG 14...AWG 2, copp
• Ics Rated Service Breaking Capacity
• 100 kA UL 508 A
• Line Rated Current
• 115-115 A copper
• 90-90 A aluminium
• Number Of Terminals
• 1 line
• 1 load
• Wire Stripping Length
• line: 0.5 in
• Product Certifications
• UL recognized E60616 CCN XCFR2
• CE
• CSA file 70361 class 6228 01

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-05
• Html Descr : Miniature Power Distribution Block , 115A-90A (Cu-Al), 600VAC, 3-Pole, Lugs, Main: (1) 14 to 2 AWG - Branch: (1) 14 to 2 AWG, Type: LB, Lug Material: Tin Plated Aluminum, Block Material: High Impact Thermoplastic
• Manufacturer : Schneider Electric
• Baan Price : 54.39
• Baan Currency : USD
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1909
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Mounting Support : surface mount
• Number Of Poles : 3
• Package Weight Lbs : 99.79 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Miniature Power Distribution Block
• Range Of Product : 9080LB
• Returnability : Yes
• Short Circuit Current : 65 kA
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationshiptype : Compatible relationship
• Accessories : 9080LB13
• General Attributes
• Product Or Component Type : Miniature Power Distribution Block
• Range Of Product : 9080LB
• Environment Attributes
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -40-257 °F
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Product Compatibility : 9080LB13
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States

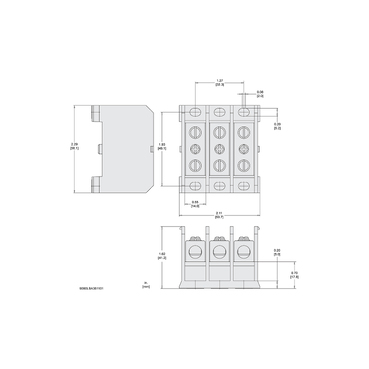

• Height : 2.29 in
• Width : 2.12 in
• Depth : 1.62 in
