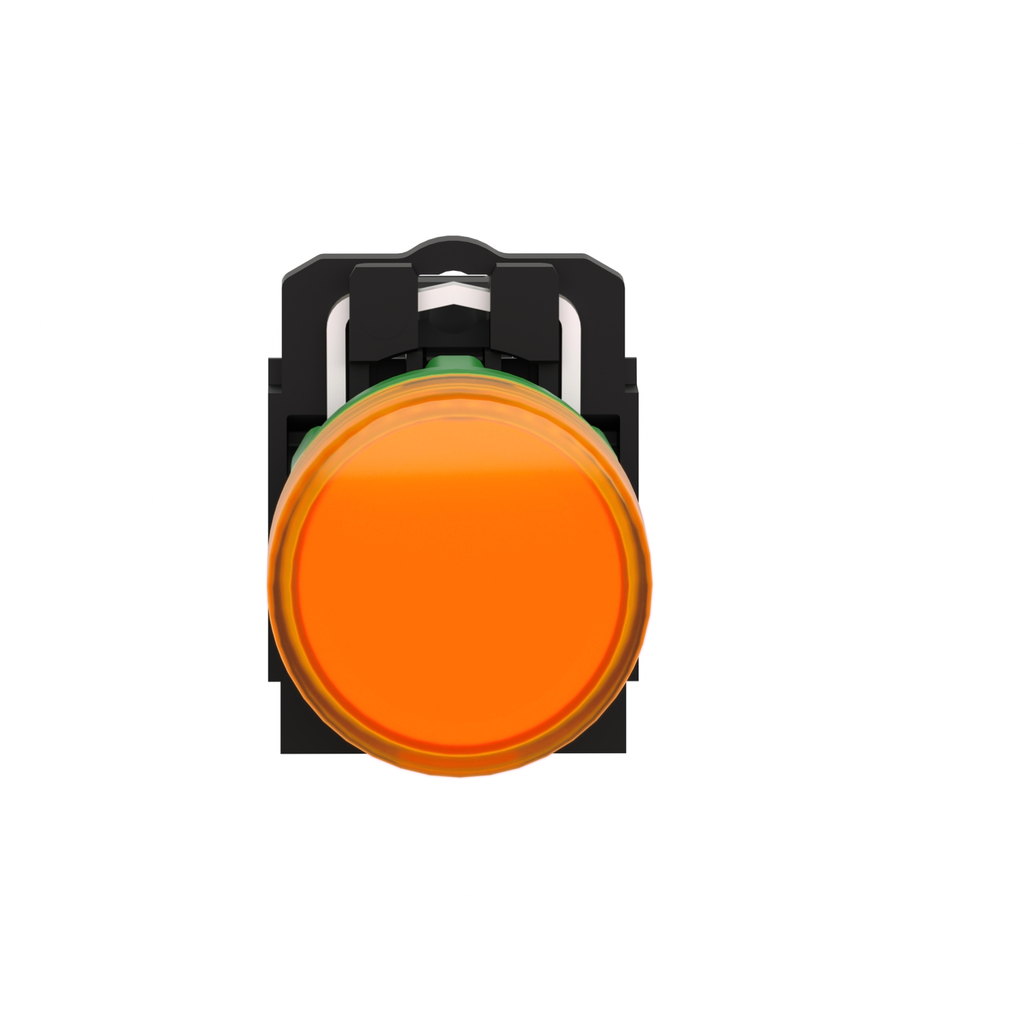

Pilot light, plastic, orange, Ø22, plain lens with integral LED, 110…120 V AC

Pilot light, plastic, orange, Ø22, plain lens with integral LED, 110…120 V AC

SQDXB5AVG5 XB5AVG5 785901384069
68.25 / EACH
  • Bezel Material: Dark Grey Plastic
  • Certifications: CSA, UL Listed
  • Country of Origin: France
  • Current: 14 mA
  • Depth: 2.13 in, 54 mm
  • Height: 1.65 in, 42 mm
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.038 kg, 0.08 lb
  • Width: 1.18 in, 30 mm
This Harmony XB5, plain lens modular orange pilot light is supplied with 110V to 120V AC, uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
  • Product Description
  • Specifications
This Harmony XB5, plain lens modular orange pilot light is supplied with 110V to 120V AC, uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
  • Complementary
    • Height : 1.65 in (42 mm)
    • Ui Rated Insulation Voltage : 250 V 3)EN 60947-1
    • Service Life : 100000 h at rated voltage and 25 °C
    • Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
    • Current Consumption : 14 mA
    • Surge Withstand : 1 kV IEC 61000-4-5
    • Width : 1.18 in (30 mm)
    • Supply Voltage Limits : 100…132 V AC
    • Uimp Rated Imp Wstd Voltage : 4 kV EN 60947-1
    • Compatibility Code : XB5
    • Terminals Description ISO n°1 : (X1-X2)PL
    • Depth : 2.13 in (54 mm)
    • Resistance High Press Washer : 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
    • Gcr Bridge : XB5AVCUST04
    • Signalling Type : Steady
    • Product Weight : 0.08 lb(US) (0.038 kg)
  • Contractual Warranty
    • Warranty : 18 months
  • Environment
    • Electromagnetic Emission : Class B IEC 55011
    • Protective Treatment : TH
    • Shock Resistance : 50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Resist Electrostatic Dischrg : 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
    • Vibration Resistance : 5 gn 12…500 Hz)IEC 60068-2-6
    • Resist To Electromagn Fields : 9.14 V/m (10 V/m) IEC 61000-4-3
    • IP Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
    • IK Degree Of Protection : IK05 IEC 50102
    • Ambient Air Temp For Op : -40…158 °F (-40…70 °C)
    • Resistance To Fast Transients : 2 kV IEC 61000-4-4
    • Product Certifications : CSA || UL Listed
    • Standards : CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Overvoltage Category : Class II IEC 60536
    • Electromagnetic Compatibility : Electrostatic discharge 6 kV on contact (on metal parts)) IEC 61000-4-2 || Electrostatic discharge 8 kV in free air (in insulating parts)) IEC 61000-4-2 || Electromagnetic emissionclass B IEC 55011
  • Main
    • Device Presentation : Complete product
    • Us Rated Supply Voltage : 110...120 V AC 50/60 Hz
    • Range Of Product : Harmony XB5
    • Fixing Collar Material : Plastic
    • Product Or Component Type : Pilot light
    • Light Source : Protected LED
    • Shape Of Signaling Unit Head : Round
    • Light Source Colour : Orange
    • Mounting Diameter : 0.87 in (22 mm)
    • Bezel Material : Dark grey plastic
    • Cap/Operator Or Lens Colour : Orange
    • Bulb Base : Integral LED
    • Operator Add Information : With plain lens
    • Sale Per Indivisible Qty : 1
    • Head Type : Standard
    • Device Short Name : XB5
  • Ordering And Shipping Details
    • Returnability : Yes
    • Category : 22467 - PUSHBUTTONS,22MM(PLASTIC) NEW
    • GTIN : 00785901384069
    • Nbr. Of Units In Pkg. : 1
    • Country Of Origin : FR
    • Discount Schedule : CS2
  • Offer Sustainability
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
    • REACh Free Of SVHC : Yes
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
