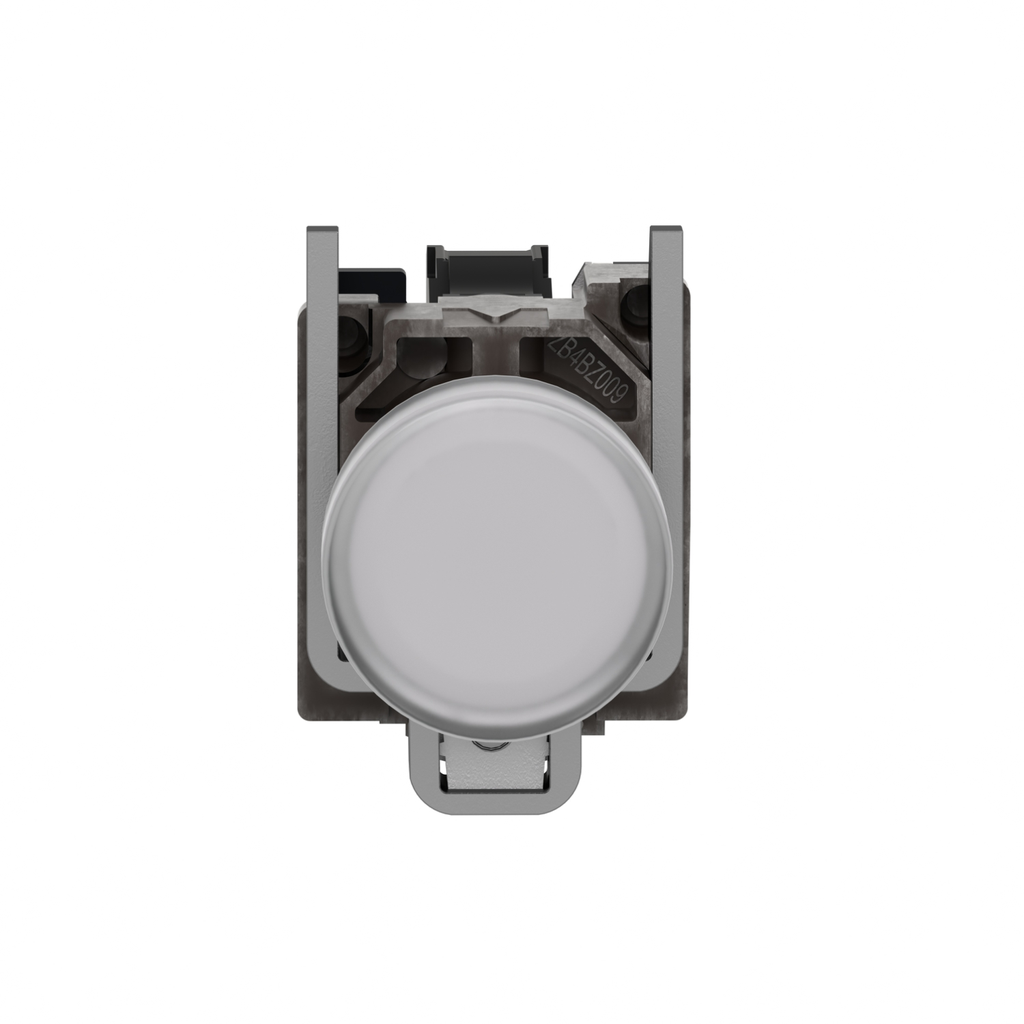

Harmony XB4, Pilot light, metal, white, Ø22, plain lens with integral LED, 24 V AC/DC

Harmony XB4, Pilot light, metal, white, Ø22, plain lens with integral LED, 24 V AC/DC

SQDXB4BVB1 XB4BVB1 785901381273
46.00 / EACH
  • Bezel Material: Chromium Plated Metal
  • Certifications: CSA, UL Listed
  • Current: 18 mA
  • Depth: 54 mm
  • Height: 47 mm
  • Net Weight: 0.08 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
  • Width: 30 mm
This Harmony XB4 plain lens modular white pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
  • Product Description
  • Specifications
This Harmony XB4 plain lens modular white pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
  • Specifications
    • [Us] Rated Supply Voltage : 24 V AC/DC 50/60 Hz
    • Operator Additional Information : with plain lens
    • Range Of Product : Harmony XB4
    • Light Source : protected LED
    • Mounting Diameter : 22 mm
    • Product Or Component Type : pilot light
    • Shape Of Signaling Unit Head : round
    • Cap/Operator Or Lens Colour : white
    • Fixing Collar Material : zamak
    • Head Type : standard
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : chromium plated metal
    • Light Source Colour : white
    • Device Short Name : XB4
    • Bulb Base : integral LED
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Height : 47 mm
    • Terminals Description Iso N°1 : (X1-X2)PL
    • Net Weight : 0.08 kg
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV EN 60947-1
    • Current Consumption : 18 mA
    • Device Presentation : complete product
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
    • Service Life : 100000 h at rated voltage and 25 °C
    • Surge Withstand : 1 kV IEC 61000-4-5
    • [Ui] Rated Insulation Voltage : 250 V 3)EN 60947-1
    • Signalling Type : steady
    • Supply Voltage Limits : 19.2-30 V DC || 21.6-26.4 V AC
    • Width : 30 mm
    • Depth : 54 mm
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1808008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ik Degree Of Protection : IK06 IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
    • Standards : UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 12-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
    • Electrical Shock Protection Class : class I IEC 60536
    • Protective Treatment : TH
    • Resistance To Fast Transients : 2 kV IEC 61000-4-4
    • Electromagnetic Emission : class B IEC 55011
