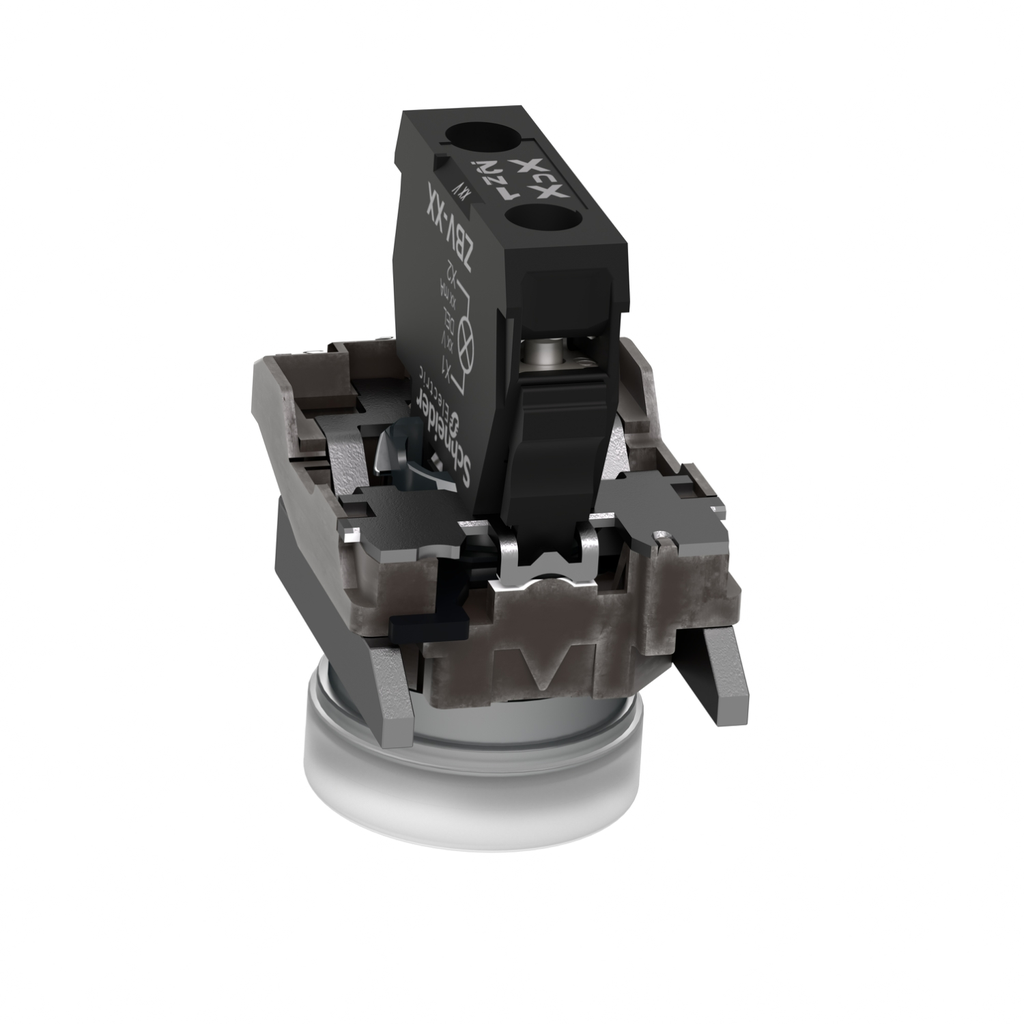

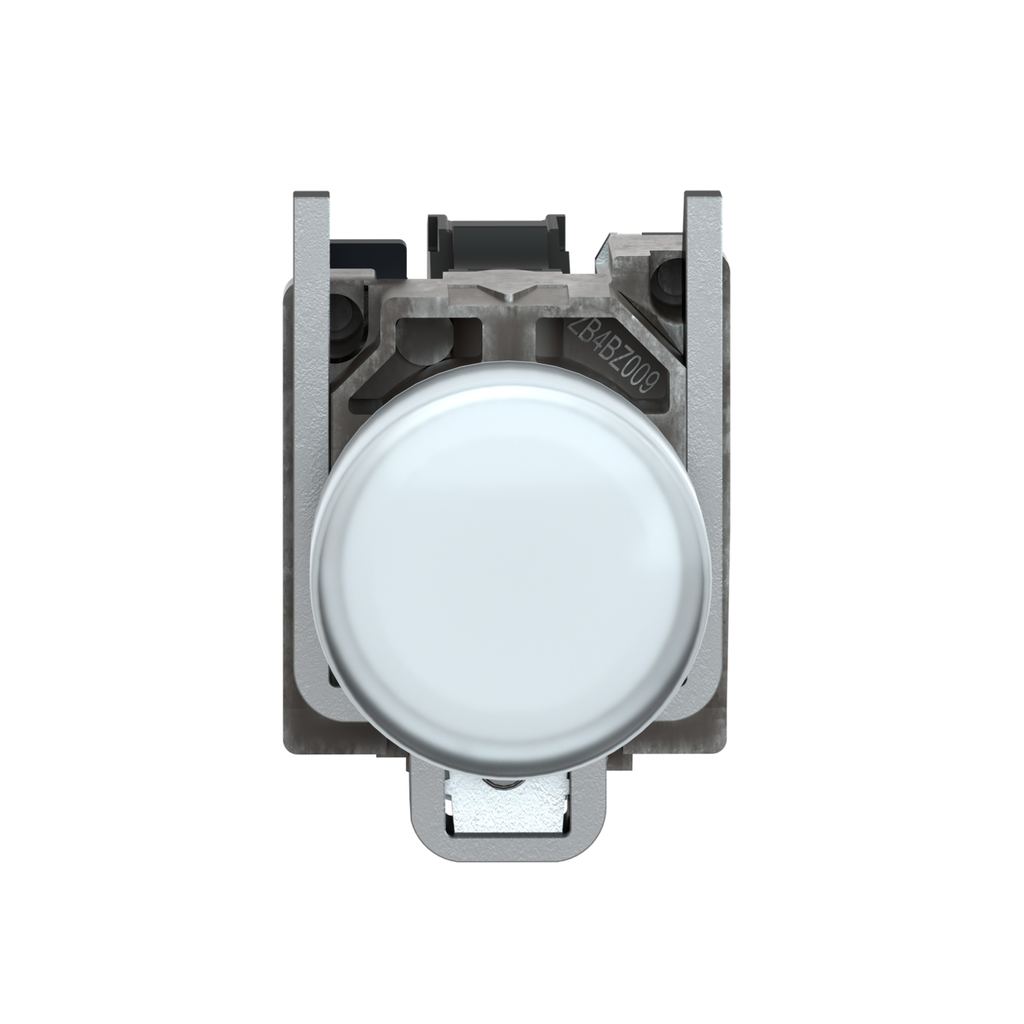

Harmony XB4, Pilot light, metal, white, Ø22, plain lens with integral LED, 230...240 VAC

Harmony XB4, Pilot light, metal, white, Ø22, plain lens with integral LED, 230...240 VAC

SQDXB4BVM1 XB4BVM1 785901914389
68.36 / EACH
  • Bezel Material: Chromium Plated Metal
  • Certifications: CSA, UL Listed
  • Color: White
  • Current: 14 mA
  • Depth: 54 mm
  • Height: 47 mm
  • Net Weight: 0.08 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
  • Width: 30 mm
This Harmony XB4 plain lens modular white pilot light is supplied with 230V to 240V AC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
  • Product Description
  • Specifications
This Harmony XB4 plain lens modular white pilot light is supplied with 230V to 240V AC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
  • Complementary
    • Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
    • Signalling Type : steady
    • Terminals Description Iso N°1 : (X1-X2)PL
    • Current Consumption : 14 mA
    • Net Weight : 0.08 kg
    • [Ui] Rated Insulation Voltage : 250 V 3)EN 60947-1
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV EN 60947-1
    • Height : 47 mm
    • Depth : 54 mm
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Surge Withstand : 1 kV IEC 61000-4-5
    • Device Presentation : complete product
    • Width : 30 mm
    • Service Life : 100000 h at rated voltage and 25 °C
    • Supply Voltage Limits : 195-264 V AC
  • Contractual warranty
    • Warranty : 18 months
  • Environment
    • Ik Degree Of Protection : IK06 IEC 50102
    • Product Certifications : CSA || UL Listed
    • Electrical Shock Protection Class : class I IEC 60536
    • Protective Treatment : TH
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-1
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Vibration Resistance : 5 gn 12-500 Hz)IEC 60068-2-6
    • Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Resistance To Fast Transients : 2 kV IEC 61000-4-4
    • Electromagnetic Emission : class B IEC 55011
    • Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
    • Ambient Air Temperature For Storage : -40-70 °C
  • Offer Sustainability
    • Reach Free Of Svhc : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs Regulation : X
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI1808008EN
    • Rohs Exemption Information : Yes
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Mounting Diameter : 22 mm
  • Cap/Operator Or Lens Colour : white
  • Light Source : protected LED
  • Sale Per Indivisible Quantity : 1
  • Shape Of Signaling Unit Head : round
  • Light Source Colour : white
  • Operator Additional Information : with plain lens
  • Bulb Base : integral LED
  • Head Type : standard
  • Bezel Material : chromium plated metal
  • Range Of Product : Harmony XB4
  • [Us] Rated Supply Voltage : 230...240 V AC 50/60 Hz
  • Device Short Name : XB4
  • Fixing Collar Material : zamak
  • Product Or Component Type : pilot light
