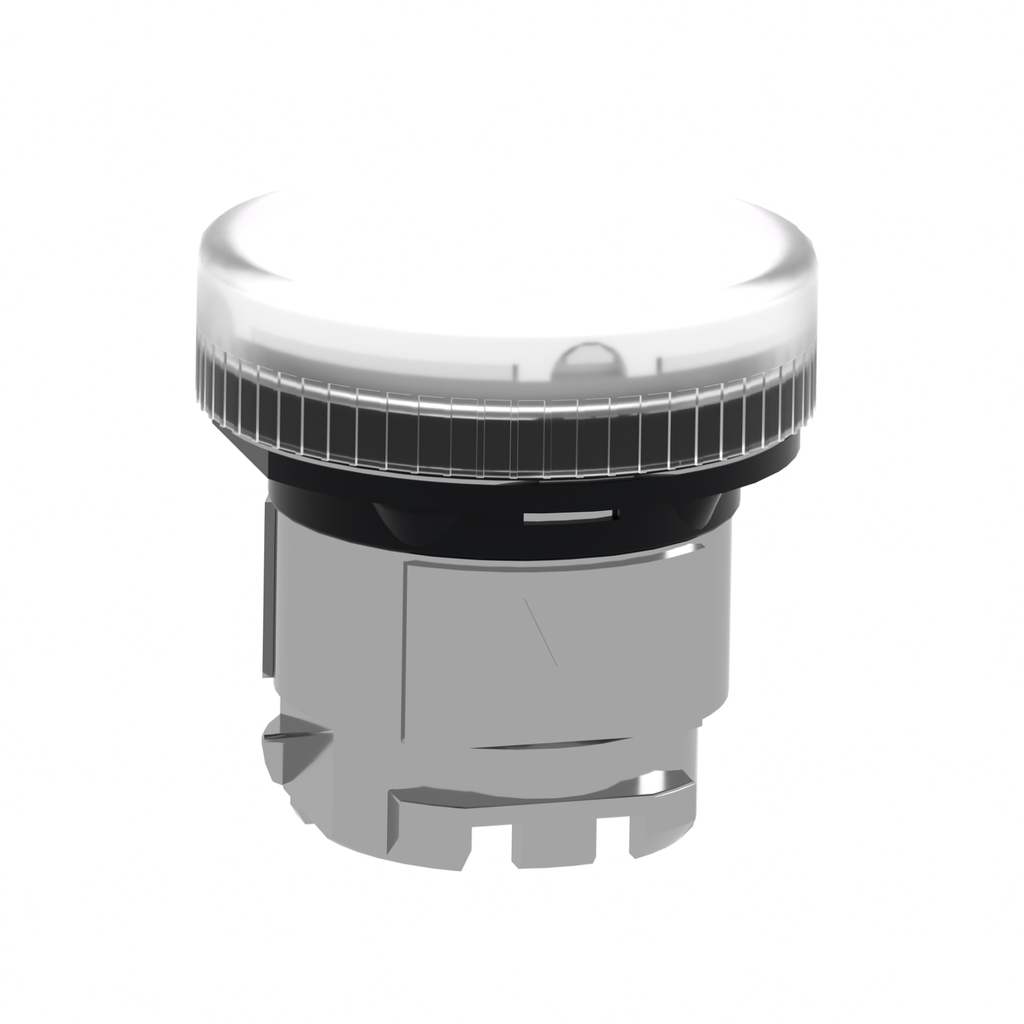

Pilot light head, metal, white, Ø22, plain lens for BA9s bulb

Pilot light head, metal, white, Ø22, plain lens for BA9s bulb

SQDZB4BV01 ZB4BV01 785901371526
7.22 / EACH
  • Bezel Material: Chromium Plated Metal
  • Country of Origin: France
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.027 kg, 0.06 lb
This Harmony XB4, plain lens white head for pilot light is supplied with BA9s base. This head with BA9s base pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Product Description
  • Specifications
This Harmony XB4, plain lens white head for pilot light is supplied with BA9s base. This head with BA9s base pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Environment
    • Standards : EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Ambient Air Temp For Op : -40…131 °F (-40…55 °C)
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Overvoltage Category : Class I conforming to IEC 60536
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Protective Treatment : TH
    • Vibration Resistance : 5 gn 2…500 Hz)IEC 60068-2-6
    • IK Degree Of Protection : IK06 IEC 50102
    • IP Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
  • Offer Sustainability
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Green Premium Status : Green Premium product
    • REACh Free Of SVHC : Yes
    • Mercury Free : Yes
  • Main
    • Product Or Component Type : Head for pilot light
    • Head Type : Standard
    • Range Of Product : Harmony XB4
    • Device Short Name : ZB4
    • Shape Of Signaling Unit Head : Round
    • Sale Per Indivisible Qty : 1
    • Cap/Operator Or Lens Colour : White
    • Operator Add Information : With plain lens
    • Bezel Material : Chromium plated metal
    • Product Compatibility : BA 9s
    • Mounting Diameter : 0.87 in (22 mm)
  • Contractual Warranty
    • Warranty : 18 months
  • Ordering And Shipping Details
    • Nbr. Of Units In Pkg. : 1
    • Country Of Origin : FR
    • Discount Schedule : CS2
    • GTIN : 00785901371526
    • Returnability : Yes
    • Category : 22468 - PUSHBUTTONS,22MM(METAL) NEW
  • Complementary
    • Resistance High Press Washer : 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
    • Cad Overall Width : 1.14 in (29 mm)
    • Cad Overall Depth : 1.22 in (31 mm)
    • Product Weight : 0.06 lb(US) (0.027 kg)
    • Cad Overall Height : 1.14 in (29 mm)
    • Electrical Composition Code : P3 front mounting BA 9s || P4 front mounting BA 9s and transformer
    • Device Presentation : Basic element
