SQUARE D

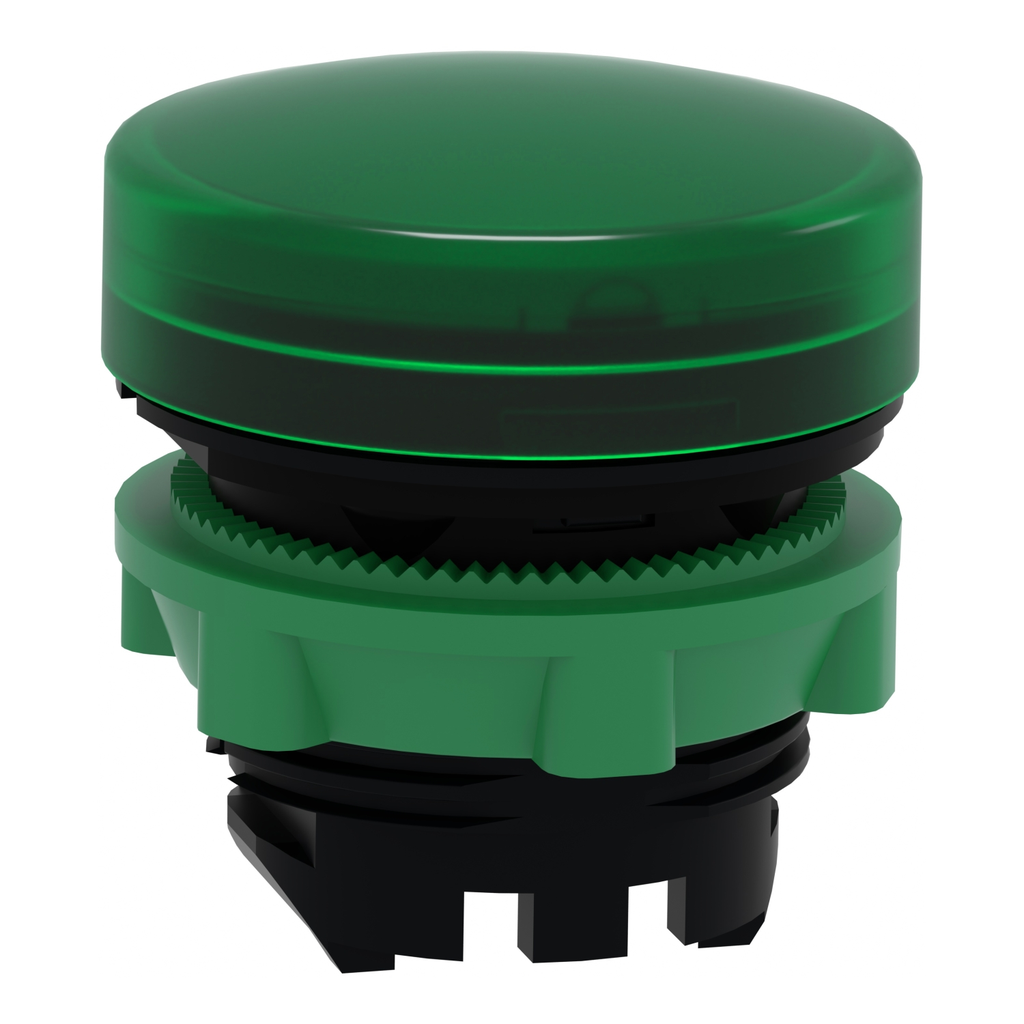

Pilot light head, metal, green, Ø22, plain lens for integral LED

Pilot light head, metal, green, Ø22, plain lens for integral LED

SQDZB5AV033 ZB5AV033 785901355045
7.21 / EACH
  • Bezel Material: Dark Grey Plastic
  • Country of Origin: France
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.017 kg, 0.04 lb
This Harmony XB5, plain lens head for pilot light with integral LED is green. This head for integral LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Product Description
  • Specifications
This Harmony XB5, plain lens head for pilot light with integral LED is green. This head for integral LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Main
    • Product Or Component Type : Head for pilot light
    • Shape Of Signaling Unit Head : Round
    • Head Type : Standard
    • Cap/Operator Or Lens Colour : Green
    • Product Compatibility : Integral LED
    • Mounting Diameter : 0.87 in (22 mm)
    • Device Short Name : ZB5
    • Sale Per Indivisible Qty : 1
    • Bezel Material : Dark grey plastic
    • Operator Add Information : With plain lens
    • Range Of Product : Harmony XB5
  • Contractual Warranty
    • Warranty : 18 months
  • Ordering And Shipping Details
    • Category : 22467 - PUSHBUTTONS,22MM(PLASTIC) NEW
    • Nbr. Of Units In Pkg. : 1
    • Discount Schedule : CS2
    • GTIN : 00785901355045
    • Returnability : Yes
    • Country Of Origin : FR
  • Offer Sustainability
    • REACh Free Of SVHC : Yes
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • Green Premium Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
  • Environment
    • Vibration Resistance : 5 gn 2…500 Hz)IEC 60068-2-6
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • IP Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 conforming to IEC 60529 || IP69K ISO 20653
    • Ambient Air Temp For Op : -40…158 °F (-40…70 °C)
    • IK Degree Of Protection : IK05 IEC 50102
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-1 || UL 508 || JIS C8201-1
    • Protective Treatment : TH
    • Resistance High Press Washer : 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Overvoltage Category : Class II IEC 60536
  • Complementary
    • Device Presentation : Basic element
    • Cad Overall Width : 1.14 in (29 mm)
    • Cad Overall Height : 1.14 in (29 mm)
    • Product Weight : 0.04 lb(US) (0.017 kg)
    • Cad Overall Depth : 1.22 in (31 mm)
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Electrical Composition Code : P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED || PR1 rear mounting integral LED
