SQUARE D

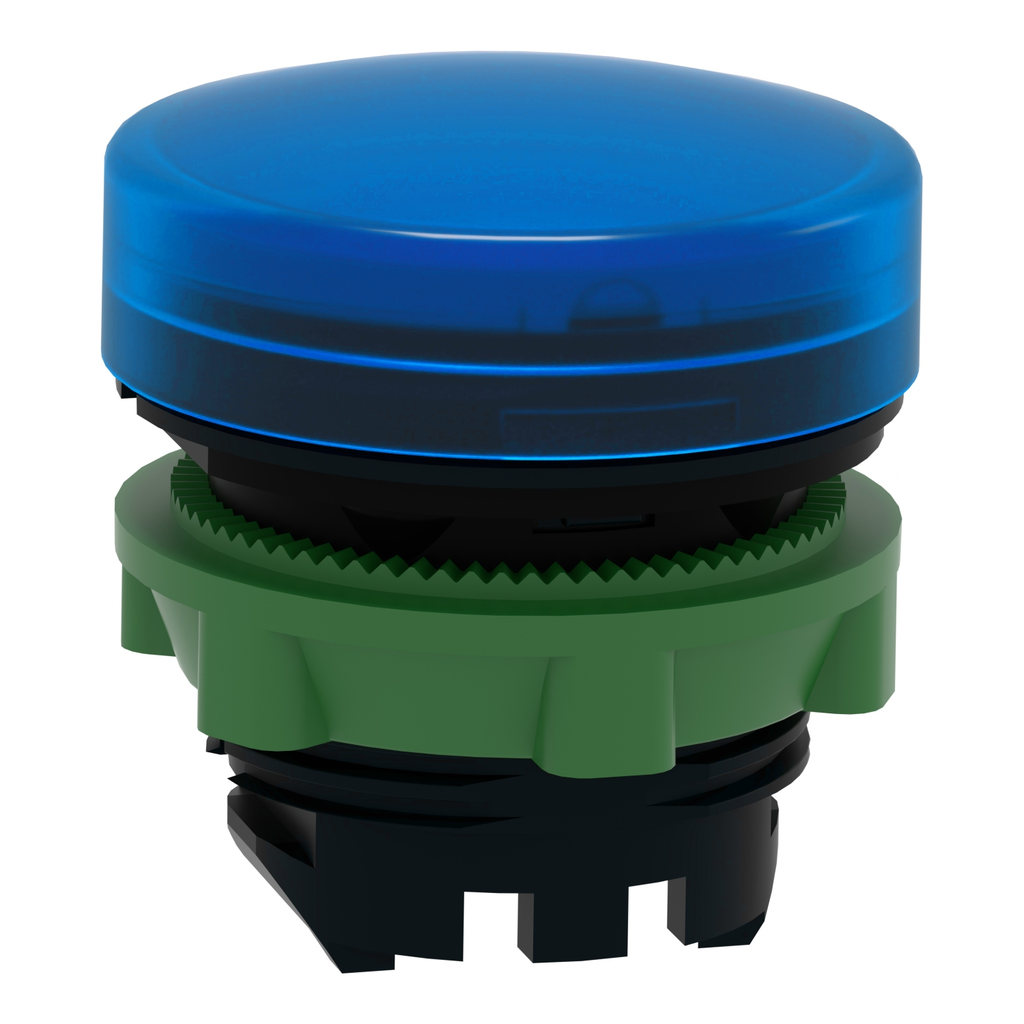

Pilot light head, metal, blue, Ø22, plain lens for integral LED

Pilot light head, metal, blue, Ø22, plain lens for integral LED

SQDZB5AV063 ZB5AV063 785901355076
7.21 / EACH
  • Bezel Material: Dark Grey Plastic
  • Country of Origin: France
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.017 kg, 0.04 lb
This Harmony XB5, plain lens head for pilot light with integral LED is blue. This head for integral LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Product Description
  • Specifications
This Harmony XB5, plain lens head for pilot light with integral LED is blue. This head for integral LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Complementary
    • Cad Overall Height : 1.14 in (29 mm)
    • Cad Overall Depth : 1.22 in (31 mm)
    • Electrical Composition Code : P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED || PR1 rear mounting integral LED
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Device Presentation : Basic element
    • Cad Overall Width : 1.14 in (29 mm)
    • Product Weight : 0.04 lb(US) (0.017 kg)
  • Contractual Warranty
    • Warranty : 18 months
  • Environment
    • Resistance High Press Washer : 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
    • Vibration Resistance : 5 gn 2…500 Hz)IEC 60068-2-6
    • Overvoltage Category : Class II IEC 60536
    • Protective Treatment : TH
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ambient Air Temp For Op : -40…158 °F (-40…70 °C)
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • IK Degree Of Protection : IK05 IEC 50102
    • Standards : UL 508 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-1
    • IP Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 conforming to IEC 60529 || IP69K ISO 20653
  • Ordering And Shipping Details
    • Returnability : Yes
    • Country Of Origin : FR
    • Discount Schedule : CS2
    • Nbr. Of Units In Pkg. : 1
    • GTIN : 00785901355076
    • Category : 22467 - PUSHBUTTONS,22MM(PLASTIC) NEW
  • Main
    • Device Short Name : ZB5
    • Product Compatibility : Integral LED
    • Range Of Product : Harmony XB5
    • Cap/Operator Or Lens Colour : Blue
    • Bezel Material : Dark grey plastic
    • Product Or Component Type : Head for pilot light
    • Mounting Diameter : 0.87 in (22 mm)
    • Operator Add Information : With plain lens
    • Sale Per Indivisible Qty : 1
    • Head Type : Standard
    • Shape Of Signaling Unit Head : Round
  • Offer Sustainability
    • Green Premium Status : Green Premium product
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • REACh Free Of SVHC : Yes
