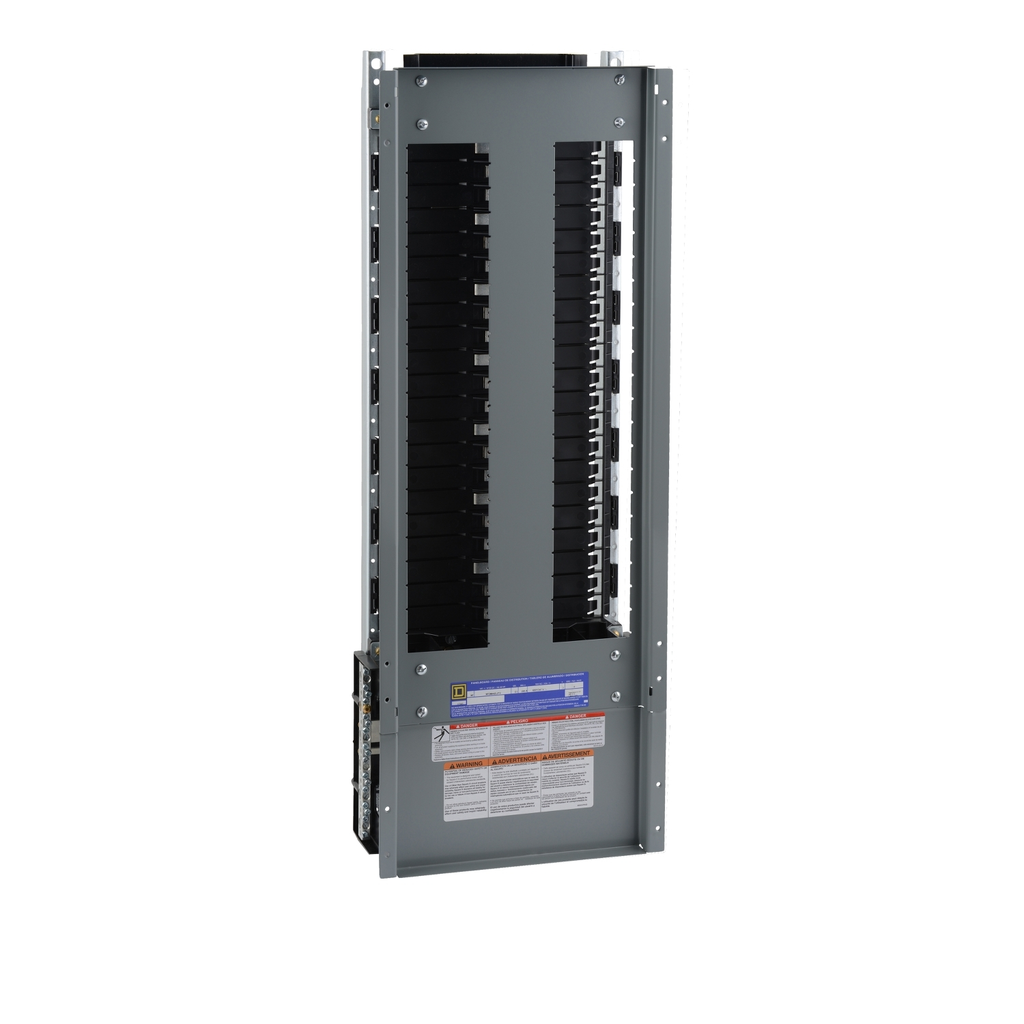

NF Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NF Panelboards are versatile panelboards that feature a wide selection of bolt-on branch cir

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm.
• Standards
• UL
• CSA
• Ue Rated Operational Voltage
• 480Y/277 V AC
• Phase
• 3 phase 4 wires
• Persona Type Names
• End User
• Original Equipment Manufacturer
• Persona Type Ids
• EU
• OM
• Tightening Torque
• 4.52-5.65 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0)
• 11.3-11.3 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0)
• 11.3-11.3 N.m

• Complementary Attributes
• Line Rated Current : 125 A
• Iu Rated Interrupted Current : 65 kA
• Important Information Attributes
• B2B Bullet Point 1 : Ready to install interior assembly
• B2B Bullet Point 2 : Field convertible to top or bottom feed
• B2B Bullet Point 3 : Available as main lug or main breaker
• B2B Bullet Point 4 : Accepts bolt-on EDB, EGB, and EJB miniature circuit breakers
• B2B Bullet Point 5 : 100% rated neutrals standard (accept Al and Cu wire); field installable kits for 200% rated or Cu neutral
• B2B Bullet Point 6 : Kits for compression and subfeed lugs or vertically mounted main circuit breaker
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-23
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 2532
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : L - LOB initialized
• Tier Id : 3
• Tier : 3
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Safety
• H And D Subrange : COM
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Panelboards (equipped)
• H And D Enrichment Class 4 : Fishbone/Disbo panelboard (equipped)
• Circuit Breaker Type : EDB/EDG/EDJ
• Energy Efficiency Optimized : False
• Load Center Type : main breaker
• Material : aluminium
• Number Of Spaces : 42
• Package Weight Lbs : 34.019 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Returnability : No
• Sustainable Packaging : No
• Iu Rated Interrupted Current : 65 kA
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=465368186&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2303002
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Height : 33 in
• Width : 10.44 in
