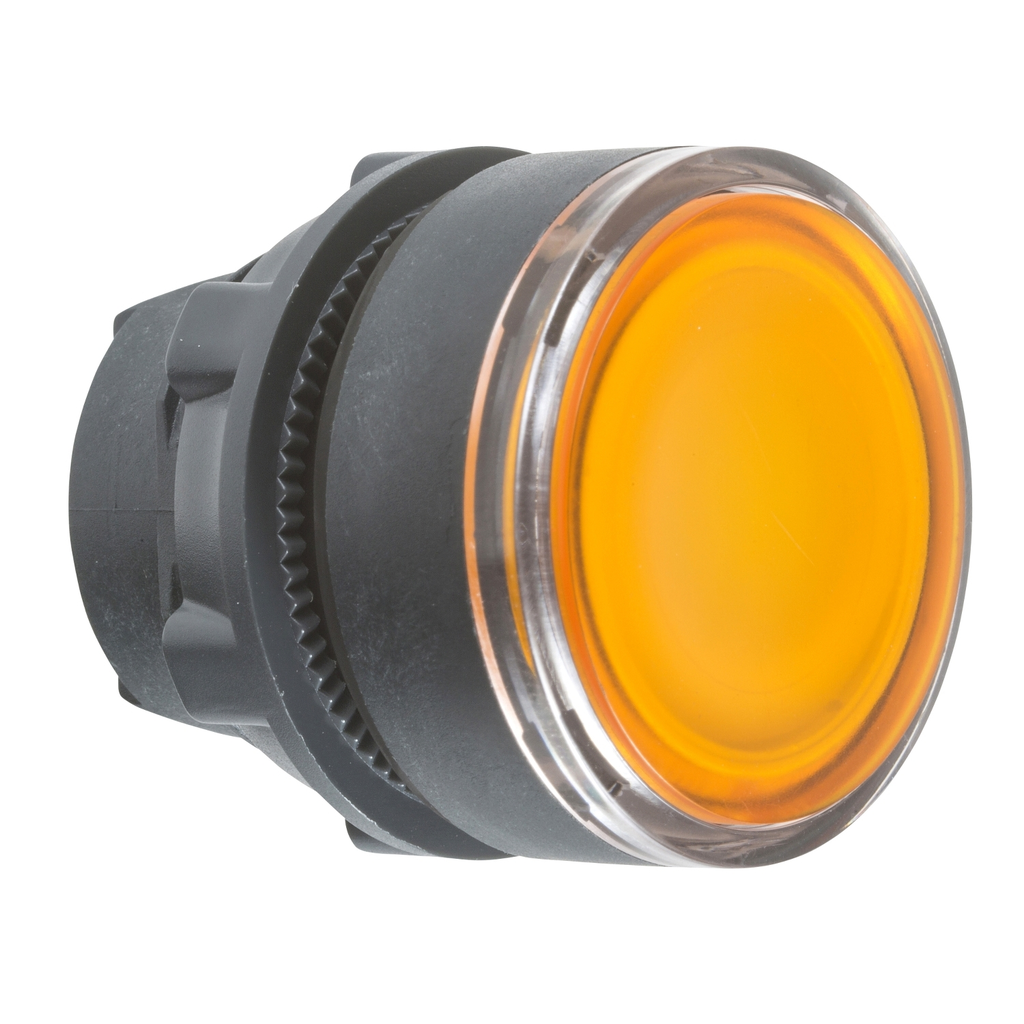

Head for illuminated push button, Harmony XB5, XB4, orange flush pushbutton Ø22 mm spring return BA9s bulb

Head for illuminated push butt

SQDZB5AW35 3389110909975
16.28 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, XB4, orange flush pushbutton Ø22 mm spring return BA9s bulb-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.018 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This orange flush illuminated button head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This orange flush illuminated button head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Environment
    • Ambient Air Temperature For Operation : -40-55 °C
    • Protective Treatment : TC
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Product Certifications : UL Listed || CSA || LROS (Lloyds register of shipping) || DNV || GL || BV
    • Ik Degree Of Protection : IK05 EN 50102
    • Overvoltage Category : class II IEC 60536
    • Standards : GB 14048.5 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-1 || JIS C8201-1
    • Ambient Air Temperature For Storage : -40-70 °C
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Environmental Disclosure : ENVPEP1710010EN
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Circularity Profile : ENVEOLI1710010EN
    • Sustainable Offer Status : Green Premium product
    • Rohs Exemption Information : Yes
    • China Rohs Regulation : X
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Mercury Free : Yes
  • Complementary
    • Net Weight : 0.018 kg
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Cad Overall Width : 29 mm
    • Cad Overall Depth : 32 mm
    • Device Presentation : basic sub-assemblies
    • Cap/Operator Or Lens Colour : orange
    • Mechanical Durability : 10000000 cycles
    • Group Of Product : flush push BA9s
    • Main Group : illum push-button
    • Cad Overall Height : 29 mm
    • Marking : unmarked
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Electrical Composition Code : M7 6 single front mounting BA 9s || M8 6 single and double front mounting BA 9s || M9 2 single front mounting BA 9s and transformer || MF2 2 single front mounting BA 9s
  • Specifications
    • Type Of Operator : spring return
    • Mounting Diameter : 22 mm
    • Head Type : standard
    • Product Compatibility : BA 9s
    • Range Of Product : Harmony XB5
    • Product Or Component Type : head for illuminated push-button
    • Sale Per Indivisible Quantity : 1
    • Operator Additional Information : with plain lens
    • Device Short Name : ZB5
    • Bezel Material : dark grey plastic
    • Operator Profile : orange flush, unmarked
    • Shape Of Signaling Unit Head : round
