SQUARE D

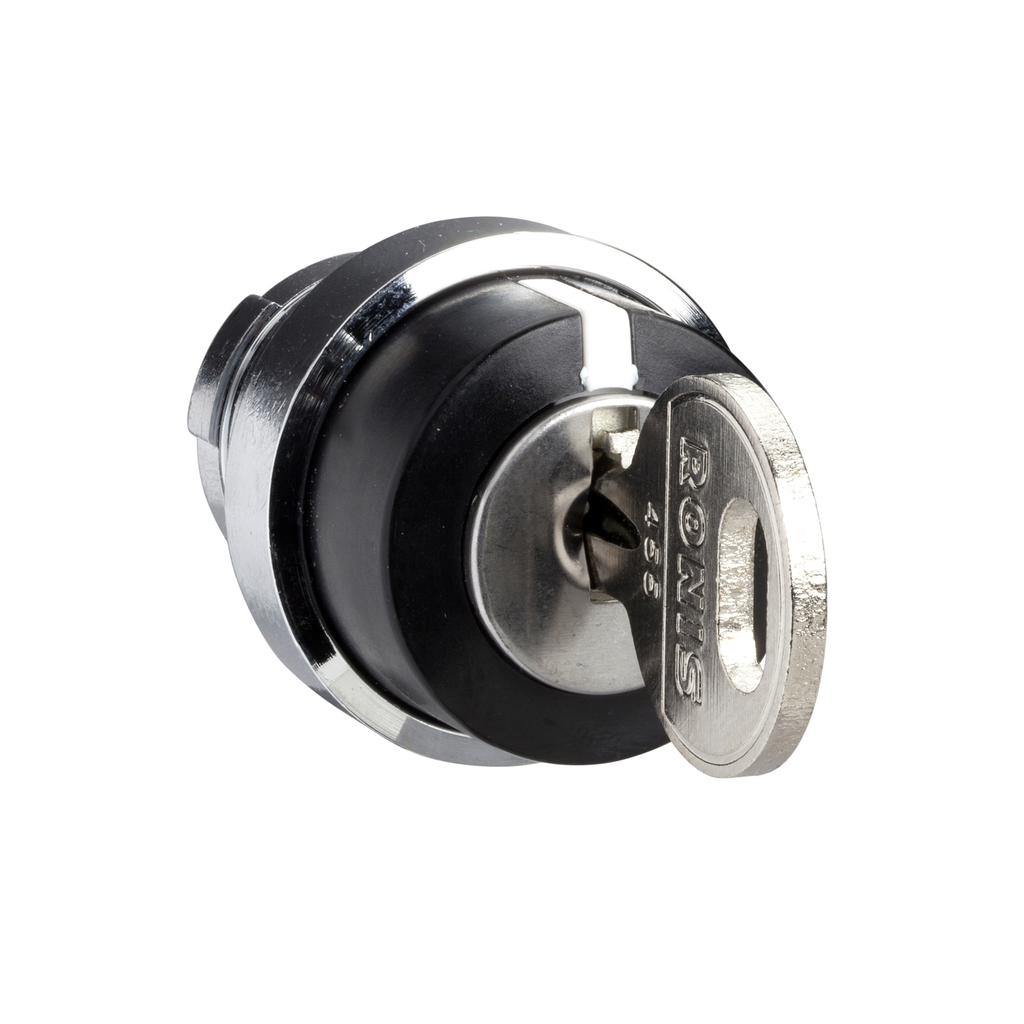

Cam switch operating head, Harmony K, 22mm, metal, circular 29mm, key operated 45 degree, Ronis 455

CAM SWITCH KEYSWITCH

SQDKAXZ1S141 KAXZ1S141 3389110980806
101.09 / EA
http://schema.org/OutOfStock
Mayer-DDS-Cam switch operating head, Harmony K, 22mm, metal, circular 29mm, key operated 45 degree, Ronis 455-1
  • Country of Origin: Czechia
  • Warranty Length: 18 mth
Cam switches (up to 150A)
QTY
  • Features
  • Specifications
  • Type Of Operator
    • key key 455
  • Cam Switch Head Type
    • with bezel Ø 28.5 mm, metal
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
  • Presentation Of Legend
    • with mat black
  • Ip Degree Of Protection
    • IP65 conforming to IEC 529
    • IP65 conforming to NF C 20-010
  • Vibration Resistance
    • 5 gn 10-150 Hz)IEC 68-2-6
  • Shock Resistance
    • 30 gn IEC 68-2-27
  • Product Compatibility
    • front mounting bodies 12 and 20 A Ø 22 mm hole
  • Physical Attributes
    • Cad Overall Depth : 21 mm
    • Cad Overall Height : 29 mm
    • Cad Overall Width : 29 mm
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-13
    • ETIM 10 : EC000222
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1930
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Compatibility Code : KAX
    • Component Name : KAX
    • Mechanical Durability : 1000000 cycles
    • Package Weight Lbs : 67.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : cam switch operating head
    • Protective Treatment : TC
    • Range Of Product : Harmony Series K
    • Returnability : Yes
    • Rotary Handle Padlocking : without
    • Sustainable Packaging : No
    • Switching Angle : 45 °
  • General Attributes
    • Product Or Component Type : cam switch operating head
    • Range Of Product : Harmony Series K
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=675350&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -25-55 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Environmental Disclosure : ENVPEP2312055EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Czechia
