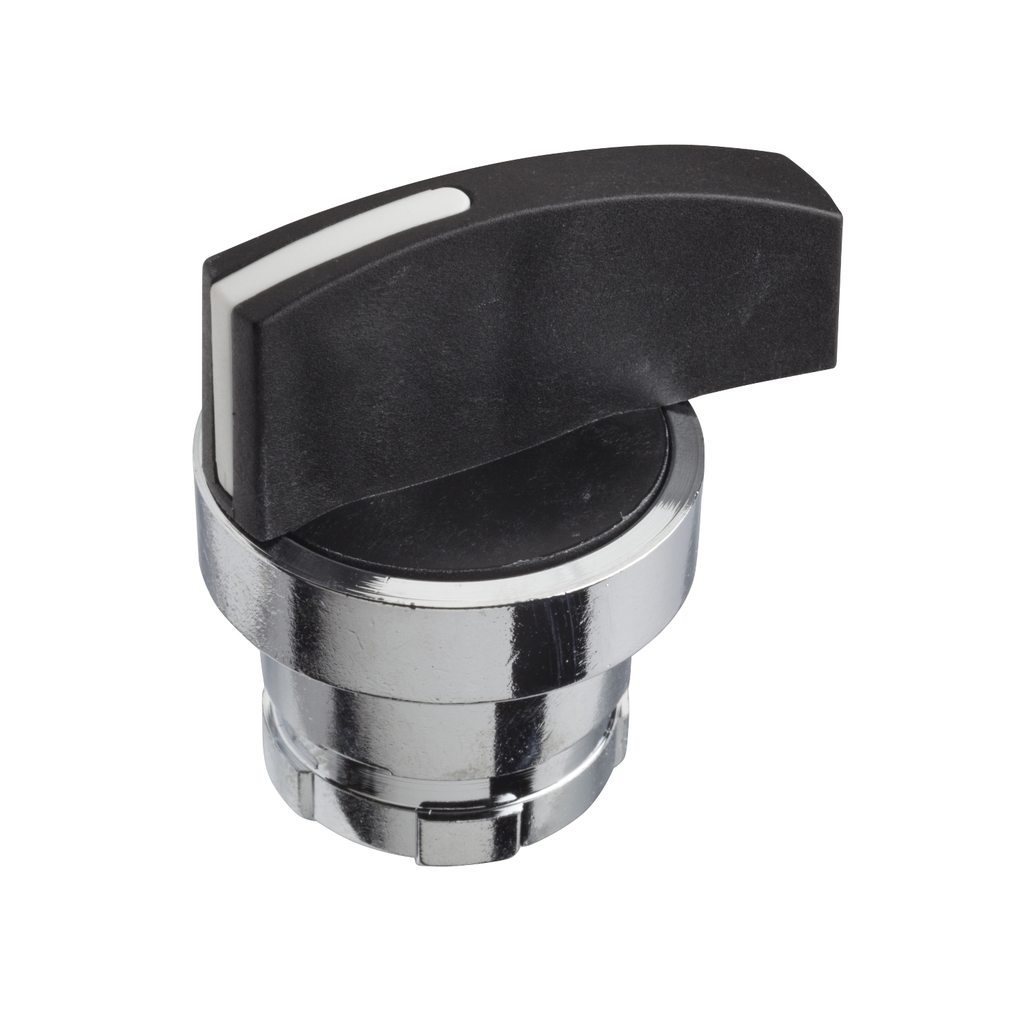

This Harmony KAXZ1C12 is an operating head with bezel diameter 28.5mm, metal, black long handle. It is part of the range Harmony K diameter 16-22mm rotary cam switches.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cad Overall Depth : 25 mm
• Cad Overall Height : 34 mm
• Cad Overall Width : 29 mm
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Cam Switch Head Type : with bezel Ø 28.5 mm, metal, with bezel Ø 28.5 mm, metal, with bezel Ø 28.5 mm, metal
• Shock Resistance : 30 gn IEC 68-2-27, 30 gn IEC 68-2-27
• Type Of Operator : Black long handle, Black long handle
• Vibration Resistance : 5 gn 10-150 Hz)IEC 68-2-6, 5 gn 10-150 Hz)IEC 68-2-6, 5 gn 10-150 Hz)IEC 68-2-6
• Carbon Footprint Of The Distribution Phase A4 : 0.025423970152533847, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.04428984255216606
• Carbon Footprint Of The Installation Phase A5 : 0.006242716813559165, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.7 kg CO2 eq., 0.6628608502559302
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-12-09
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : KAX
• Component Name : KAX
• Package Weight Lbs : 36.0 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : cam switch operating head
• Range Of Product : Harmony Series K
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 0.7 kg CO2 eq.
• Relationship Type : cross-selling relationship
• Pep Code : ENVPEP2312055EN
• Pep Verification Date : 2025-06-30
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : The main purpose of the Harmony K1/K2 series of cam switches is to directly control simple machines and to provide process control in industry and buildings. This voltmeter phase switch offers the maximum mechanical and electrical robustness of its class for prolonged operation without maintenance. Its high IP allows for handling of panel operations in very dusty and wet environments including outdoors.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP65 conforming to IEC 529, IP65 conforming to IEC 529, IP65 conforming to NF C 20-010, IP65 conforming to NF C 20-010
• Product Compatibility : front mounting bodies 12 and 20 A Ø 22 mm hole, front mounting bodies 12 and 20 A Ø 22 mm hole
• Reach Regulation : Free of Substances of Very High Concern above the threshold, Free of Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.7388173797741893
• Environmental Disclosure : ENVPEP2312055EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Pep Code : ENVPEP2312055EN
• Pep Verification Date : 2025-06-30
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : cam switch operating head
• Range Of Product : Harmony Series K
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Presentation Of Legend : with mat black, with mat black
