SQUARE D

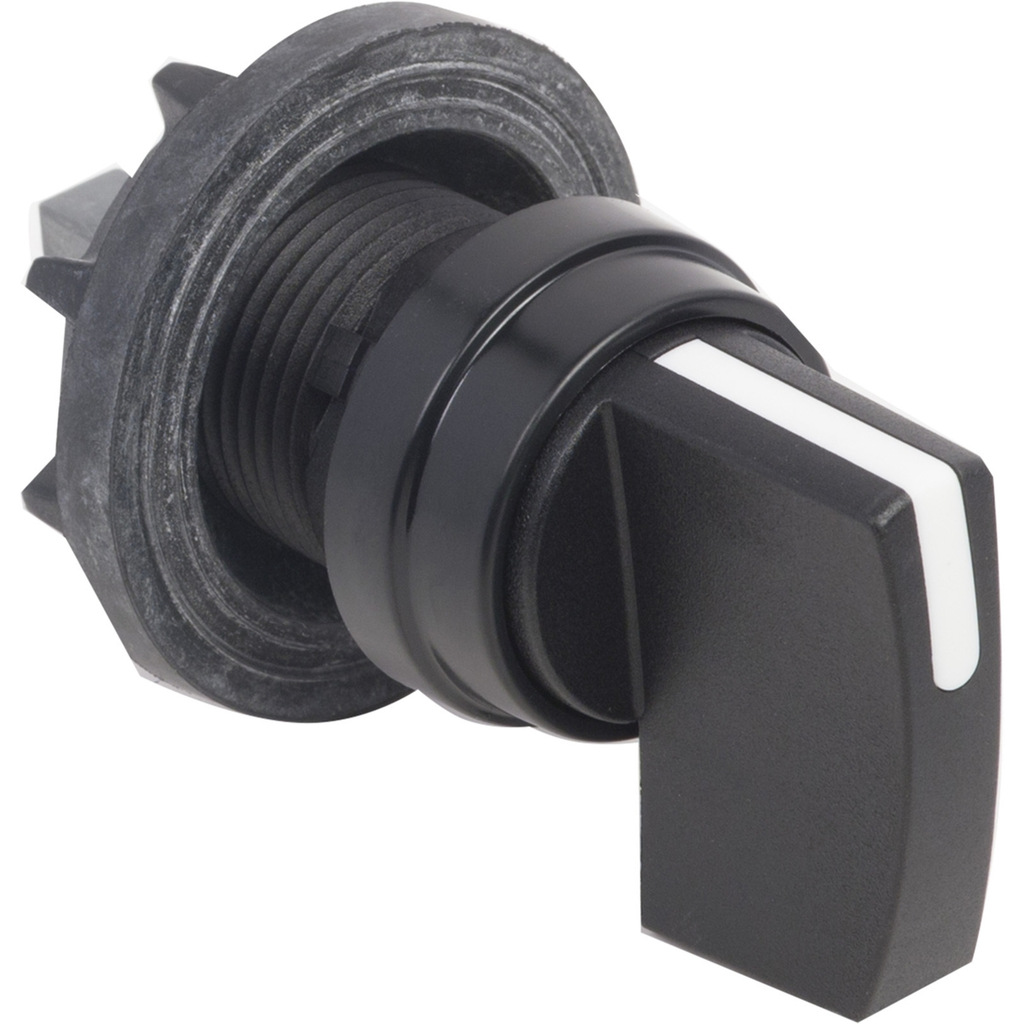

Cam switch operating head, Harmony K1, K2, 22mm, plastic, circular 29mm, mat black, black handle

OPERATOR HANDLE

SQDKAA1H KAA1H 3389110980721
32.39 / EA
http://schema.org/OutOfStock
Mayer-DDS-Cam switch operating head, Harmony K1, K2, 22mm, plastic, circular 29mm, mat black, black handle-1
  • Warranty Length: 18 mth
"This product is part of the Harmony K range, an offer of Ø 16-22mm rotary cam switches." "This cam switch operator head has black handle and 29mm plastic bezel with metallic finish." "It offers mechanical durability of about 1 million cycles. It is an IP65 rated product." "The cam switch operating head dimensions are 29mm (width) x 77mm (depth) x 38mm (height). It weighs 0.042kg." "It is ideal for oil and gas, food and beverage, packaging, kneading trough and vegetable cutting machine applications." "It is compatible with 12A and 20A front mounting bodies." "It is installed into a Ø 22mm panel cutout." "Modular rotary cam switches from 10A to 150A with plastic or metal heads meet most industrial applications."
QTY
  • Product Description
  • Features
  • Specifications
"This product is part of the Harmony K range, an offer of Ø 16-22mm rotary cam switches." "This cam switch operator head has black handle and 29mm plastic bezel with metallic finish." "It offers mechanical durability of about 1 million cycles. It is an IP65 rated product." "The cam switch operating head dimensions are 29mm (width) x 77mm (depth) x 38mm (height). It weighs 0.042kg." "It is ideal for oil and gas, food and beverage, packaging, kneading trough and vegetable cutting machine applications." "It is compatible with 12A and 20A front mounting bodies." "It is installed into a Ø 22mm panel cutout." "Modular rotary cam switches from 10A to 150A with plastic or metal heads meet most industrial applications."
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cad Overall Depth : 77 mm
    • Cad Overall Height : 38 mm
    • Cad Overall Width : 29 mm
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI071103EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • China Rohs Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Cam Switch Head Type : with bezel Ø 29 mm, plastic with metallic finish
    • Compatibility Code : KAA
    • Component Name : KAA
    • Mechanical Durability : 1000000 cycles
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : cam switch operating head
    • Protective Treatment : TC
    • Range Of Product : Harmony Series K
    • Returnability : Yes
    • Rotary Handle Padlocking : without
    • Shock Resistance : 30 gn IEC 68-2-27
    • Sustainable Packaging : No
    • Type Of Operator : Black handle 35 mm
    • Vibration Resistance : 5 gn 10-150 Hz)IEC 68-2-6
    • Pep Code : ENVPEP071103EN
    • Length Total : 35 mm
    • Nbr. Of Units In Pkg. : 1
    • Package Weight(Lbs) : 47.000 g
    • Take-back : No
    • Warranty (In Months) : 18
    • Customs Code : 8538908180
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -25-55 °C, -25-55 °C
    • Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
    • Ip Degree Of Protection : IP65 conforming to IEC 529, IP65 conforming to NF C 20-010
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI071103EN
    • Environmental Disclosure : ENVPEP071103EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : front mounting bodies 12 and 20 A Ø 22 mm hole
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP071103EN
  • General Attributes
    • Product Or Component Type : cam switch operating head
    • Range Of Product : Harmony Series K
  • ETIM
    • ETIM 8 : EC000222
    • ETIM 9 : EC000222
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Brazil, Czechia, France
  • Overview Attributes
    • Presentation Of Legend : with mat black
