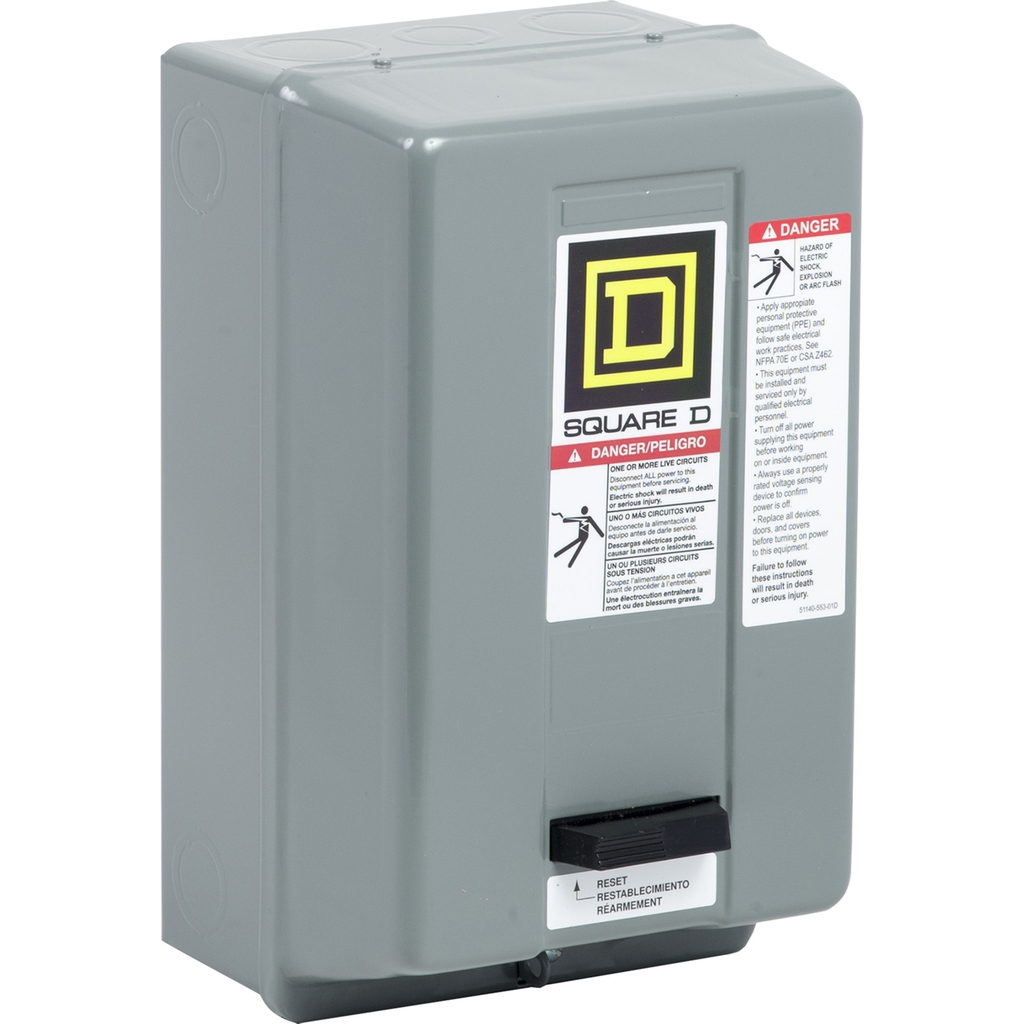

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 00 non-reversing starter has an 9 ampere rating. This NEMA Size 00 motor st

• Uc Control Circuit Voltage
• 110 V AC 50 Hz
• 120 V AC 60 Hz
• Rated Power In Hp
• 1.5 HP 200 V AC
• 1.5 HP 230 V AC
• 2 HP 460 V AC
• 2 HP 575 V AC
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Ue Rated Operational Voltage
• 600 V AC
• Nema Degree Of Protection
• NEMA 1 painted sheet steel
• Accessories
• 9999SC8
• 9999SPL28R
• 9999SPL28G
• 9999SP28R
• 9999SX6
• 9999SX7
• 9999SX8
• 9999ST1
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• Thermal Overload Type
• melting alloy 3
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Product Certifications
• UL Listed
• CSA
• NEMA

• Complementary Attributes
• Control Circuit : separate control circuit
• Line Rated Current : 9 A
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Html Descr : Type S Full Voltage StarterNEMA Size: Size 00Degree of Protection: NEMA 1 General PurposeControl Circuit Voltage: 110V AC 50Hz,120V AC 60HzLine Rated Current: 9APoles Description: 3-PolesNumber of Phases: 3-PhaseCon
• Manufacturer : Schneider Electric
• Baan Price : 981.98
• Baan Currency : USD
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Will not be Compliant
• Rohs Eur Full Compliance Status : Not compliant
• China Rohs In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Control Type : no control units
• Electrical Connection : screw clamp terminals
• Local Signalling : without pilot light
• Motor Starter Type : non reversing
• Package Weight Lbs : 3.357 kg
• Phase : 3 phase
• Poles Description : 3P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : motor starter
• Range Of Product : S
• Returnability : Yes
• Sustainable Packaging : Yes
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : 3 phase
• Product Or Component Type : motor starter
• Range Of Product : S
• Environment Attributes
• Take Back : No
• China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive : Not compliant
• Nema Size : 00
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Height : 10 in
• Width : 5.98 in
• Compliance : TAA
• Depth : 5.55 in
