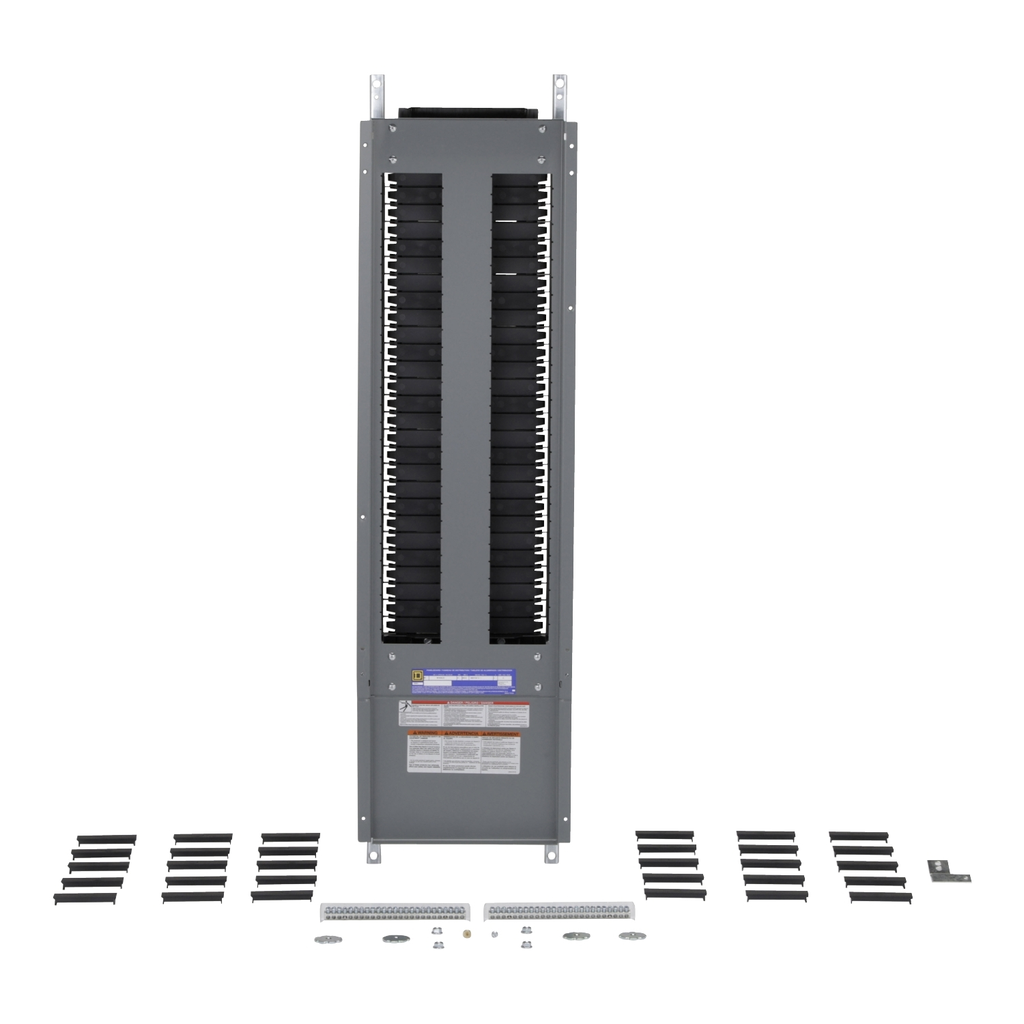

Panelboard interior, NF, main lugs, 250A, Cu bus, Al neutral assembly, 54 pole spaces, 3 phase, 4 wire, 600Y/347VAC max

PANELBOARD INTERIOR NF 250A ML

SQDNF454L2C NF454L2C 785901401209
3137.71 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Panelboard interior, NF, main lugs, 250A, Cu bus, Al neutral assembly, 54 pole spaces, 3 phase, 4 wire, 600Y/347VAC max-2
  • Country of Origin: Mexico
  • Enclosure Height: 56 in
  • Enclosure Width: 20 in
  • Height: 45 in
  • Material: Copper
  • Number of Spaces: 54
  • Warranty Length: 18 mth
  • Width: 10.44 in
NF Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NF Panelboards are versatile panelboards that feature a wide selection of bolt-on branch cir
QTY
  • Product Description
  • Features
  • Specifications
NF Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NF Panelboards are versatile panelboards that feature a wide selection of bolt-on branch cir
  • Connections Terminals
    • lug line AWG 6...350 kcmil aluminium
    • lug neutral AWG 6...350 kcmil aluminium
    • lug neutral AWG 6...350 kc
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm.
  • Carbon Footprint Of The Installation Phase A5
    • 1.3374484735
    • 1 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 38 kg CO2 eq.
    • 37.609161167
  • Standards
    • CSA C22.2
    • UL 67
  • Ue Rated Operational Voltage
    • 600Y/347 V AC
  • Phase
    • 3 phase 4 wires
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 226 kg CO2 eq.
    • 226.1374263229
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 45 kg CO2 eq.
    • 44.7034603503
  • Persona Type Ids
    • EU
    • LC
    • OM
  • Carbon Footprint Of The Distribution Phase A4
    • 4.4454255158
    • 4 kg CO2 eq.
  • Tightening Torque
    • 4.52-5.65 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0)
    • 11.3-11.3 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0)
    • 11.3-11.3 N.m
  • Physical Attributes
    • Enclosure Nominal Height : 56 in
    • Enclosure Nominal Width : 20 in
  • Complementary Attributes
    • Line Rated Current : 250 A
    • Iu Rated Interrupted Current : 65 kA
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-18
    • Manufacturing Carbon Footprint : 226.1374263229
    • Distribution Carbon Footprint : 4.4454255158
    • Installation Carbon Footprint : 1.3374484735
    • Use Carbon Footprint : 44.7034603503
    • End Of Life Carbon Footprint : 37.609161167
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 2532
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Wd Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • H And D Domain : Safety
    • H And D Subrange : COM
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Panel components
    • H And D Enrichment Class 4 : Panelboard interior
    • Circuit Breaker Type : EDB/EDG/EDJ
    • Energy Efficiency Optimized : False
    • Load Center Type : main lugs
    • Material : copper
    • Number Of Spaces : 54
    • Package Weight Lbs : 15.422 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 314 kg CO2 eq.
    • Iu Rated Interrupted Current : 65 kA
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 314.2329218295
  • Environment Attributes
    • Take Back : No
    • Reach Free Shvc : Yes
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 314.2329218295
    • Environmental Disclosure : ENVPEP2303003EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Height : 45 in
    • Width : 10.44 in
