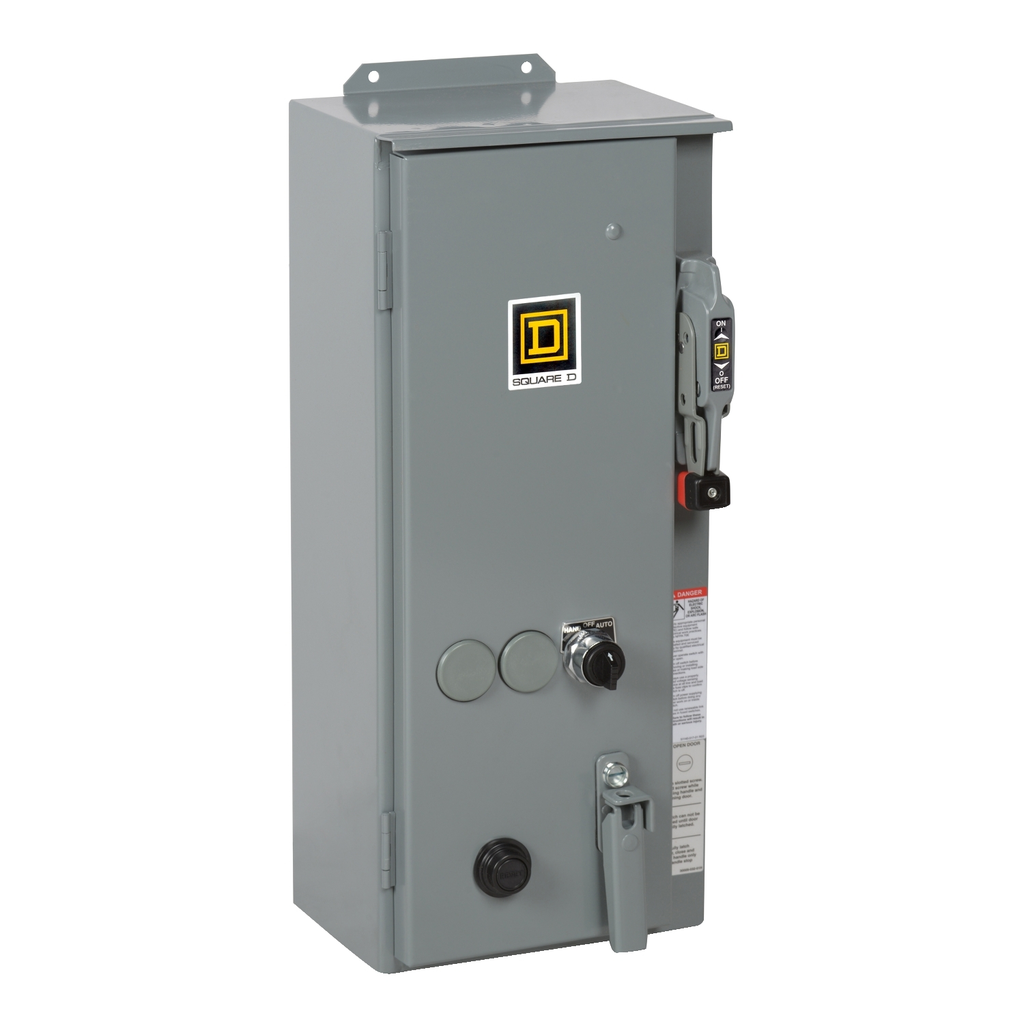

NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, NEMA 12 [TAA]

COMBO STARTER 600VAC 18A NEMA

SQD8538SBA23V81CF4T 8538SBA23V81CF4T 785901019565
2552.06 / EACH
http://schema.org/OutOfStock
Mayer-DDS-NEMA combination starter, Type S, 30A fusible disconnect, Size 0, 18A, 5HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, NEMA 12 [TAA]-1
  • Country of Origin: Mexico
  • Depth: 8.34 in
  • Height: 24 in
  • Warranty Length: 18 mth
  • Width: 9.50 in
Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 0 starters have ratings of up to 5 HP at 480 an
QTY
  • Product Description
  • Features
  • Specifications
Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 0 starters have ratings of up to 5 HP at 480 an
  • Uc Control Circuit Voltage
    • 120 V AC 60 Hz secondary circuit
    • 480 V AC 60 Hz primary circuit
    • 480 V AC 60 Hz primary circui
  • Control Type
    • selector switch HAND-OFF-AUTO)
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Provided Equipment
    • 2 fuses primary circuit
  • Ue Rated Operational Voltage
    • 600 V AC
  • Nema Degree Of Protection
    • NEMA 12 painted sheet steel with external reset
  • Maximum Horse Power Rating
    • 5-5 hp 460 V AC, 3 phase
    • 5-5 hp 575 V AC, 3 phase
  • Disconnector Device Type
    • fusible disconnect switch H, 30 A
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
  • Persona Type Ids
    • EU
    • LC
    • OM
    • OM8
    • PB
  • Thermal Overload Type
    • melting alloy 3
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Product Certifications
    • UL Listed
    • CSA
  • Complementary Attributes
    • Control Circuit : control circuit transformer
    • Line Rated Current : 18 A
  • Important Information Attributes
    • Country Id : US
    • B2B Bullet Point 1 : This product is TAA compliant.
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-17
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Will not be Compliant
    • ROHS Eur Full Compliance Status : Not compliant
    • ROHS Eur Full Compliance Status Id : NOT_COMPLIANT
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Local Signalling : no indicator
    • Motor Starter Type : non reversing
    • Package Weight Lbs : 20.412 kg
    • Poles Description : 3P
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Combination Starter
    • Range Of Product : S
    • Returnability : No
    • Sustainable Packaging : Yes
  • General Attributes
    • Product Or Component Type : Combination Starter
    • Range Of Product : S
  • Environment Attributes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=523175&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Eu Rohs Directive : Not compliant
    • Nema Size : 0
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Height : 24 in
    • Width : 9.50 in
    • Compliance : TAA
    • Depth : 8.34 in
