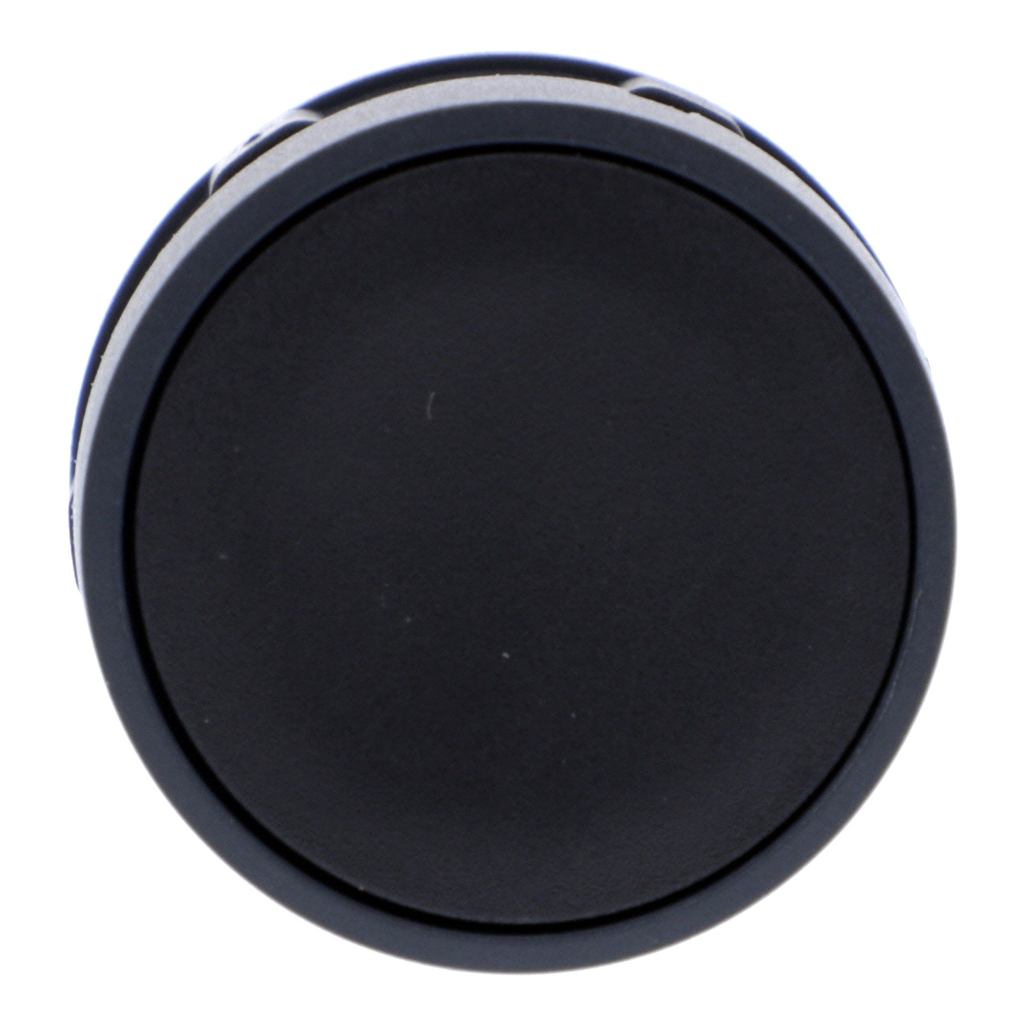

Monolithic push button, Harmony XB7, plastic, black, 22mm, spring return, unmarked, 1NO

PB - SPRING RTN, BLACK - 1NO

SQDXB7NA21 XB7NA21 3606480469886
12.00 / EA
http://schema.org/OutOfStock
  • Country of Origin: USA
  • Height: 29 mm
  • Net Weight: 0.02 kg
  • Warranty Length: 18 mth
  • Weight: 0.02 kg
  • Width: 29 mm
This Harmony XB7, monolithic black push button operates with a spring return / impulse mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony XB7, monolithic black push button operates with a spring return / impulse mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CCC || GOST
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : IEC 60947-5-1 || IEC 60947-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-5-1 || JIS C8201-1
    • Shock Resistance : 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II conforming to IEC 61140
    • Nema Degree Of Protection : NEMA 12 UL 50 E || NEMA 3 UL 50 E
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1805012EN
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Scip Number : a04d4774-6224-4743-8a81-6c194ff09180
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI1805012EN
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 1 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.2310208374
  • Complementary
    • Terminals Description Iso N°1 : (13-14)NO
    • Short-Circuit Protection : 4 A cartridge fuse gG IEC 60947-5-1
    • Fixing Center : >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
    • Positive Opening : with (only NO)
    • Fixing Mode : fixing nut beneath head 2-2.4 N.m
    • Net Weight : 0.02 kg
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV IEC 60947-1
    • Cad Overall Height : 29 mm
    • Electrical Durability : 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
    • [Ui] Rated Insulation Voltage : 250 V 3)IEC 60947-1
    • [Ie] Rated Operational Current : 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
    • Contact Operation : slow-break
    • Mechanical Durability : 1000000 cycles
    • Electrical Reliability : λ <= 10exp(-6) 17 V, 5 mA IEC 60947-5-4
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Cad Overall Width : 29 mm
    • Cad Overall Depth : 52 mm
    • Shape Of Screw Head : cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
    • Device Mounting : fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1
  • Specifications
    • Country of Origin : United States
    • Width : 29 mm
    • Height : 29 mm
    • Weight : 0.02 kg
    • Range Of Product : Harmony XB7
    • Mounting Diameter : 22 mm
    • Type Of Operator : spring return
    • Product Or Component Type : push-button
    • Shape Of Signaling Unit Head : round
    • Ip Degree Of Protection : IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
    • Device Presentation : monolithic product
    • Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
    • Contacts Type And Composition : 1 NO
    • Sale Per Indivisible Quantity : 10
    • Operator Profile : black flush, unmarked
    • Device Short Name : XB7
