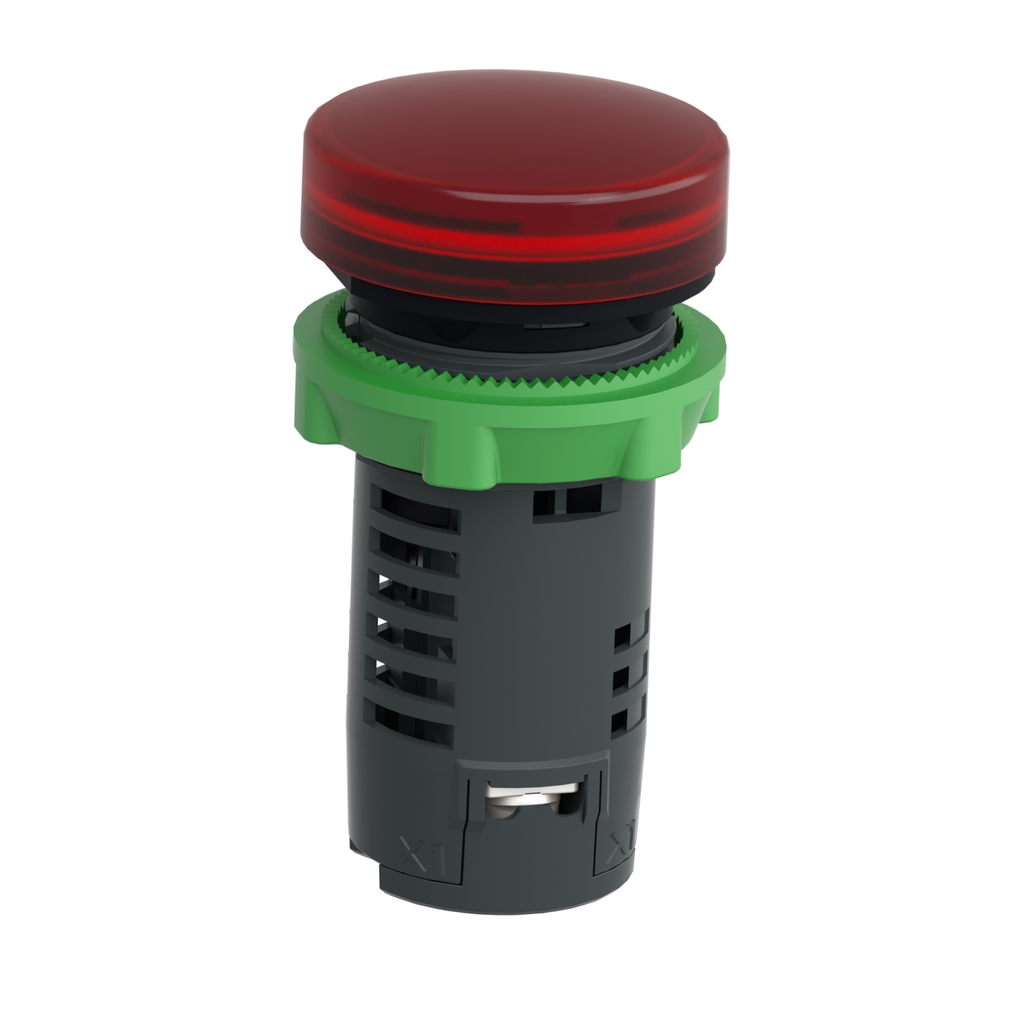

This Harmony XB5, plain lens monolithic red pilot light is supplied with 110V to 120V AC, uses a universal LED and screw clamp terminals. This single component pilot light provides clear visual feedback on the status of your machines. It is easily instal

• Connections Terminals
• screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
• screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60
• Overvoltage Category
• class II conforming to IEC 60536
• Uimp Rated Impulse Withstand Voltage
• 4 kV IEC 60947-1
• Supply Voltage Limits
• 100-132 V AC
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.009326
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0 kg CO2 eq.
• 0.0416353333
• Standards
• UL 508
• IEC 60947-5-4
• IEC 60947-5-1
• CSA C22.2 No 14
• IEC 60947-1
• JIS C8201-5-1
• JIS C8201-1
• Ui Rated Insulation Voltage
• 250 V 3)IEC 60947-1
• Ip Degree Of Protection
• IP66 IEC 60529
• IP67 IEC 60529
• IP69 IEC 60529
• IP69K ISO 20653
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.2 kg CO2 eq.
• 0.18312
• Nema Degree Of Protection
• NEMA 13
• NEMA 4X
• Accessories
• ZB5AZ905
• ZBYP2101
• ZBYLEG503001
• ZBY2101
• Service Life
• 100000 h at rated voltage and 25 °C
• Vibration Resistance
• 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 1 kg CO2 eq.
• 1.3723030777
• Electromagnetic Compatibility
• electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
• electrostatic discharge - test level: 6 kV (on conta
• Resistance To Fast Transients
• 2 kV IEC 61000-4-4
• Surge Withstand
• 1 kV IEC 61000-4-5
• Us Rated Supply Voltage
• 110...120 V AC 50/60 Hz
• Electromagnetic Emission
• class B IEC 55011
• Customizable
• no
• 0
• Resistance To Electrostatic Discharge
• 6 kV on contact (on metal parts) IEC 61000-4-2
• 8 kV in free air (in insulating parts) IEC 61000-4-2
• 8 kV in
• Carbon Footprint Of The Distribution Phase A4
• 0.0031384
• 0 kg CO2 eq.
• Resistance To High Pressure Washer
• 7000000 Pa 55 °C 0.1 m
• Resistance To Electromagnetic Fields
• 10 V/m IEC 61000-4-3
• Shock Resistance
• 50 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 30 gn 11 ms) half sine wave ac
• Product Certifications
• CSA
• UL Listed

• Physical Attributes
• Cap Operator Or Lens Color : red
• Light Source Color : red
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-13
• Etim 10 : EC000272
• Html Descr : Harmony Monolithic Pilot LightMounting Diameter: 22mmShape of Signaling Unit Head: RoundCap/Operator or Lens Color: RedLight Source: Protected LEDBulb Base: Integral LEDRated Supply Voltage: 110-120V AC/DC 50/60 HzC
• Manufacturer : Schneider Electric
• Baan Price : 63.45
• Baan Currency : USD
• Manufacturing Carbon Footprint : 0.18312
• Distribution Carbon Footprint : 0.0031384
• Installation Carbon Footprint : 0.009326
• Use Carbon Footprint : 1.3723030777
• End Of Life Carbon Footprint : 0.0416353333
• Legacy Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308027EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant with Exemptions
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• China Rohs In Scope : Yes
• China Rohs Label : 6
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 1 - GSC certified
• Bezel Material : dark grey plastic
• Bulb Base : integral LED
• Cap Operator Or Lens Color : red
• Compatibility Code : XB5
• Current Consumption : 14 mA
• Device Short Name : XB5
• Fixing Collar Material : plastic
• Head Type : standard
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Light Source : universal LED
• Light Source Color : red
• Mounting Diameter : 22.5 mm
• Operator Additional Information : with plain lens
• Package Weight Lbs : 24.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : pilot light
• Protective Treatment : TH
• Range Of Product : Harmony XB5
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Signalling Type : steady
• Sustainable Packaging : Yes
• Terminals Description Iso N 1 : (X1-X2)PL
• Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 1.6095228111
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : pilot light
• Range Of Product : Harmony XB5
• ETIM
• ETIM 8 : EC000272
• ETIM 9 : EC000272
• Environment Attributes
• Take Back : No
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 1.6095228111
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2308027EN
• Environmental Disclosure : ENVPEP2308027EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Indonesia
• Height : 1.14 in
• Width : 1.14 in
• Depth : 2.13 in
• Overview Attributes
• Device Presentation : monolithic product
