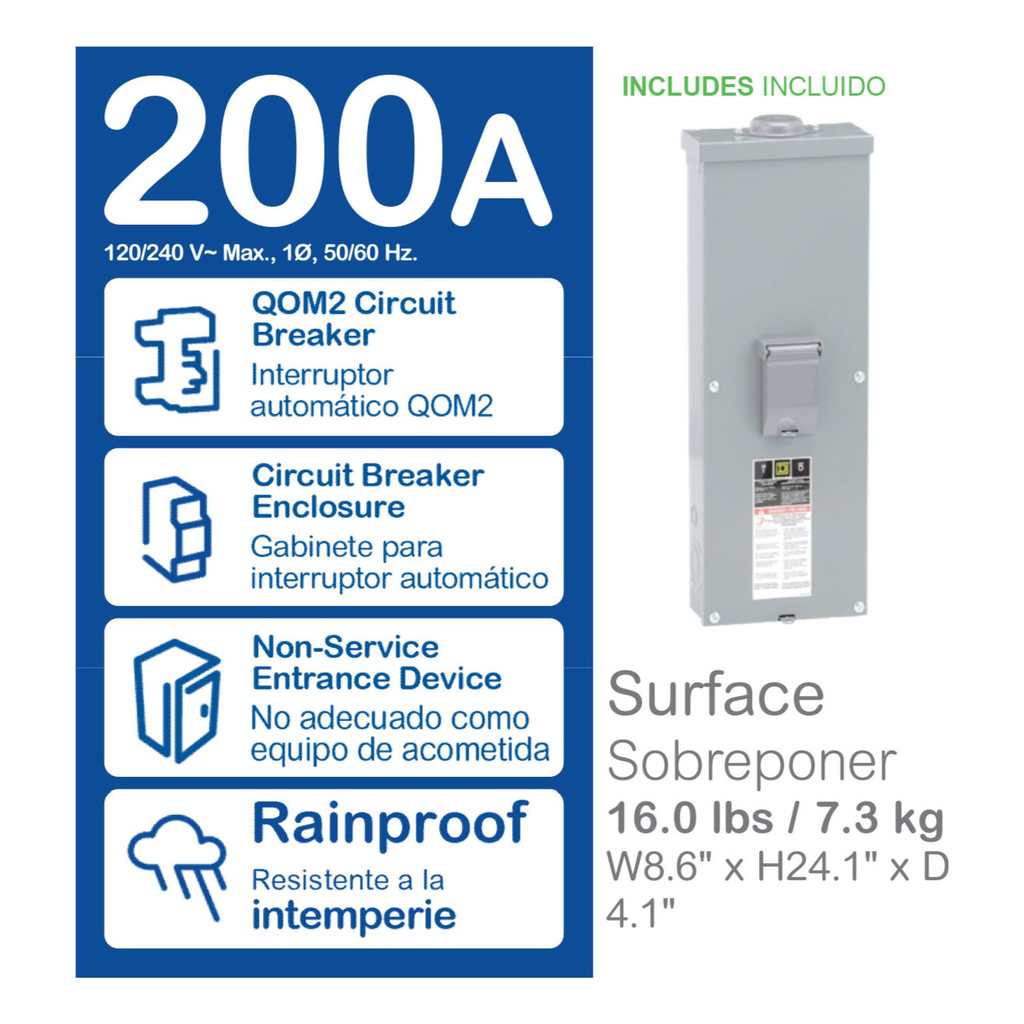

Enclosed circuit breaker, QO, 200A, 2 pole, 120/240VAC, 22kA, bolt on mount, NEMA 3R

ENCLOSED CIRCUIT BRKR 200A 240

SQDQOM2E2200NRB QOM2E2200NRB 785901375302
647.58 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Enclosed circuit breaker, QO, 200A, 2 pole, 120/240VAC, 22kA, bolt on mount, NEMA 3R-2
  • Depth: 104 mm
  • Height: 624 mm
  • Net Weight: 7.371 kg
  • Warranty Length: 18 mth
  • Weight: 7.371 kg
  • Width: 220 mm
Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This enclosed circuit breaker is 2 pole and 200A. It is rated at 120/240VAC and 22kA. This breaker has bolt on mount. The enclosure is rated at NEMA 3R. This product is UL Listed.
QTY
  • Product Description
  • Features
  • Specifications
Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This enclosed circuit breaker is 2 pole and 200A. It is rated at 120/240VAC and 22kA. This breaker has bolt on mount. The enclosure is rated at NEMA 3R. This product is UL Listed.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Specifications
    • Country of Origin : Mexico
    • Width : 220 mm
    • Height : 624 mm
    • Weight : 7.371 kg
    • Range Of Product : QO
    • Product Or Component Type : enclosed circuit breaker
    • Load Center Type : main breaker
    • Device Short Name : QOM2
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1408006EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : N/A
    • Take-Back : No
    • Pvc Free : Yes
    • Global Warming ; Total Life Cycle​ : 26 kg CO2 eq.
    • Eu Rohs Directive : Compliant
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 26.3292164324
  • Complementary
    • Product Certifications : UL Listed
    • Height : 624 mm
    • Phase : 1 phase
    • Net Weight : 7.371 kg
    • Type Of Installation : outdoor
    • Ambient Air Temperature For Operation : 40 °C
    • Poles Description : 2P
    • Line Rated Current : 200 A
    • Width : 220 mm
    • Depth : 104 mm
  • Contractual warranty
    • Warranty : 18 months
