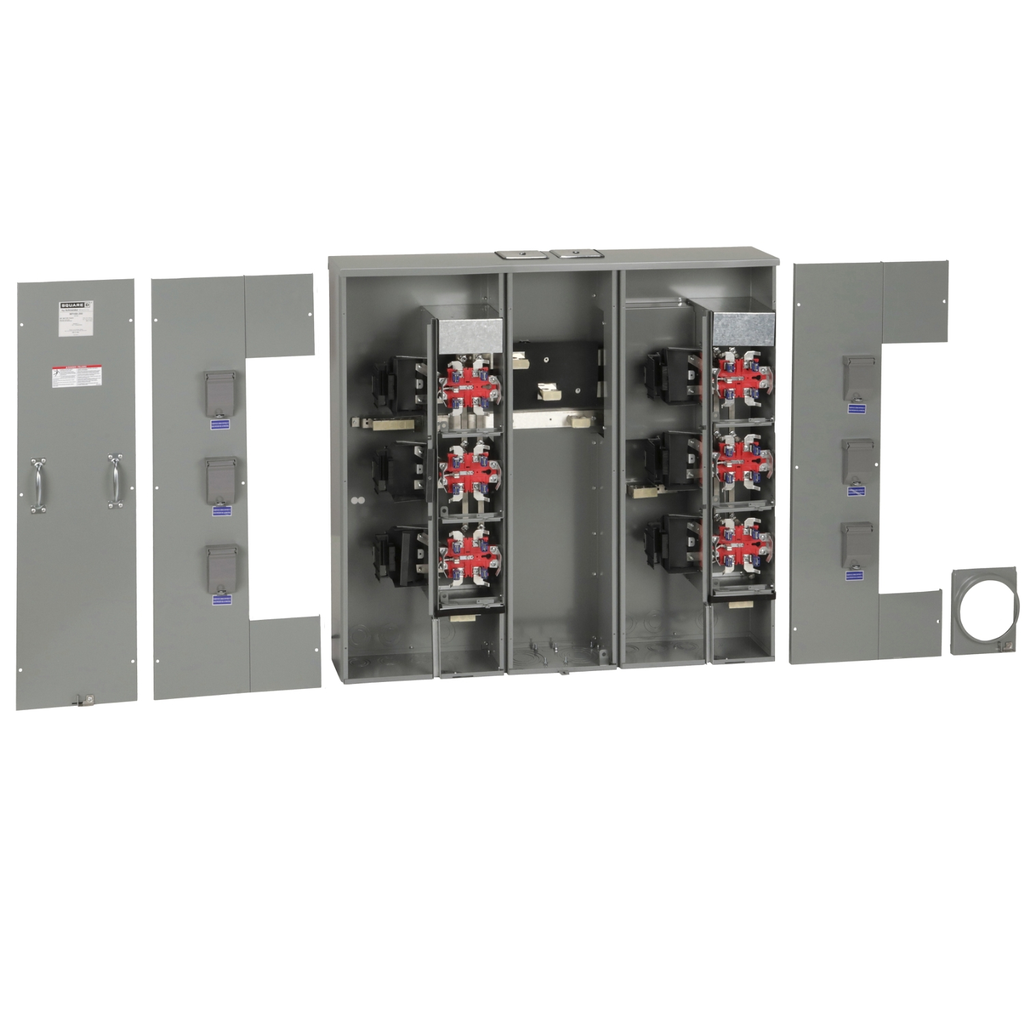

Square D brand MP Meter Pak meter centers offer a wide range of multi metering applications. UL Listed NEMA Type 3R construction meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device creating lighter, more compact bra

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Ue Rated Operational Voltage
• 120/240 V AC
• Material
• aluminium: busbar
• Service Feed Location
• UG
• OH
• Main Rated Current
• 600 A
• 750 A
• Awg Gauge
• AWG 3/0...500 kcmil 2 aluminium
• AWG 3/0...500 kcmil 2 copper

• Conformance Attributes
• Product Certifications : UL Listed
• Complementary Attributes
• Bus Rated Current : 800 A
• Meter Socket Rated Current : 200 A
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-05
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : No
• Traceability : No
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 2532
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : A - SELECTED - PCE ONLY (Migration)
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Meter enclosures
• H And D Enrichment Class 4 : Single-phase multi-tenant meter enclosure
• Enclosure Material : steel
• Energy Efficiency Optimized : False
• Main Type : Main Lugs
• Meter Socket Type : ringless
• Number Of Jaws : 5
• Number Of Meter Sockets : 6
• Package Weight Lbs : 70.307 kg
• Phase : 1 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Mounting : surface
• Product Or Component Type : Meter Center
• Range Of Product : Meter-Pak
• Returnability : Yes
• Sustainable Packaging : No
• Wiring Configuration : 3-wire
• General Attributes
• Phase : 1 phase
• Product Or Component Type : Meter Center
• Range Of Product : Meter-Pak
• Output Attributes
• Bypass Type : horn bypass
• Environment Attributes
• Take Back : No
• China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Eu Rohs Directive : Compliant
• Nema Degree Of Protection : NEMA 3R
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
