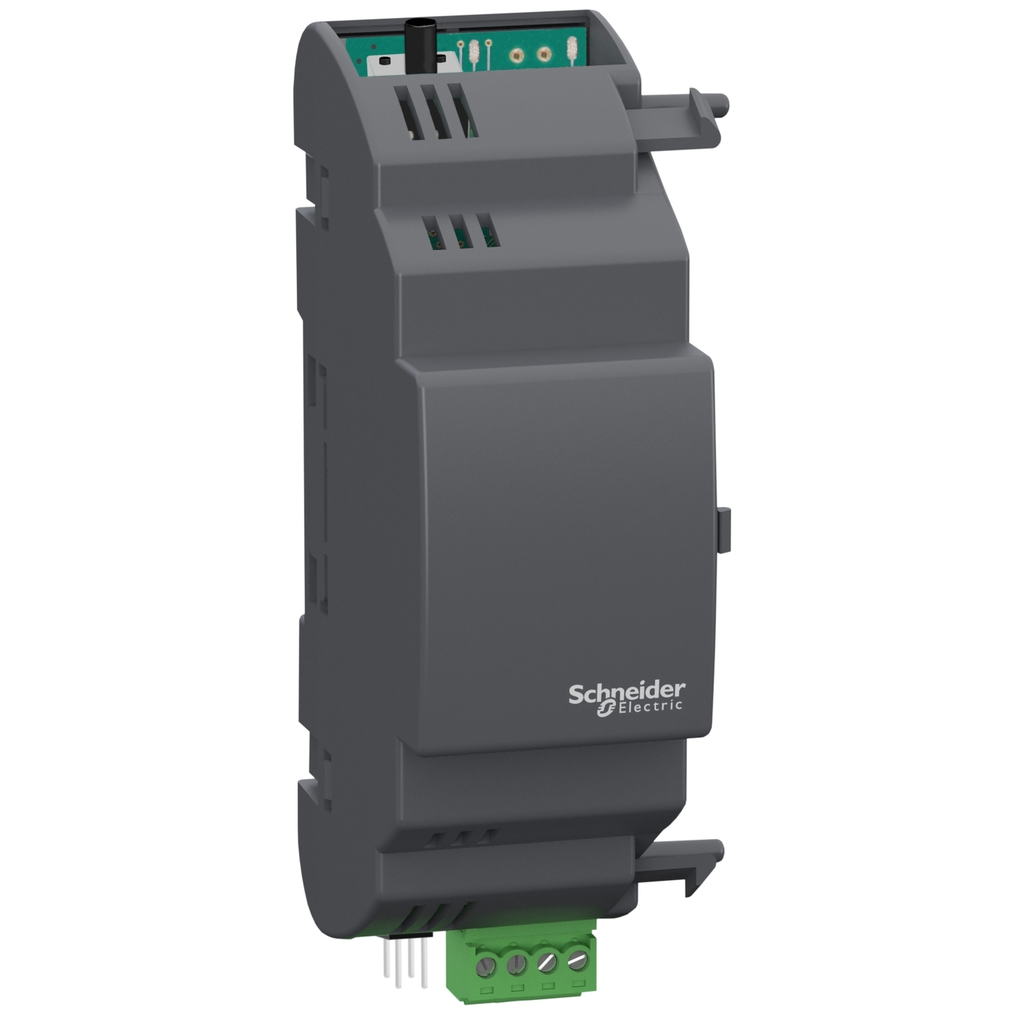

M171 Perf. Plug-in LONWorks

M171 PERF. PLUG-IN LONWORKS

SQDTM171ALON TM171ALON 3606480894909

256.78 / EA

http://schema.org/OutOfStock

Mayer-DDS-M171 Perf. Plug-in LONWorks-1

Country of Origin: Italy
Net Weight: 0.077 kg
Weight: 0.077 kg

QTY

Features
Specifications

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Complementary

Adjustment : pitch 3.81 mm
Physical Interface : 90° insertion - 2.5-2.5 mm² cable
Electrical Connection : removable screw terminal block
Supply : via base board M171P/M172P
Net Weight : 0.077 kg
Integrated Connection Type : LON wire crimp - twisted pair
Transmission Rate : 78 kbits/s
Local Signalling : for service 1 LED (red) || for status 1 LED (green)
Product Compatibility : logic controller M171 performance || logic controller M172 performance

Environment

Product Certifications : EAC || CSA || CE || cURus
Ambient Air Temperature For Operation : -10-55 °C
Marking : CE
Ambient Air Temperature For Storage : -20-85 °C
Relative Humidity : 10-90 % without condensation
Ip Degree Of Protection : IP20

Specifications

Country of Origin : Italy
Weight : 0.077 kg
Range Of Product : Modicon M171/M172
Product Or Component Type : communication module
Communication Port Protocol : LonWorks

Environmental data

Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : No
California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Minimum Percentage Of Recycled Plastic Content : 0
Take-Back : No
