Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, 110…120 V AC, compact push in terminals

LIGHT BLOCK, HARMONY XB5, HARM

SQDZBVG15 ZBVG15 3389119037549
49.88 / EA
http://schema.org/OutOfStock

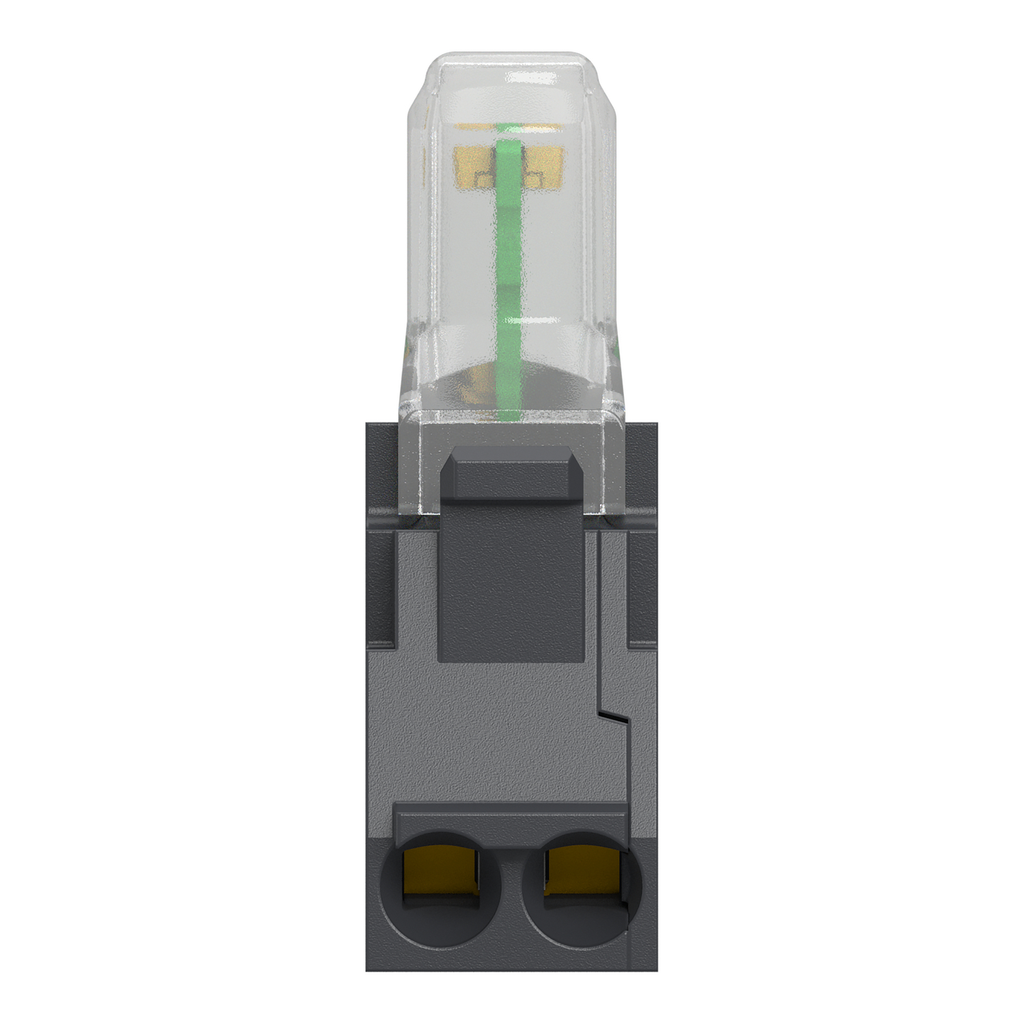

Mayer-DDS-Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, 110…120 V AC, compact push in terminals-2
  • Certifications: CSA, UL Listed
  • Current: 14 mA
  • Net Weight: 0.012 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
QTY
  • Product Description
  • Specifications

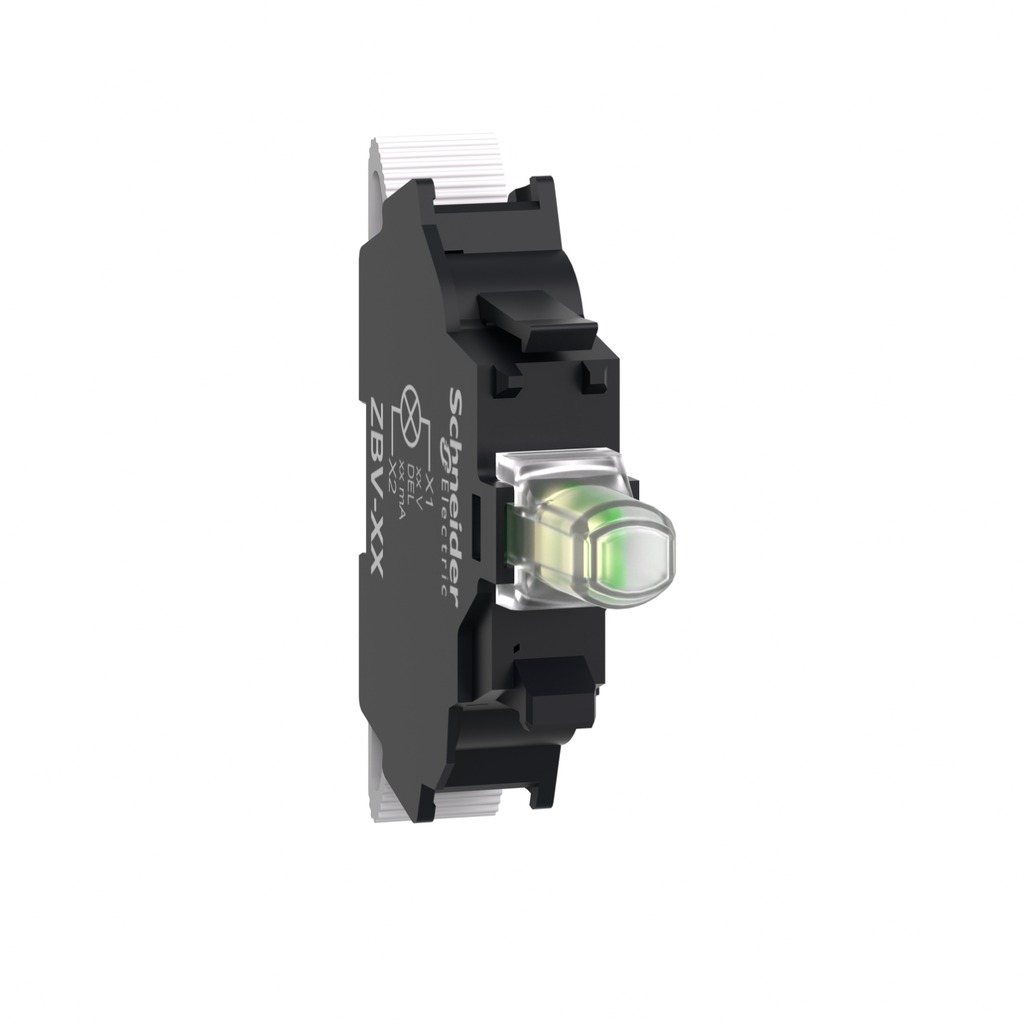

This Harmony ZB, white light block operates with a universal LED. It is supplied with 110V to 120V AC and uses spring terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Environment
    • Product Certifications : CSA || UL Listed
    • [Us] Rated Supply Voltage : 110...120 V
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : CSA C22.2 No 14 || UL 508 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-1 || JIS C8201-1
    • Ip Degree Of Protection : IP20 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Resistance To Electrostatic Discharge : 4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
    • Protective Treatment : TH
    • Electromagnetic Emission : class B IEC 55011
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1808008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Mounting Of Block : front mounting
    • Electrical Composition Code : M1 || M2 || M3 || M4 || M5 || M6 || M10 || MF1 || P1 || P2 || PF1
    • Net Weight : 0.012 kg
    • Cad Overall Height : 14.8 mm
    • Current Consumption : 14 mA
    • Device Presentation : basic element
    • Service Life : 100000 h at rated voltage and 25 °C
    • Surge Withstand : 1 kV differential mode IEC 61000-4-5 || 2 kV common mode
    • Cad Overall Width : 35.6 mm
    • Cad Overall Depth : 9.8 mm
    • Shape Of Screw Head : flat Ø 4 mm
  • Specifications
    • Range Of Product : Harmony XB5 || Harmony XB4
    • Light Source : universal LED
    • Light Block Supply : direct
    • Product Or Component Type : light block
    • Connections - Terminals : push-in, <= 2 x 1.5 mm² with wire end ferrule EN 60947-1 || push-in, >= 1 x 0.34 mm² without wire end ferrule EN 60947-1
    • Sale Per Indivisible Quantity : 5
    • Signalling Type : steady
    • Light Source Colour : white
    • Device Short Name : ZBV
    • [Us] Rated Supply Voltage : 110...120 V AC 50/60 Hz
    • Bulb Base : integral LED
