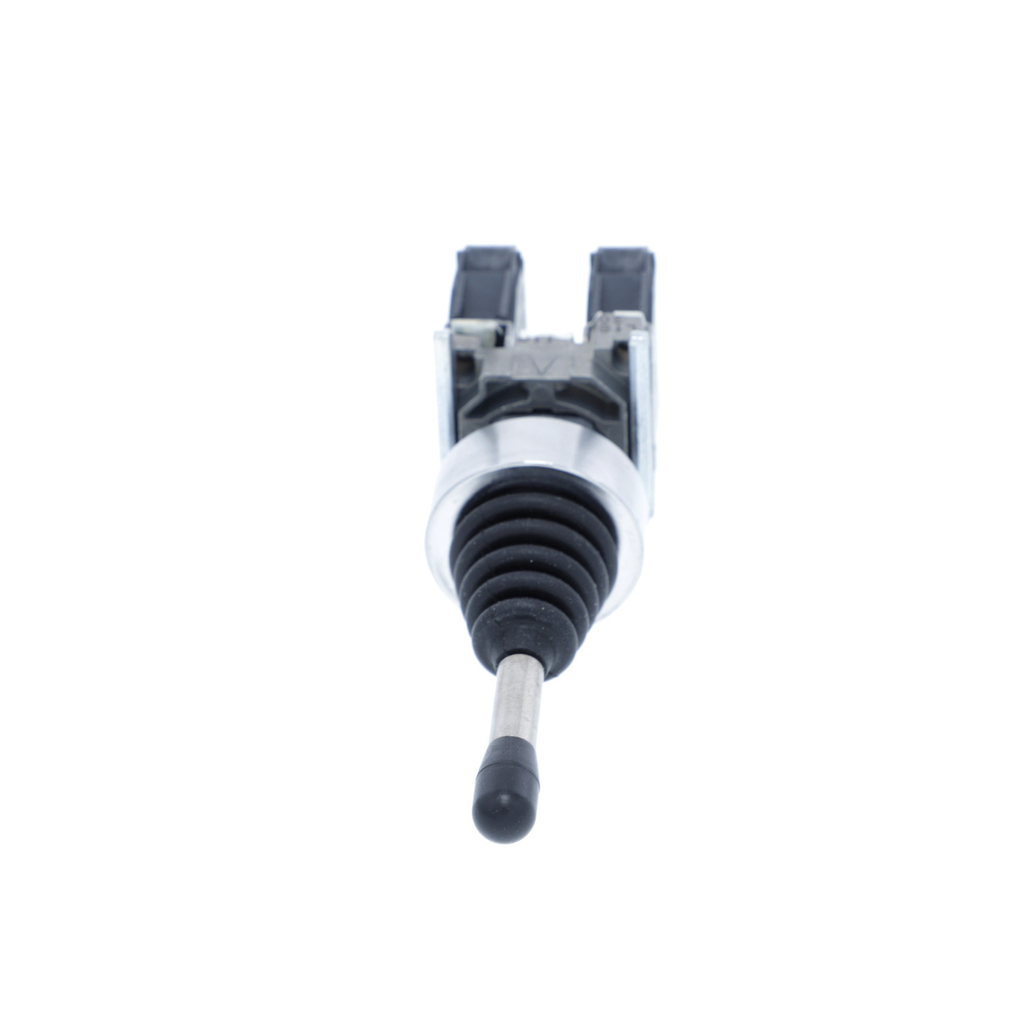

This Harmony XB4, joystick controller operates with 4-direction return-to-center mechanism. It has 4 x NO (1 per direction) contacts and a chromium-plated metal bezel. This joystick provides a versatile and intuitive interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cad Overall Depth : 109 mm
• Cad Overall Height : 46.5 mm
• Cad Overall Width : 30 mm
• Conformance Attributes
• Product Certifications : CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
• Standards : IEC 60947-5-5, UL 508, JIS C8201-5-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-1, CSA C22.2 No 14, JIS C8201-1
• Complementary Attributes
• Ie Rated Operational Current : 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
• Ui Rated Insulation Voltage : 600 V 3)IEC 60947-1
• Uimp Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Bezel Material : chromium plated metal, chromium plated metal
• Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
• Electrical Reliability : λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
• Shape Of Screw Head : cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
• Ie Rated Operational Current : 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
• Carbon Footprint Of The Distribution Phase A4 : 0.03946, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.14104
• Carbon Footprint Of The Installation Phase A5 : 0.018634, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.7 kg CO2 eq., 0.74287
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0.011987
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-26
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2302014EN
• Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Compatibility Code : XD4
• Contact Operation : slow-break
• Contacts Material : silver alloy (Ag/Ni)
• Contacts Type And Composition : 1 NO
• Contacts Usage : standard
• Device Short Name : XD4
• Electrical Shock Protection Class : class I conforming to IEC 60536
• Fixing Collar Material : zamak
• Mechanical Durability : 1000000 cycles
• Mounting Diameter : 22.5 mm
• Notch Per Direction : 1-1
• Operator Direction Information : 2 directions
• Operator Position Information : 3 positions
• Positive Opening : without
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : joystick controller
• Product Repair Index : A
• Protective Treatment : TH
• Range Of Product : Harmony XDA
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Short Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Tightening Torque : 0.8-1.2 N.m IEC 60947-1
• Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
• Type Of Operator : spring return to 0 position, long operating shaft 54 mm
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
• Ith Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
• Warranty In Months : 18
• Operator Pos Information : 3 positions
• Type Of Operator 21 Type Of Operator : spring return
• Pep Code : ENVPEP2302014EN
• Database Version : 2022-01
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : referent product
• Functional Unit Description : This joystick provides a versatile and intuitive interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections with power consumption of 0.004W at active phase 7.2% in a 10-year lifespan and adheres to IEC 60947-5-5 and 60947-5-1 standards.
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Product Weight In G2 : 113
• Reference Lifetime In Y2 : 10
• Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; BR
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; BR
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; BR
• Recyclability Potential In 2 : 42
• Offer Owner Code : 190786
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 2 : 12.923
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 2 : 8.5985
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D 2 : -9.1151
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 2 : 101.71
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 2 : 4.1043
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 2 : 4.644
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 12.923
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 2 : 8.5985
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D 2 : -9.1151
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 2 : 13.208
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 2 : 8.5987
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D 2 : -9.1153
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 0.2848
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 12.514
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 2 : 8.5985
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D 2 : -9.1151
• Environment Attributes Main
• Nema Degree Of Protection : UL type 4X/13, NEMA 13, NEMA 4X
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 0.953991
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2302014EN
• Environmental Disclosure : ENVPEP2302014EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP66 IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2302014EN
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : joystick controller
• Range Of Product : Harmony XDA
• ETIM
• ETIM 8 : EC000632
• ETIM 9 : EC000632
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : complete product
