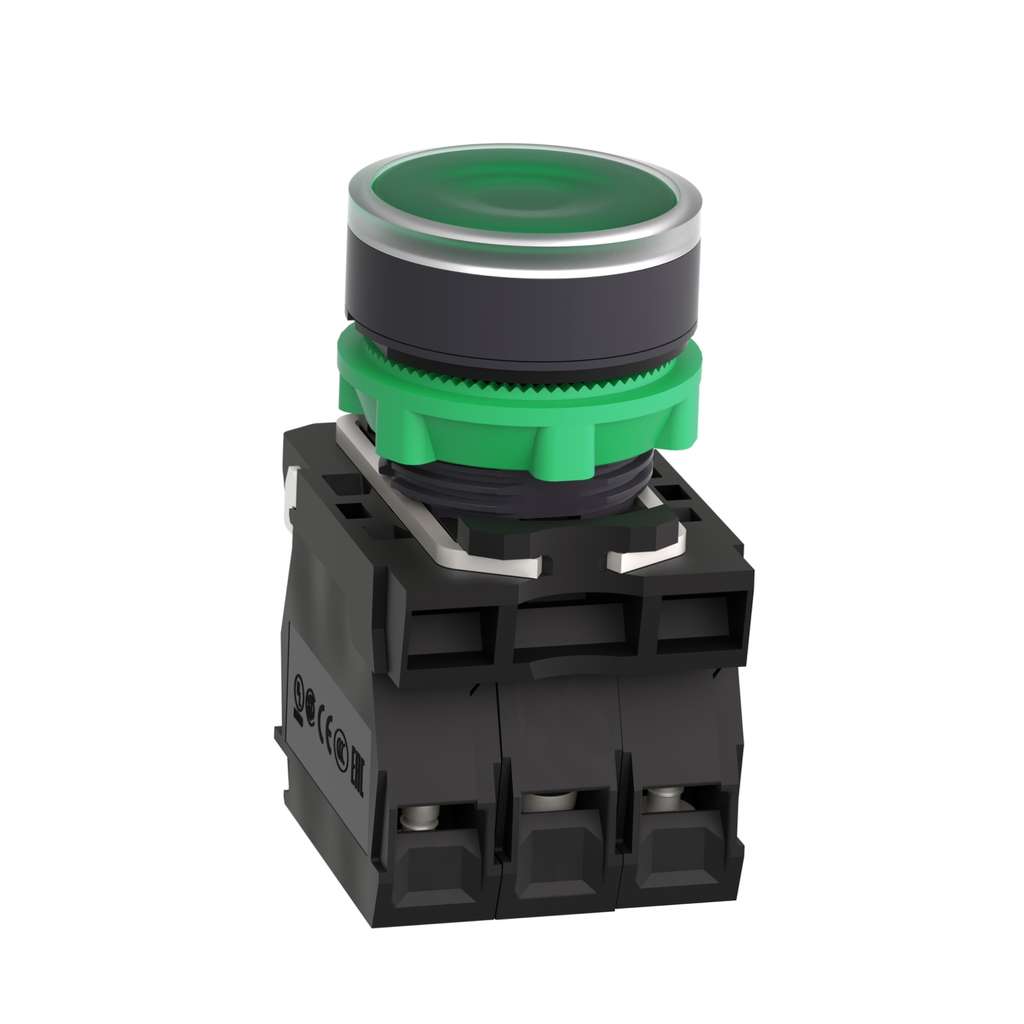

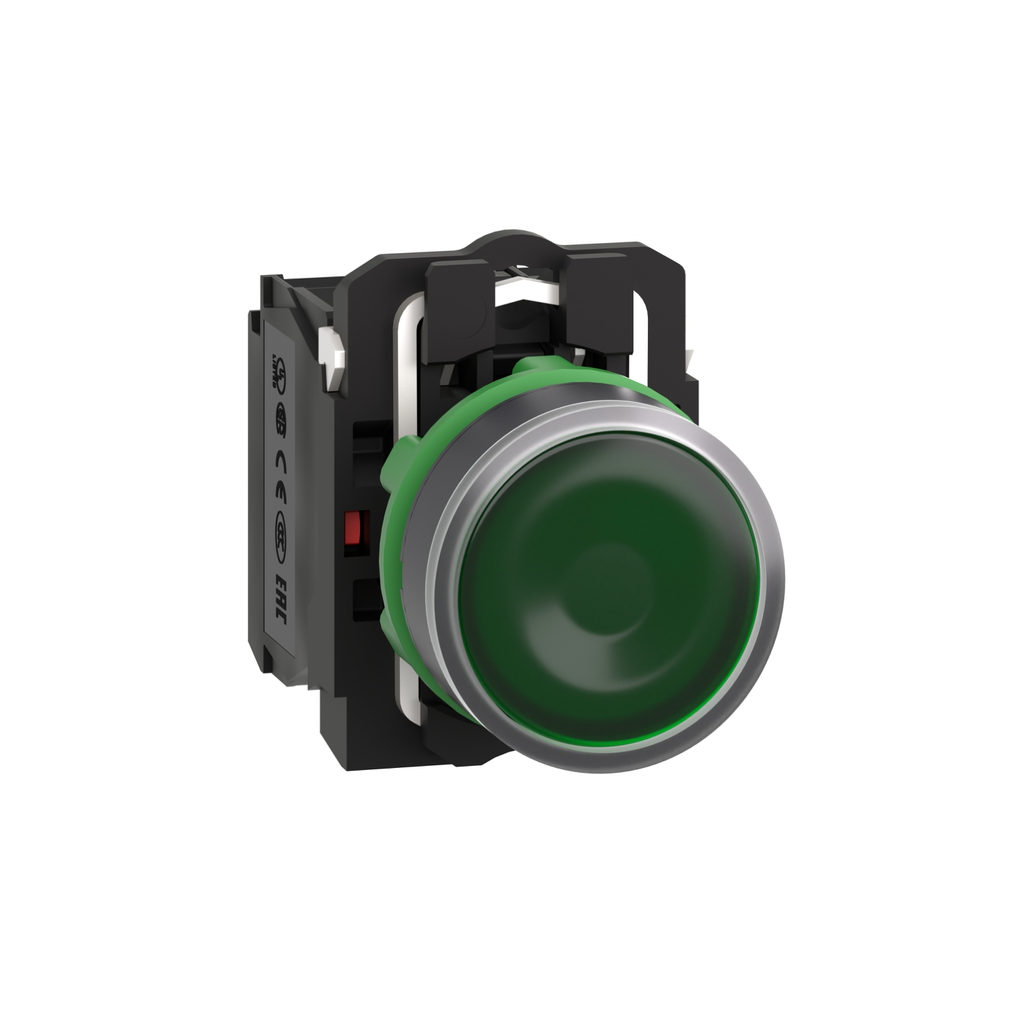

Harmony XB5, Illuminated push button, plastic, flush, green, Ø22, spring return, 24 V AC/DC, 1 NO + 1 NC

Harmony XB5, Illuminated push button, plastic, flush, green, Ø22, spring return, 24 V AC/DC, 1 NO + 1 NC

SQDXB5AW33B5 XB5AW33B5 785901384342
112.82 / EACH
  • Bezel Material: Dark Grey Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Color: Green
  • Contact Material: Silver Alloy
  • Current: 18 mA
  • Depth: 57 mm
  • Height: 42 mm
  • Net Weight: 0.056 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
  • Width: 30 mm
This Harmony XB5, illuminated modular green push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
  • Product Description
  • Specifications
This Harmony XB5, illuminated modular green push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
  • Environment
    • Ik Degree Of Protection : IK05 IEC 50102
    • Product Certifications : UL Listed || GL || CSA || LROS (Lloyds register of shipping) || DNV || BV
    • Protective Treatment : TH
    • Overvoltage Category : class II IEC 60536
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529 || IP69 || IP69K || IP67
    • Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
    • Electromagnetic Emission : class B IEC 55011
    • Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Resistance To Fast Transients : 2 kV IEC 61000-4-4
  • Complementary
    • [Ui] Rated Insulation Voltage : 600 V 3)EN/IEC 60947-1
    • Tightening Torque : 0.8-1.2 N.m EN 60947-1
    • [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Supply Voltage Limits : 19.2-30 V DC || 21.6-26.4 V AC
    • Electrical Reliability : λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
    • Maximum Height : 42 mm
    • Positive Opening : with EN/IEC 60947-5-1 appendix K
    • Contacts Material : silver alloy (Ag/Ni)
    • Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
    • Net Weight : 0.056 kg
    • Surge Withstand : 1 kV IEC 61000-4-5
    • [Ith] Conventional Free Air Thermal Current : 10 A EN/IEC 60947-5-1
    • Operating Force : 3.5 N NC changing electrical state || 3.8 N
    • Operating Travel : 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
    • Current Consumption : 18 mA
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV EN/IEC 60947-1
    • Mechanical Durability : 10000000 cycles
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
    • Service Life : 100000 h at rated voltage and 25 °C
    • Terminals Description Iso N°1 : (21-22)NC || (13-14)NO
    • Maximum Width : 30 mm
    • Contacts Usage : standard contacts
    • Signalling Type : steady
    • Short-Circuit Protection : 10 A cartridge fuse gG EN/IEC 60947-5-1
    • Device Presentation : complete product
    • Maximum Depth : 57 mm
  • Mounting Diameter : 22 mm
  • Contact Operation : slow-break
  • Type Of Operator : spring return
  • Product Or Component Type : illuminated push-button
  • [Us] Rated Supply Voltage : 24 V
  • Bezel Material : dark grey plastic
  • [Us] Rated Supply Voltage : 24 V AC/DC 50/60 Hz
  • Operator Profile : green flush, unmarked
  • Range Of Product : Harmony XB5
  • Shape Of Signaling Unit Head : round
  • Cap/Operator Or Lens Colour : green
  • Sale Per Indivisible Quantity : 1
  • Bulb Base : integral LED
  • Operator Additional Information : with plain lens
  • Device Short Name : XB5
  • Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
  • Contacts Type And Composition : 1 NO + 1 NC
  • Fixing Collar Material : plastic
  • Light Source : protected LED
  • Head Type : standard
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Circularity Profile : ENVEOLI1710010EN
    • Rohs Exemption Information : Yes
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Environmental Disclosure : ENVPEP1710010EN
    • Sustainable Offer Status : Green Premium product
