SQUARE D

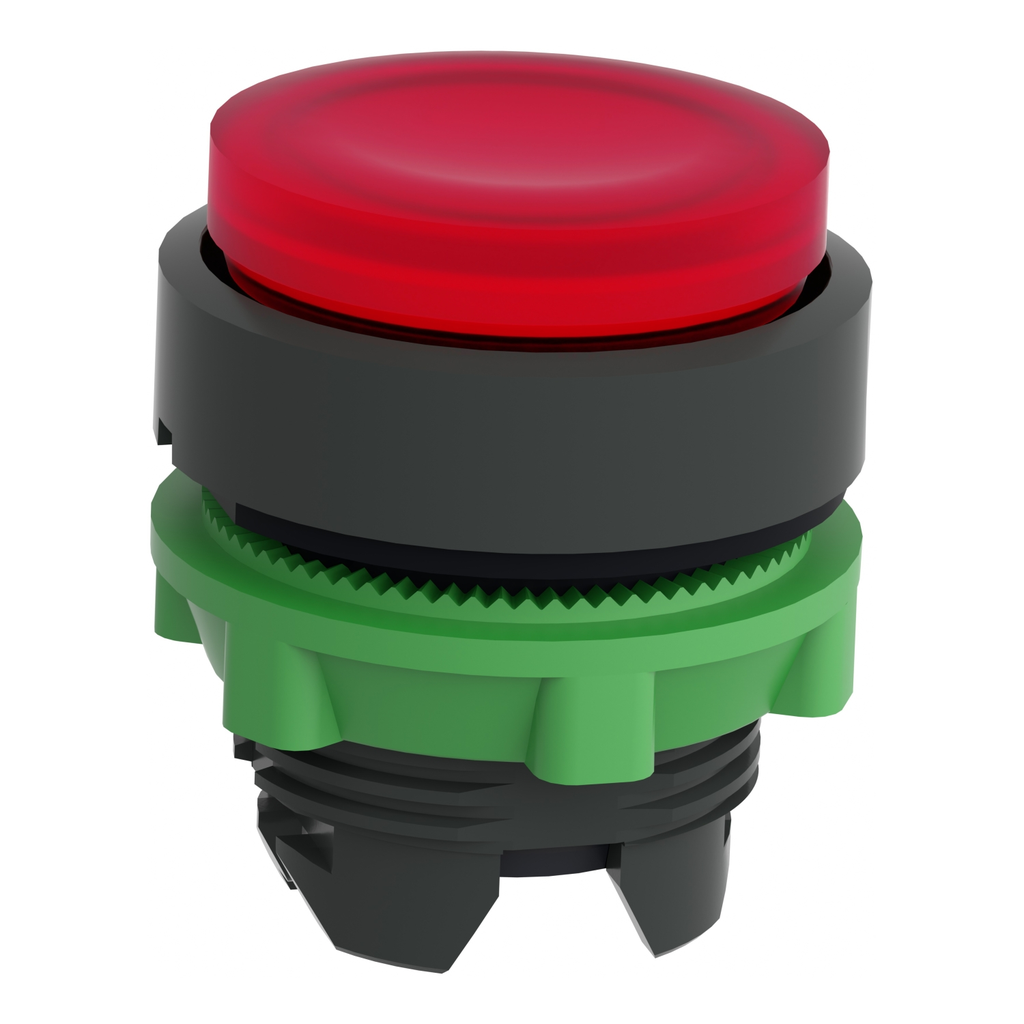

Harmony XB5, Illuminated push button head, plastic, projecting, red, Ø22, spring return, plain lens integral LED

RED PUSH BUTTON HEAD

SQDZB5AW143 ZB5AW143 785901355250
12.33 / EACH
  • Bezel Material: Dark Grey Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Color: Red
  • Net Weight: 0.018 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This red projecting illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is also distinguishable by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Product Description
  • Specifications
This red projecting illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is also distinguishable by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Cad Overall Depth : 33 mm
    • Net Weight : 0.018 kg
    • Cap/Operator Or Lens Colour : red
    • Device Presentation : basic sub-assemblies
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Cad Overall Width : 29 mm
    • Main Group : illum push-button
    • Group Of Product : proj push integral LED
    • Cad Overall Height : 29 mm
    • Mechanical Durability : 10000000 cycles
    • Marking : unmarked
  • Offer Sustainability
    • China Rohs Regulation : X
    • Environmental Disclosure : ENVPEP1710010EN
    • Sustainable Offer Status : Green Premium product
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Circularity Profile : ENVEOLI1710010EN
  • Head Type : standard
  • Bezel Material : dark grey plastic
  • Device Short Name : ZB5
  • Sale Per Indivisible Quantity : 1
  • Product Or Component Type : head for illuminated push-button
  • Shape Of Signaling Unit Head : round
  • Product Compatibility : integral LED
  • Range Of Product : Harmony XB5
  • Operator Additional Information : with plain lens
  • Operator Profile : red projecting, unmarked
  • Type Of Operator : spring return
  • Mounting Diameter : 22 mm
  • Environment
    • Ik Degree Of Protection : IK05 EN 50102
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Overvoltage Category : class II IEC 60536
    • Product Certifications : CSA || UL Listed || LROS (Lloyds register of shipping) || BV || GL || DNV
    • Ambient Air Temperature For Operation : -40-70 °C
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ambient Air Temperature For Storage : -40-70 °C
    • Protective Treatment : TC
    • Ip Degree Of Protection : IP66 IEC 60529 || IP69 || IP69K
