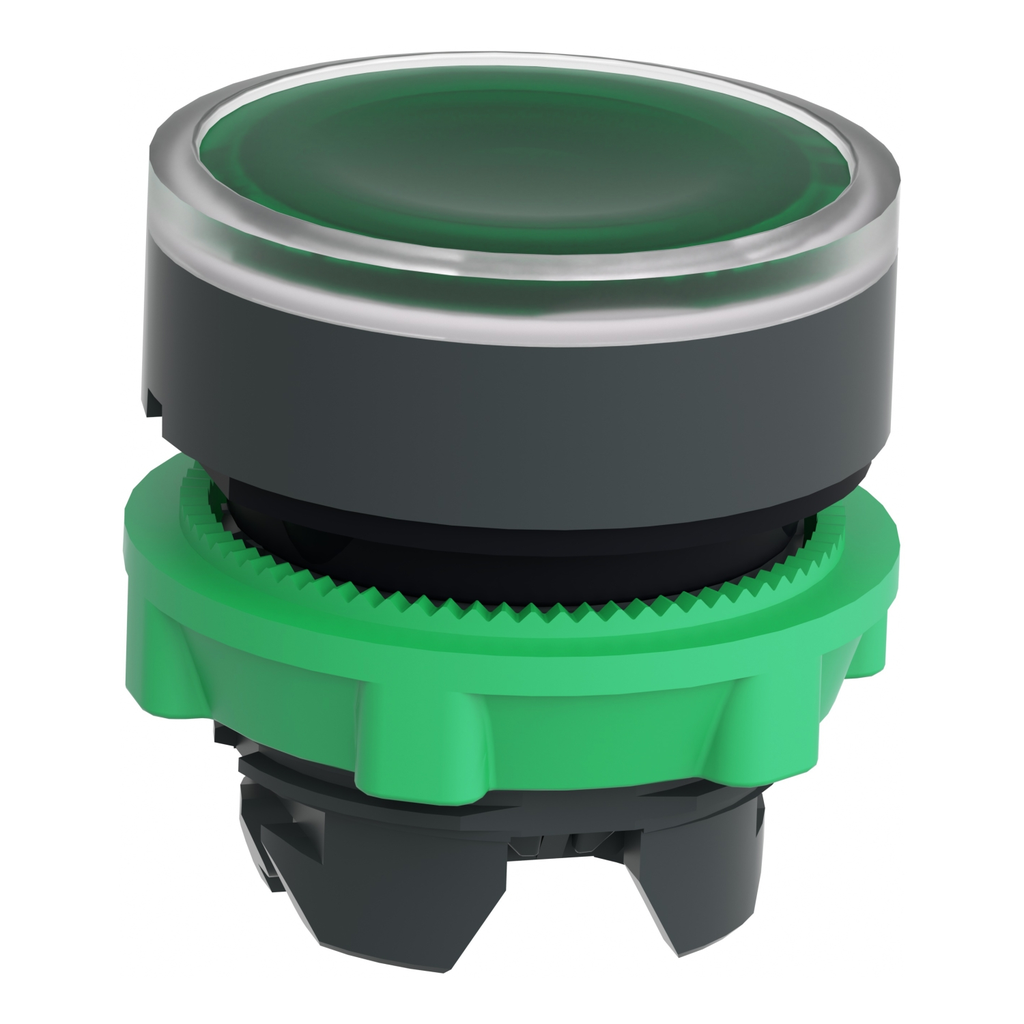

Harmony XB5, Illuminated push button head, plastic, flush, green, Ø22, spring return, plain lens integral LED

Harmony XB5, Illuminated push button head, plastic, flush, green, Ø22, spring return, plain lens integral LED

SQDZB5AW333 ZB5AW333 785901374640
17.64 / EACH
  • Bezel Material: Dark Grey Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Color: Green
  • Net Weight: 0.017 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony XB5, plain lens illuminated green flush head for integral LED operates with a spring return / impulse mechanism. This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
  • Product Description
  • Specifications
This Harmony XB5, plain lens illuminated green flush head for integral LED operates with a spring return / impulse mechanism. This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
  • Head Type : standard
  • Device Short Name : ZB5
  • Shape Of Signaling Unit Head : round
  • Operator Additional Information : with plain lens
  • Type Of Operator : spring return
  • Operator Profile : green flush, unmarked
  • Range Of Product : Harmony XB5
  • Product Or Component Type : head for illuminated push-button
  • Product Compatibility : integral LED
  • Mounting Diameter : 22 mm
  • Bezel Material : dark grey plastic
  • Sale Per Indivisible Quantity : 1
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Environmental Disclosure : ENVPEP1710010EN
    • Reach Free Of Svhc : Yes
    • Circularity Profile : ENVEOLI1710010EN
    • Mercury Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Rohs Exemption Information : Yes
    • Sustainable Offer Status : Green Premium product
  • Complementary
    • Mechanical Durability : 10000000 cycles
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
    • Device Presentation : basic sub-assemblies
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Cad Overall Depth : 30 mm
    • Net Weight : 0.017 kg
    • Marking : unmarked
    • Cap/Operator Or Lens Colour : green
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Main Group : illum push-button
    • Cad Overall Width : 29 mm
    • Group Of Product : flush push integral LED
    • Cad Overall Height : 29 mm
  • Environment
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Product Certifications : GL || DNV || LROS (Lloyds register of shipping) || BV || CSA || UL Listed
    • Ik Degree Of Protection : IK05 EN 50102
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Protective Treatment : TC
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Overvoltage Category : class II IEC 60536
    • Ambient Air Temperature For Storage : -40-70 °C
