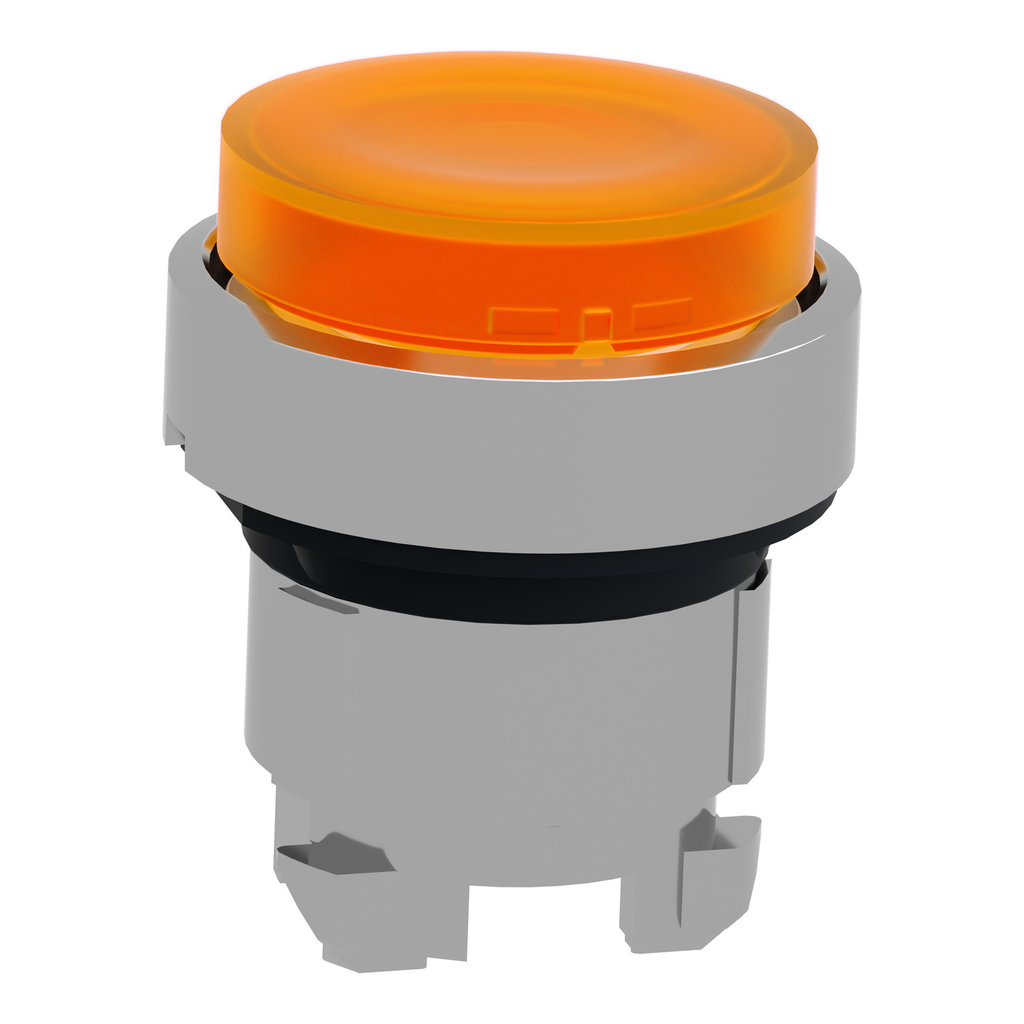

Harmony XB4, Illuminated push button head, metal, projecting, orange, Ø22, spring return, plain lens integral LED

Harmony XB4, Illuminated push button head, metal, projecting, orange, Ø22, spring return, plain lens integral LED

SQDZB4BW153 ZB4BW153 785901353911
12.35 / EACH
  • Bezel Material: Chromium Plated Metal
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Net Weight: 0.029 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony XB4, plain lens illuminated projecting orange button head operates with a spring return / impulse mechanism. This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
  • Product Description
  • Specifications
This Harmony XB4, plain lens illuminated projecting orange button head operates with a spring return / impulse mechanism. This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
  • Complementary
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
    • Cad Overall Height : 29 mm
    • Mechanical Durability : 10000000 cycles
    • Cad Overall Width : 29 mm
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Device Presentation : basic sub-assemblies
    • Cad Overall Depth : 33 mm
    • Net Weight : 0.029 kg
  • Type Of Operator : spring return
  • Bezel Material : chromium plated metal
  • Operator Additional Information : with plain lens
  • Mounting Diameter : 22 mm
  • Product Or Component Type : head for illuminated push-button
  • Head Type : standard
  • Range Of Product : Harmony XB4
  • Sale Per Indivisible Quantity : 1
  • Shape Of Signaling Unit Head : round
  • Product Compatibility : integral LED
  • Operator Profile : orange projecting, unmarked
  • Device Short Name : ZB4
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Circularity Profile : ENVEOLI1808008EN
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Rohs Exemption Information : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Reach Free Of Svhc : Yes
    • Sustainable Offer Status : Green Premium product
    • Environmental Disclosure : ENVPEP1808008EN
    • Toxic Heavy Metal Free : Yes
  • Environment
    • Ip Degree Of Protection : IP66 IEC 60529 || IP69 || IP69K
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Protective Treatment : TH
    • Ambient Air Temperature For Operation : -40-70 °C
    • Overvoltage Category : class I IEC 60536
    • Product Certifications : UL Listed || BV || CSA || LROS (Lloyds register of shipping) || GL || DNV
    • Standards : EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || JIS C8201-1
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ik Degree Of Protection : IK05 EN 50102
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ambient Air Temperature For Storage : -40-70 °C
